| Prod Model: |
ML-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Imprinting Type: |
Platen |
| Placing Form Of Template: |
Horizontal |
| Die Cutting Tool: |
Steel Blade |
| Automatic Grade: |
Semi-Automatic |
| Application: |
Dust-proof Material |
Product Description

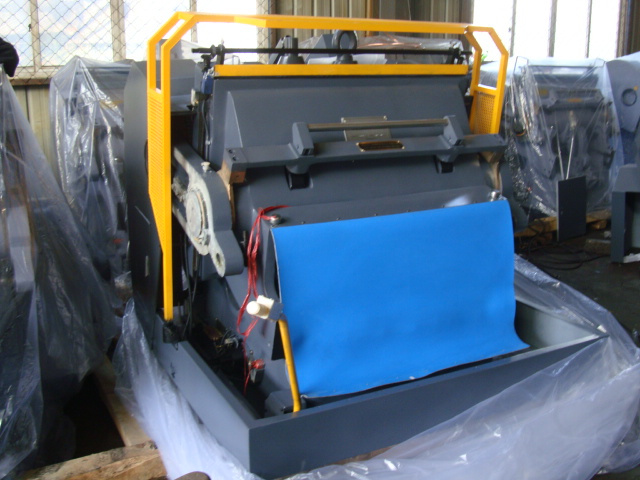

Creasing And Die Cutting Machine
The die cutting and creasing machine is an equipment especially designed for die cutting the ordinary cardboard, corrugated board, plastic and leather products. It is widely used in the printing, packing decorating and plastic industries. The machine has features such as compact structure, fine workmanship, big pressure, high precision and easy and reliable operation etc.
Feature:
1. High strength due to one piece casting by using top quality materials for the machine body.
2. Smooth running, big pressure and low noise are obviously remarked as herringbone gear input and helical gear output mechanism is adopted.
3. Single plate electromagnetic clutch is sensitive and reliable.
4. Operational altitude is reasonably arranged, moveable platen opens to its optimum.
5. The electrical system is designed with IEC standard.
6. With functions as single, continuous operation and opening well, and the dwell time is adjustable.
7. The safely system is reliable.
8. With concentrated lubricating system.
| ModeI | Inner Chase size | Speed | Max.pule length | Motor Power | Weight | Overall Dimensions |
| ML-750 | 750x520mm | 25±2(sprokes/min) | <14m | 2.2kw | 1800kg | 1360x1400x1300mm |
| ML-930 | 930x670mm | 23±2(sprokes/min) | <25m | 4kw | 3000kg | 1680x1680x1640mm |
| ML-1040 | 1040x720mm | 23±2(sprokes/min) | <30m | 4kw | 4000kg | 1850x1780x1700mm |
| ML-1100 | 1100x800mm | 20±2(sprokes/min) | <26.5m | 4kw | 4500kg | 1900x1780x1700mm |
| ML-1200 | 1200X820mm | 20±2(sprokes/min) | <26.5m | 4kw | 4500kg | 1900x1900x1750mm |
| ML-1300 | 1300x920mm | 18±2(sprokes/min) | <38m | 5.5kw | 5600kg | 1920x2140x1800mm |
| ML-1400 | 1400x1000mm | 17±2(sprokes/min) | <38m | 5.5kw | 6200kg | 2010x2400x1930mm |
| ML-1500 | 1500x1050mm | 17±2(sprokes/min) | <40m | 7.5kw | 6800kg | 20100x2480x1960mm |
| ML-1600 | 1600x1250mm | 13±2sprokes/min | <50m | 11kw | 11000kg | 2500×2200×2000mm |
| ML-1800 | 1800×1250mm | 13±2sprokes/min | <60m | 11.5kw | 13500kg | 2510×2300×2000m |
| ML2000 | 2000×1400mm | 13±2strokes/min | <60m | 15kw | 16000kg | 2270×3100×2150mm |
| ML2500 | 2500×1500mm | 13±2strokes/min | <75m | 18.5kw | 20000kg | 2300×3600×2150mm
|
Koten Machinery Industry Co., Ltd. is specialized in manufacturing printing and packaging machineries in China. Especially focus on the finishing binding equipments to make notebooks, exercise books, or hardcover books, like Flexo. Ruling Machines, Exercise Book Making Line, Perfect Binding Machines, Book Sewing Machines, Saddle Stitching Machines, Paper Folding Machines, Three Knife Trimmer, etc.
Koten Machinery Company pays high attention to the increased oversea customers's different requirement from different countries, and help them to supply the right machines with steady quality, reasonable prices and excellent after sales service from China. And finish the all necessary equipments purchase to their factory usage or resell with satisfied.
Koten Machinery company extends some different industry area, like graphic equipments, adhesive label machines, and plastic machines. etc. With the responsible for our customers, Koten Machinery combined some superior suppliers for different types machines. It is worth to mention that most of the factories have more than 15 years experience for their own products. Each machine will be tested and controlled strictly by the quality management staffs before shipment.
"Koten" Brand machines has been proved with high quality by many countries customers, like Europ, Asia, South America Market, etc. And received high reputation from them. We are looking forward to your sincere cooperation and creat a flourish business relationship with each other!
"Quality Makes Us More Excellent".
