| Prod Model: |
ML-203+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Placing Form Of Template: |
Horizontal |
| Imprinting Type: |
Platen |
| Application: |
Earthquake Products |
| Die Cutting Tool: |
Steel Blade |
Product Description
1)hot cutting plastic material
2)5indicidual heating zone with separate temperature contorl
3)Reliable electrical system
Certification(s): CE, ISO9001
Die Cutting Machine with Heating is a special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 3-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases.

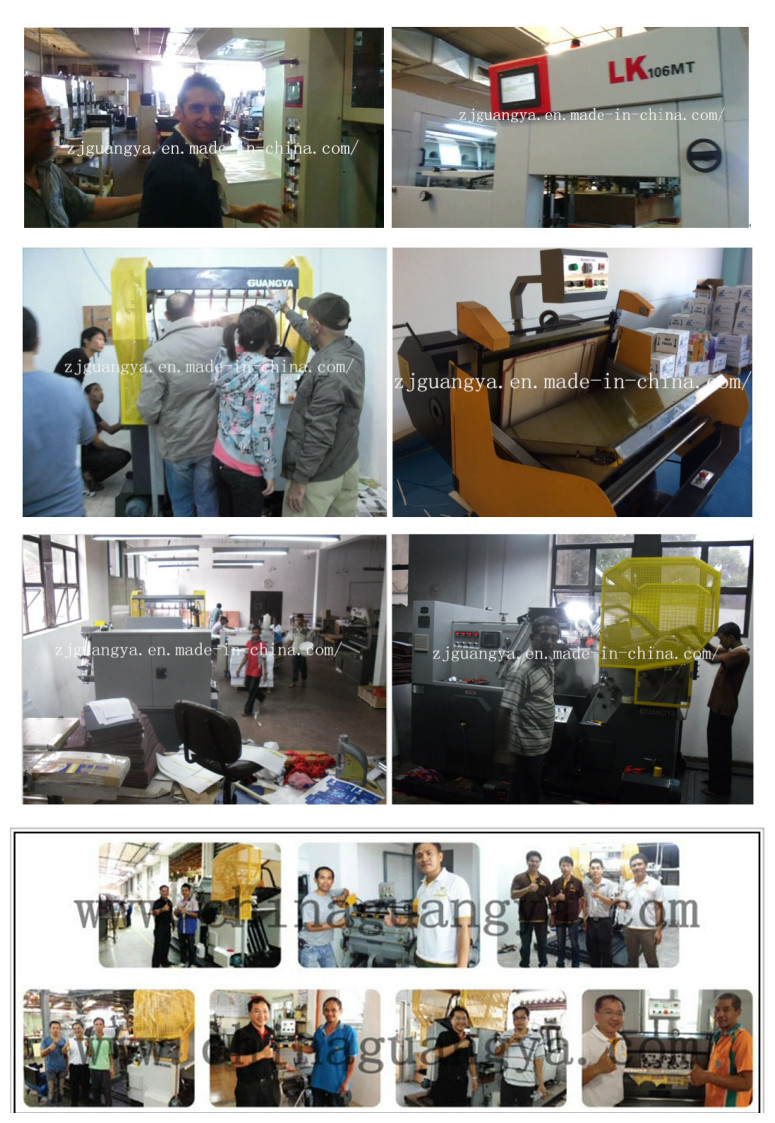

Machines work in customers' workshop:

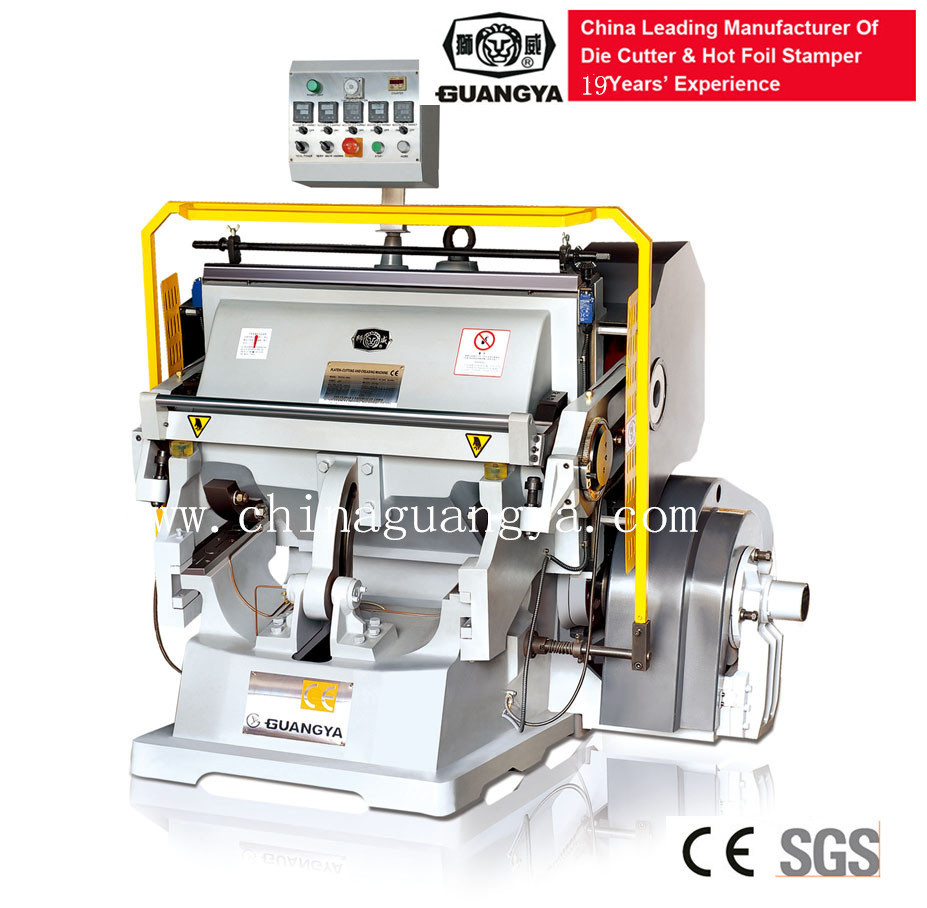

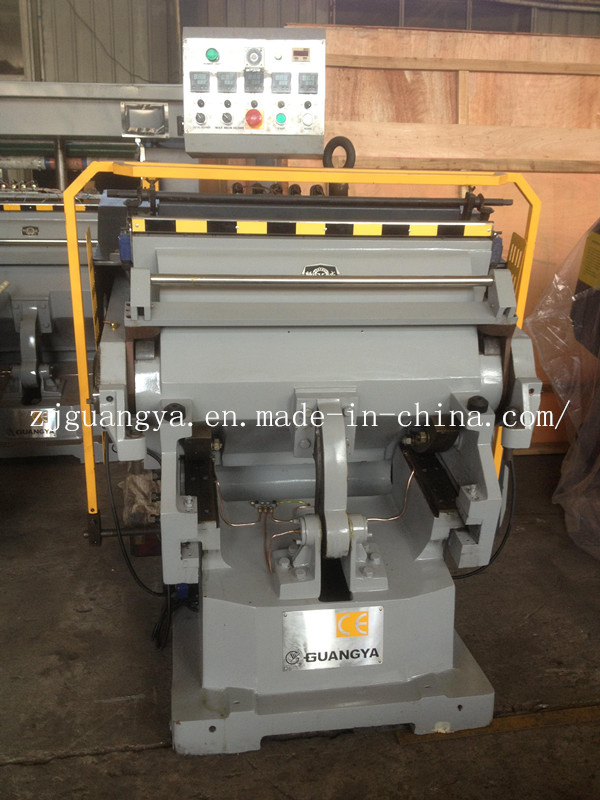

Machine photo:
Die cutting sample and CE certificate:
| Model | ML-203+ |
| Inside chase(mm) | 930× 660 |
| Max. die cutting size(mm) | 930× 660 |
| Speed(cuts/min) | 25± 2 |
| Max. rule length (m) | ≤ 26 |
| Power main motor(kw) | 4 |
| Heating capacity (kw) | 12.5 |
| Adjustable temperature | 10-300 |
| Zones individually heated | 5 |
| Gross weight (kg) | 3800 |
| Dimensions (L× W× H) (mm) | 1960× 1760× 1720 |
Zhejiang Guangya Machinery Co., Ltd., is a professional enterprise engaged in production, sales, and research. With a long history, we are one of the leading manufacturers of machinery in Zhejiang Province. We specialize in the production of printing, packaging, die cutting, hot foil stamping, creasing and embossing machinery.
Since our establishment, we have always kept to our goal of "Quality First, Rely on our Good Name". We always pay serious attention to our internal management, aftersales services, the development of science and technology as well as information development. Besides, we persist in cooperating with universities and colleges. We adopt high technology and advanced equipment from home and abroad in our designs.
Facing fierce competition, we have always persisted in the promises of quality as the foundation of our business. Since our company was founded, "Shiwei" brand products sell well throughout over 20 provinces and regions in China, and also overseas. Outstanding quality and top notch after-sales service makes the "Shiwei" brand popular and wins a good reputation among this line. We are also sincerely wishing to build friendly business relationship with all clients from home and abroad!
When you need any further information about our products and services, Please feel free to have contact with us. All your enquiries will be welcome and promptly answered.
