| Prod Model: |
ML-1100+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Semi-Automatic |
| Placing Form Of Template: |
Vertical |
| Imprinting Type: |
Platen |
| Application: |
Earthquake Products |
| Die Cutting Tool: |
Steel Blade |
Product Description
Die Cutting Machine with Heating is mainly used for die cutting plastic sheet material. Is a special equipment for creasing and die cutting cardboard, corrugated board, plastic board and leather, and is widely used in printing, packaging and plastic industries. It is characterized by compact structure, fine workmanship, high pressure, high precision and easy and reliable operation.
1) High strength due to whole body casting with high quality material.
2) Smooth running, high pressure and low noise with 3-step helical gear mechanism.
3) Single plate electromagnetic clutch is sensitive and reliable.
4) Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5) Electrical system is designed in conformity with IEC standard.
6) Single, continuous operation and opening delay are available, delay range adjustable.
7) Reliable safety system.
8) Adjustable chases with moveable bar.

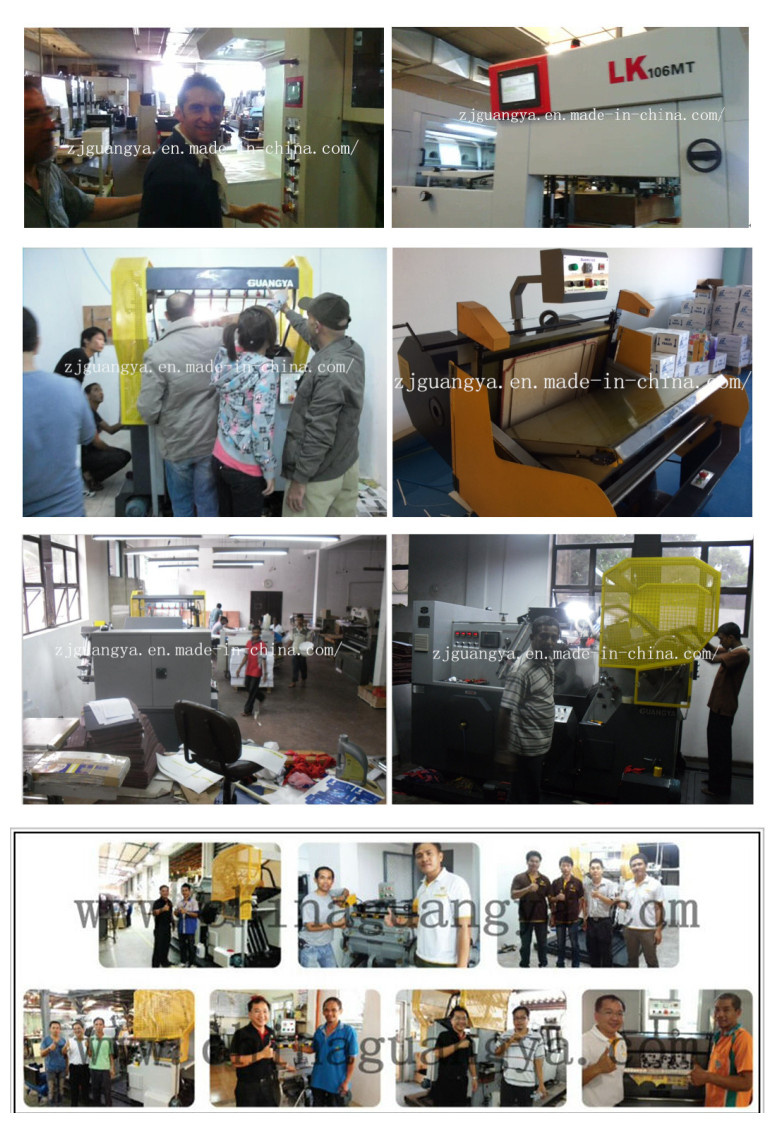

Machines work in customers' workshop:

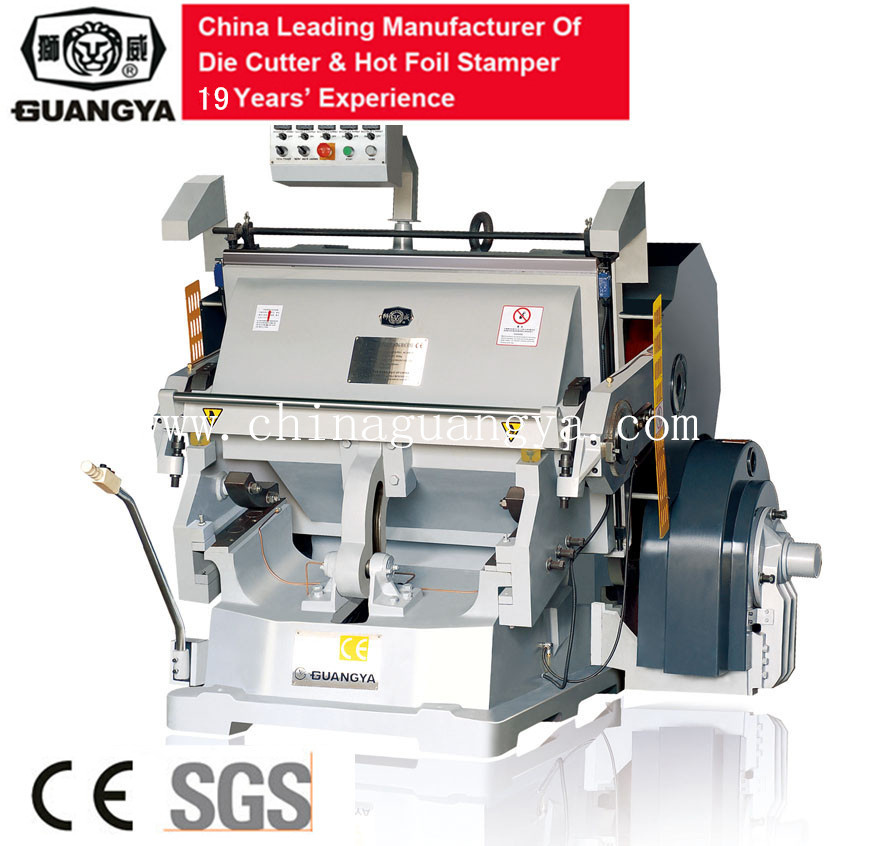

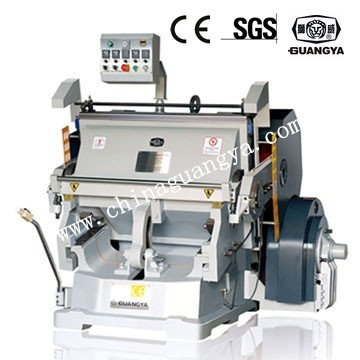

Machine photo:
Die cutting sample and CE certificate:
| Model | ML-1100+ |
| Inside chase (mm) | 1100× 800 |
| Max. die cutting size (mm) | 1100× 800 |
| Speed (cuts/min) | 23± 2 |
| Max. rule length (m) | ≤ 30 |
| Power main motor (kw) | 5.5 |
| Heating capacity (kw) | 15 |
| Adjustable temperature () | 10-300 |
| Zones individually heated | 5 |
| Gross weight (kg) | 5500 |
| Dimensions(L× W× H) (mm) | 2080× 1950× 1900 |
