Product Description

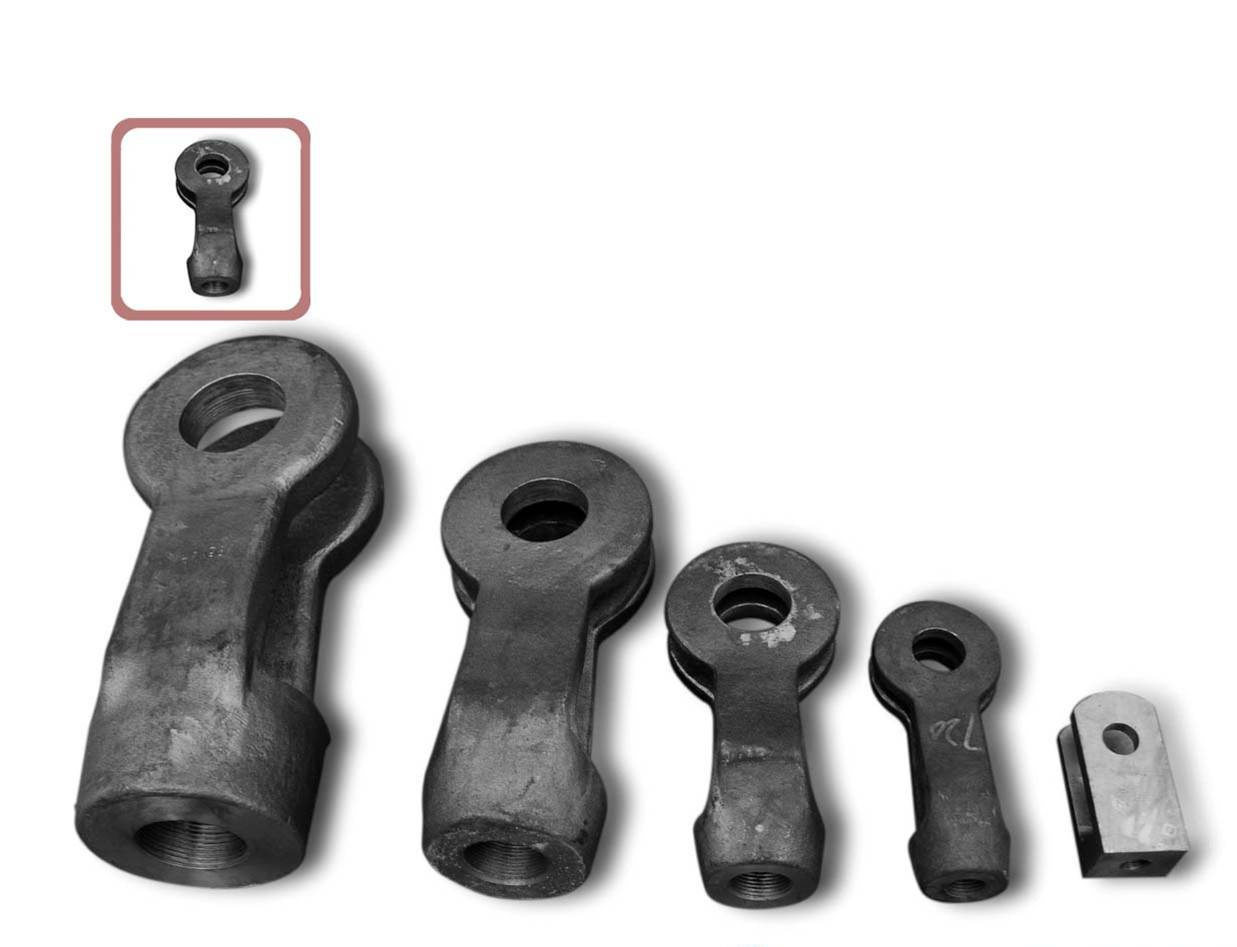

MAJOR PRODUCT 108-DIE FORGED CLEVIS
1. Product Name: Die-forged Tees Clevis
2. Material: List in the Following Table
3. Specification: M20-m105
4. Working pressure: 20.8 Mpa
5. Item: 1000MW Subcritical, Supercritical, Ultra Supercritical
6. FOB Port: Shanghai Port, China
7. Delivery Time: 100PCS in 35 days
8. Delivery Condition: Precision machined + EN10204: 3.1B
9. Payment: 30% TT in advance, balanced C. A. D; Or 100% L/C
Mill Products Range:
1. Forged Tee for Power Mill Use: Max Weight 25T, Max OD 2500mm, Max appliance for 1000MW Power plant. (SA336/SA182F92, F91, F24, F23, F12, F11)
2. Forged Tube: Max OD 1500mm, Max length 1500mm.
3. Forged Flange: 100-25000kg
4. Forged End Cap: Max OD 1200, Max weight 8T
5. Forged Elbow: Max OD 1200; Max DN 1000
| MILL FREQUENTLY MATERIAL |
| GB | ASME | EN |
| 20 | SA181GR60 | |
| 25 | SA105/SA181GR70 | P245GH |
| 35 | | P280GH |
| 16Mn/Q345 | | P305GH |
| | SA182F1 | 16Mo3 |
| 15CrMo | SA182F12 | 13CrMo4-5 |
| 12Cr1MoV | | 10CrMo9-10 |
| 12Cr2Mo1 | SA182F22 | 11CrMo9-10 |
| | SA182F24 | 7CrMoVTiB10-10 |
| 40Cr2MoV | | |
| | SA182F91/SA336F91 | X10CrMoVNb9-1 |
| | SA182F92 | X10CrWMoVNb9-2 |
| 0Cr18Ni9 | SA182F304H | X6CrNi18-10 |
| 1Cr18Ni9Ti | SA182F321H | X6CrNiTi18-10 |
| WB36 | | 15NiCuMoNb5-6-4 |
Shanghai Changqiang Power Co., Ltd. (CHQ-POWER) specializes in the research and development of forging skill, focuses on closed and open die forging and machine forging. Our forged products are widely used in the power station, power generation station, pressure vessel fields.
Also, we are pleased to work as your China purchasing agent for special forged parts. CHQ-POWER can be your bridge to China.
About CHQ-POWER
Shanghai Changqiang Power Co., Ltd. (CHQ-POWER) is located in Songjiang District, Shanghai, which is just 30 minutes drive from port, airport and railway station of Shanghai. We have been specializing in the research and development of die forging industry for more than 8 years. We believe Science and technology are the first productivity.
Product Lines
Our product lines cover power stations, power generation stations, and pressure vessels, metallurgical & mining items. These include forged tees, forged seamless tubes & pipes, couplings, forged elbows, forged bars/end caps/flanges, forged clevis/turnbuckles, forged pendulum and another star product is Finishing Flat Iron etc.
Material Used: Carbon, alloy, stainless steel, copper etc.
Inspecting Method
CHQ-POWER is using in-house control quality inspection systems, having physical and chemical examination center. This center has non-damage tester, ultrasonic analyzer, magnetic powder analyzer, chemical analyzer, mechanic properties tester, metal microstructure analyzer, etc. Examination apparatus 120 sets, have physic-chemistry examination, strength test, mechanic vibration etc. Testing method. Advanced and complete testing method and experiment installation are the dependable guarantee of CHQ-POWER product quality.
Process Installation
CHQ-POWER possesses main process equipments for more than 200 sets, herein having world advanced level more than 10 sets:
1.6000T Precise Forging Machine (1 set)(25T)
2. Friction Pressing Machine (3 sets)(500-1600T)
3. Steam Hammer (3 sets) (560-750kg)
4. Material Collecting Machine (20 sets)(5-32T)
5. NC Lathe (2 sets)(2000mm)
6. NC Vertical lathe (2 sets)(1600mm)
7. Horizontal lathe (50 sets)(3000mm)
8. Vertical lathe (3 sets)(2500mm)
9. Door-frame Moveable borer-miller (2 sets)(1250mm)
10. Miller-planer (2 sets)(1200mm)
11. Beveling Machine (1 set)(1020mm)
12. Sawing Machine (15 sets)
13. Electric Furnace (15 sets)
14. Green Gas Furnace (1 set)
Certificates
1. ISO 9001: 2000
2. TUV
3. Manufacture License of Special Equipment China
