| Prod Model: |
080 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wll/T: |
2t, 3.2t, 5.4t, 8t, 12.5t |
| Workanmanship: |
Drop Forged, Die Forged |
| Surface Finish: |
Spray Painting, Powder Coating |
| Optional Colors: |
as Per Request |
| Respone Time: |
Within 24hours |
| Door To Door Delivery: |
Prodivded |
| Customized Design: |
Welcome |
| Production Lead Time: |
20-30days |
| Csutomzied Sample: |
Charge and Refund When Order Placed |
| Exsiting Sample: |
Free |
| Type: |
Hook |
| Material: |
Alloy Steel, Carbon Steel |
| Brand: |
Hetai |
Product Description

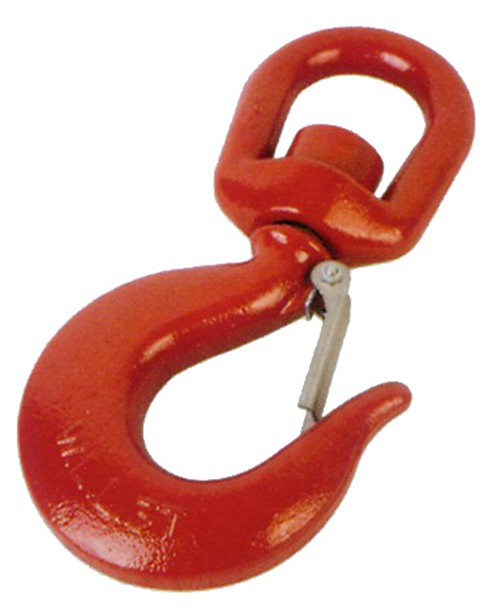

Die Forging Plastic-Sprayed Steel Lifting Hooks for Hoist
Crane hook is a device for grabbing and lifting loads, such as a hoist or crane.
Lifting hook is usually equipped with a safety latch to prevent the disengagement of the lifting wire rope sling, chain or rope to which the load is attached.
It is connected with pulleys to hang on the wire rope of lifting mechanism.
Hooks can be classified into single hook and double hooks according to the appearance; forged hooks and strapped hooks according to production method.
A hook may have one or more built-in pulleys to amplify the lifting force.
Application: It is widely used in all kinds of machines for lifting goods.
1. Hooks are designed for use with Grade 80 alloy steel chain and wire rope.
2. The feature of this hook is wide opening and lightweight.
3. Capacity, PASAK and WLL embossed on the products.
4. Material:High Tensile Forged Alloy Steel
5. Construction:Heat treatment and high temperature treatment (Quenched and Tempered)
6. Safety Factor:4 : 1
| Item No. | W.L.L. | Dimensions (mm) | N.W. | Pack |
| Ton | A | B | B1 | C | D | E | F | G | L | kg | Pcs |
| 8-060-08 | 2.0 | 62 | 32 | 15 | 125 | 13 | 27 | 21 | 28 | 165 | 0.78 | 40 |
| 8-060-10 | 3.15 | 75 | 35 | 17 | 149 | 15 | 32 | 26 | 31 | 193 | 1.20 | 22 |
| 8-060-13 | 5.4 | 91 | 44 | 20 | 180 | 20 | 42 | 33 | 40 | 241 | 2.50 | 12 |
| 8-060-16 | 8.0 | 101 | 53 | 25 | 215 | 24 | 51 | 43 | 49 | 286 | 4.55 | 6 |
| 8-060-20 | 12.5 | 113 | 64 | 35 | 246 | 25.5 | 61 | 45 | 60 | 325 | 6.15 | 4 |
Die Forging Plastic-Sprayed Steel Lifting Hooks for Hoist
Rizhao City Hetai Automobile Fittings Factory was established in March 2007, which is located in Wulian County Industrial Zone, and covers an area of 5000 square meters. There are 53 employees and 5 senior technicians. The fixed asset is over 3 million RMB yuan. Our main productions are as follows,
Forged steel and casting iron parts -- Flange, pipe clamp, scaffolding fittings, auto steel parts, hand tools, etc.
Cold bending/stamping/welding parts -- Solar panel bracket, wall mounting bracket, roadway signage bracket, road post, U shape bracket, angle bracket, steel hinge, etc.
Auto Parts --Auto air compressor, gear pump, water pump, spring, brake valves, safety valves and other metallic auto parts.
Fitness Equipment -- Kettlebell, dumbbell, barbell, and other fitness equipments.
We supply our products to many famous automobile factories and exporting companies in China, and we also do OEM business with foreign customers all over the world.
Our factory has full sets of modern high-precision production and testing equipment, Such as numerical control (CNC) machine, stamping machine, shearing machine, welding machine, plastic spraying oven, crankshaft producing machine, honing machine, multi-drill, drilling and milling machine, automatic washing machine, air-tight detector, Multi function air compressor testing machine, metallographic analyzer, deflection instrument, hardness tester, etc. We have passed the GB/T19001-2008/ISO9001: 2008 certification, and we have a number of domestic inspection certificates.
Concept innovation, Product innovation and Integrity service, all of them is our tenet for ever. With high-quality products, competitive price and wholehearted after-sale services, we will hospitably cooperate with all our customers to create a bright future.
