| Prod Model: |
HYW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2"-48" |
| Delivery Time: |
30-60days |
| Forging Forming Method: |
Mold Forging |
Product Description

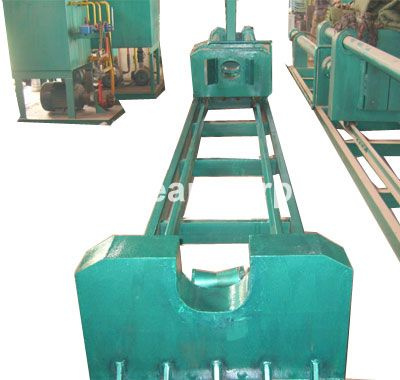

DIN Induction Pipe Elbow Machine
DIN Induction Pipe Elbow Machine is of more than 10 years' traditional product. With the development of deep researching on steel pipe, the elbow machine is improved overwhelmingly.
Nowadays, elbow machine is of super short stress, prod cast technology, induction heating technology, low energy cost and hydraulic system driving technology. The pushing plate is controlled by hydraulic system, raw material steel pipe clamping technology is innovated.
Mother pipe for DIN Induction Pipe Elbow Machine process: Seamless steel pipe, welded steel pipe, rolled steel pipe.
Elbow size range: OD 25mm~1420mm, WT: 5mm~120mm, angel: 22.5° 45° 90° 135° And make according to customer requiring angle.
Please check the DIN Induction Pipe Elbow Machine size on Specifications
Note: Working pump adopts 31.5Mpa plunger pump, Max work pressure of hydraulic system: 21Mpa
If the steel pipe wall thickness is thickned, cylinder pushing force and induction power source will respectively be accelerated. Cylinder stroke will be according to customer's need.
The elbow machine is made of: Elbow pushing mahcine, hydraulic pump station, operation panel, motor conrol box, induction heating power source, compensating capacitor, water proof cable, induction coil adjusting shelf, reactor.
Welcome to visit Hei Yan, we would like to show our DIN Induction Pipe Elbow Machine, pipe expanding machine, bending machine, tee machine, hydraulic press and the assorted beveling machine, mould to you.
|
tem |
OD(mm) |
Max.Thickness(mm) |
Cylinder(pc) |
Max. pushing power(t) |
Medium frequency(KW) |
|
1 |
OD1420 |
20 |
4 |
670 |
700-800 |
|
2 |
OD1220 |
20 |
4 |
600 |
600-650 |
|
3 |
OD1020 |
20 |
4 |
500 |
550-600 |
|
4 |
OD820 |
20 |
4 |
400 |
500-550 |
|
5 |
OD720 |
20 |
4 |
320 |
450-500 |
|
6 |
OD630 |
20 |
2 |
300 |
400-450 |
|
7 |
OD530 |
14 |
2 |
160 |
350-400 |
|
8 |
OD426 |
14 |
2 |
130 |
300-350 |
|
9 |
OD325 |
14 |
2 |
84 |
200-250 |
|
10 |
OD219 |
12 |
2 |
65 |
160-200 |
Shean (Cangzhou) Corp Ltd registed in 2011, production line started in 1994. Has technician 10 persons, workers 50 persons, sale clerk 12 persons. For years, Shean helps heavy industrial enterprises gain huge profit domestic and abroad. Shean started foreign business since 2008 as while as good domestic sales. In 2014, Shean will creat another workshop as showroom of various machines running and head office will move to Cangzhou City with 900 square meters.
Our main scope for making and sells are: Induction pipe bending machine, Elbow forming machine, Tee machine, Hydraulic press, Pipe fittings, elbows, tee. "good products and complete after sale service " is our core principle.
Product covers all over the world, like USA, England, Russia, Turkey, India, Poland etc.
Welcome you visit Shean (Cangzhou) Corp Ltd.
