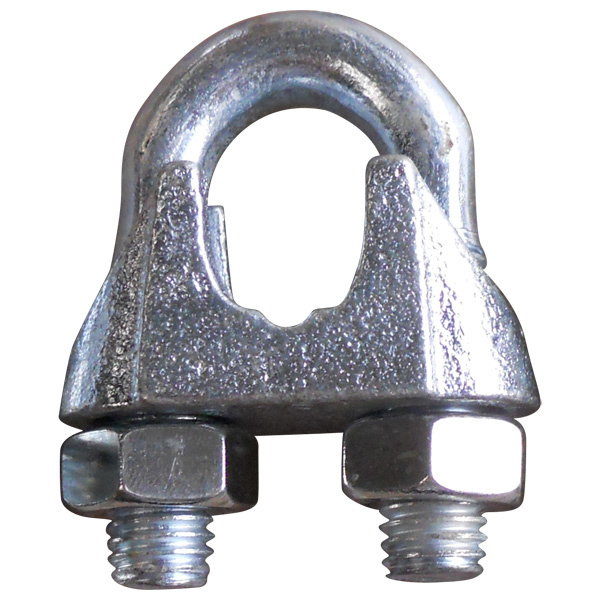

DIN1142 Malleable Clip

Name: DIN1142 Malleable Clip
Brand: china-castingforging.com
SKU: 672527882
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 0.5/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Qingdao Hongqing Metal Products Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface:	Galv or Self Color
Payment Term:	a Month
Packing:	Bags or Cartons
Material:	Malleable
Size:	M6-M40
Deformation Temperature:	Hot Forging
Molding Style:	Stamping
Molding Technics:	Gravity Casting
Casting Method:	Sand Casting

Product Description

Welcome to our website. We are established at the year of 2004. Exported to Europe, Austrlia, Southeast Asia and so on, with the high quality and competitive price.

1. Optionals: Locknuts, surface treatment, special specifications can be produced according to customers'requirements
2. Commodity Name: DIN1142 malleable wire rope clip

3. Category: Rigging hardware, Rigging
4. Origin: China mainland
5. Other Standard: DIN, JIS, US

6. Material: Stainless steel, carbon steel,
7. Surface: Hot dipped galvanized, electro galvanized, self-colored
8. Size: 5mm-40mm

9. NW(kg/100PCS): 2.2KG-260KG

10. Packing: Carton, woven bag or gunny on the pallet or as your requirements
11. Delivery Time: Within a month; FOBQingdao
12. Payment term: L/C, T/T
13. Supply Ability: 150-200ton/month
14. Advantage: About10 years production experience, high quality with competing prices; The perfect after-sales service

DIN1142 malleable wire rope clip

Size&weight:

Size	A	B	C	D	E	F	G	WT/100PCS Kg
5mm	12	13	13	5	13	25	20	2.5
6.5mm	14	16	17	6	14	30	26	4.3
8mm	18	20	20	8	18	39	33	8
10mm	20	20	24	8	21	40	38	9
13mm	17	28	30	12	29	55	52	26
16mm	32	32	35	14	35	64	64	40
19mm	36	32	36	14	40	68	69	48
22mm	40	34	40	16	44	74	80	66
26mm	46	38	50	20	51	84	91	110
30mm	54	41	55	20	59	95	107	134
34mm	60	45	60	22	67	105	119	190
40mm	68	49	65	24	77	117	135	260
