| Prod Model: |
15-1600mm DIN 2633 Forged Flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour:T White,Black,Yellow,Galvanized: |
150# 300# 600# |
| Material: |
Carbon Steel |
| Manufacturing Way: |
Forging |
| Standard: |
ANSI |
| Type: |
Welding Flange |
Product Description

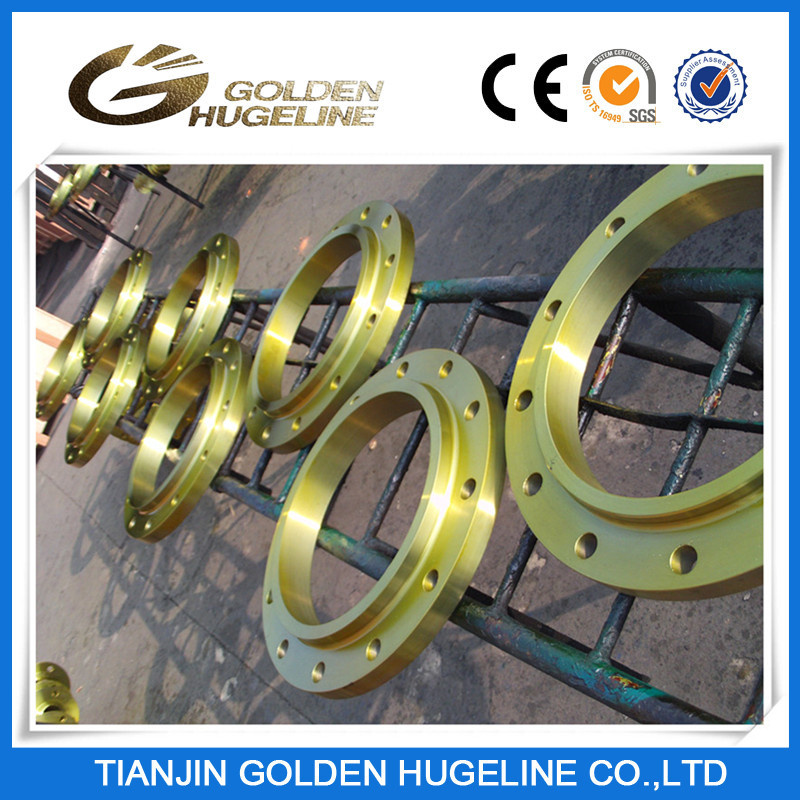

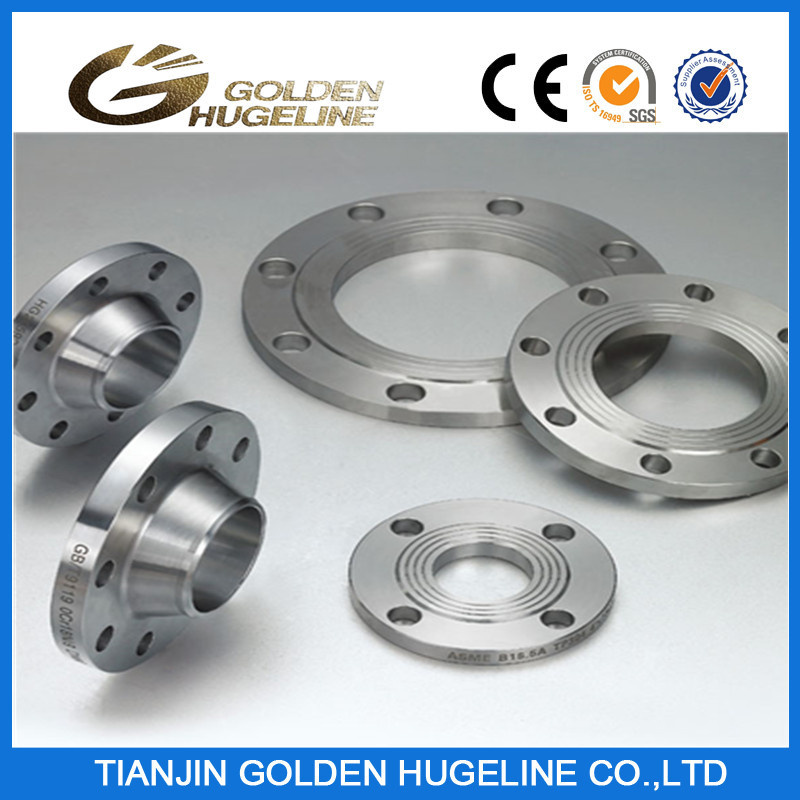

Forged RF flange
Standards: ANSI, BS, DIN, JIS and MSS etc.
Materials: Carbon steel, Stainless steel and Alloy steel etc.
Size: 1/2" ~ 64"(DN15 mm ~ 1600 mm)
Type: Slip-On, Welding Neck, Blind, Socket Welding, Threaded, Lap Joint and Plate etc.
Pressure Ratings: Class 150, 300, 600, 900, 1500 and 2500
Pressure Ratings: PN 6, PN 10, PN16, PN25, PN40 and PN64
Pressure Ratings: JIS 5K, 10K, 16K and 20K
|
Material |
Carbon steel : ASTM A105,ASTM A350 LF1,LF2,CL1/CL2,Q235A
Stainless steel : ASTM A 182, ASTM A240 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 S33, 316L, 317, 317L, 321, 347, 347H, 409, 410, 410S, 420, 430
Alloy steel |
|
Standard |
ANSI/ DIN/ EN/ BS/ UNI/ AS/ Gost/ JIS |
|
Surface |
Rust-proof oil, Black, Yellow, Galvanized |
|
Type |
Weld Neck,Socket weld,Blind,Threaded,Slip on,plate flange and special types |
|
Flange facing |
Raised face , Flat face, Ring Joint face,etc |
|
Size |
DN10-DN2000, 1/4"~240" |
|
Process |
Free forging, plate cutting |
|
Pressure |
ANSI: 150bls-2500bls / ANSI:Table B-E, DIN:PN2.5-PN160, Free forging, plate cutting,etc |
|
Connection |
Welding |
|
Technical |
Forged |
|
Package |
Wooden case,Cartons, Pallets or crates according to buyer's requirements. |
|
Delivery |
15 days after advanced payment |
|
Certificate |
ABS,API,ISO9001 |
|
Applications |
Steam, air, gas and oil pipes or for many other fluid |
Tianjin Golden Hugeline Co., Ltd., located in Tianjin city, is one of the biggest steel groups. Golden Hugeline Group are specialized in producing and exporting all kinds of steel pipe and fittings, flanges, valves in China. Our group is established in 1995 and We have over 15 years' Experience in steel market.
Our group have four branches. The factories of steel pipe and pipe fitting are located in Hebei Province, one flange factory is located in Shanxi Province, and the last one is our sea shipping company in Tianjin. Our main products are pipe fittings, pipes, flanges, valves and so on. We can manufacture according to ANSI/ASTM, JIS, DIN, API, GOST and non-standard. The sizes are 1/2" up to 72" for pipe fittings, 1/2" up to 32" for flanges, 1/2" up to 24" for pipes, 1/2"up to 24" for valves.
Our products have been widely used in many projects. Also we are a good supplier of SGS and have passed ISO, API, TUV, EC and so on. Till now, we have exported to Vietnam, British, Sweden, Japanese, Korea, India, Brazil, Germany, Africa and Middle East counties. We have good reputation from our customers and have long term cooperation with them.
We sincerely hope to cooperate with new and old friends and warmly welcome you to visit our factory.
