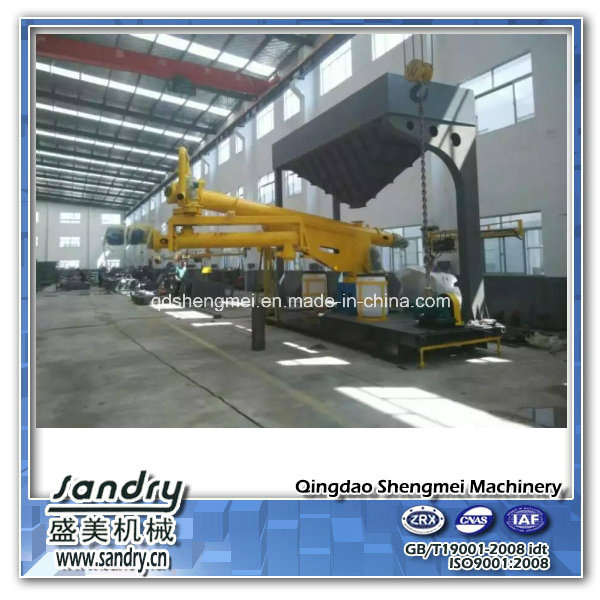

Double Arm Continuous Sand Mixer Foundry Equipment
| Price: |
US $ 7500/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
10T/H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Productivity: |
5 |
| Forearm Radius Of Gyration: |
1500 |
| Sand Mouth Height: |
1250 |
| Total Power: |
10kw |
Product Description
S255 double arm resin sand mixer continous sand mixer
Technical data
Item Model | S285 | S2812 | S2815 | S2820 | S2830 | S2840 |
| Power of small trolley | kw | 4 | 4 | 4 | 4 | 4 | Hydraulic drive 11kW |
| Power of dust collector | kw | 5.5+0.25 | 5.5+0.25 | 5.5+0.25 | 5.5+0.25 | 5.5+0.25 | 5.5+0.25 |
| Power of sand mill | kw | 5.5 | 7.5 | 11 | 11 | 30 | 22 |
| Gyration radius sand mill | mm | 1500 | 1300 | 1600 | 1600 | 2050 | 2000 |
| Speed of sand mill | rpm | 730 | 730 | 960 | 730 | 537 | 730 |
| Power of sand feeding arm | kw |
| 4 | 4 | 5.5 | 5.5 | 2.2 |
| Gyration radius of sand feeding arm | mm |
| 1300 | 3000 | 3000 | 5000 | 6000 |
| Height of sand entry | mm | 1800 | 2500 | 2500 | 2500 | 2292 | 5940 |
| Height of sand exit | mm | 1200 | 1600 | 1600 | 1600 | 1520 | 1800-4800 |
| Power of resin heater | kw | 2 | 5 | 5 | 5 | 5 | 5 |
| Power of resin pump | kw | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Power of curing agent pump | kw | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Pressure of compressed air | mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Total power | kw | 20.25 | 30.25 | 33.75 | 35.25 | 51.25 | 46.8 |
Located in Qingdao, Qingdao Shengmei Machinery Co., Ltd. is a professional manufacturer of V-process molding line(and related equipments) , Lost foam casting molding machine line(and related equipments), Resin sand reclamation molding line (and related equipments),Dust removal equipment and sand mixer. We have 10 years of experience in casting molding machinery and have a good reputation in this field.
Features:
1.Optimized secondary fuel consumption(LPG) depending on the properties of resin
2.Low Operating Cost
3.Fully automatic plant with instrumentation for process control
4.safe and reliable operation
5.smooth and consistent operation with variations in resin content
6.Tailor made capacities available
Our service
1,Eight experienced engineers are ready to consider every possibility for customers. Some of them has over 10 years knowledge of casting technology.
2,3D software for auxiliary design which is helpful to show every design details in front of you.
3,Experienced technicians for production, installation, commissioning & after-sale service.
4,We have gained ISO 9001:2008 certification.
5,All machining parts are out sourced from professional CNC machining company with strict quality control procedure.
Qingdao Shengmei Machinery Co., Ltd., which has a dozen years of history, is specialized in vacuum process casting machines, lost foam molding machines and resin sand reclamation equipment. Having more than ten employees who is specialized in mechanical design, electrical design and foundry technology, our company has wide experiences in research and development, production, installation, debugging and service. Based on good business reputation, scientific internal management, excellent product quality and service and a range of social acceptance, our company has established the dominant position in the field of vacuum process casting, lost foam molding and resin sand reclamation.
Qingdao Shengmei Machinery Co., Ltd., which has strong power of making and processing, covers an area of 5000 square meters, with 6000*2500 Planer type milling machine, 4000*1250 Planer type milling machine, 1800*1500 boring mill, 4000*1500 Single column boring and milling machine and 2610 vertical machine center. Our company integrates research and development, production, installation, debugging and after-sale service to ensure our machines' normal and reliable operation.
So far, we have about 100 clients who are from fields of car, mining machinery, concrete machinery, hoisting machinery, reducer, engineering machinery, valve, mold and machine tool, which has dozens of varieties, for example, axle, wear parts for mine, wear parts for cement, counterweight iron, reducer enclosure, engineering machinery segments, valve seat, aluminium alloy mold and machine tool body. Our clients spread all over China and some of them are doing export business. By now, all the users have been checked and accepted.
Vacuum process casting and lost foam molding machine absorb modern technology of Japan and Germany. We provide you with foundry technology services and various molding style, such as car-type, rotating table type and automatic molding line.
Lost foam molding equipment adopts Mechanical turbo regeneration methods to achieve the reclamation of used sand. The machines of shakeout, crushing, reclamation, cooling, transporting, molding and dust collection are in good quality and wonderful service.
We always bear "Honesty is the source and we should produce boutique" in mind and insist on the business policy of "quality of survival, innovation and development, to manage for efficiency". With first-class technology, first-class products and first-class service, we wholeheartedly cooperate with you.
All colleagues of Qingdao Shengmei Machinery Co., Ltd warmly welcome you to visit our factory, guide our work and negotiate business with us.
