| Prod Model: |
LM-D840/850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

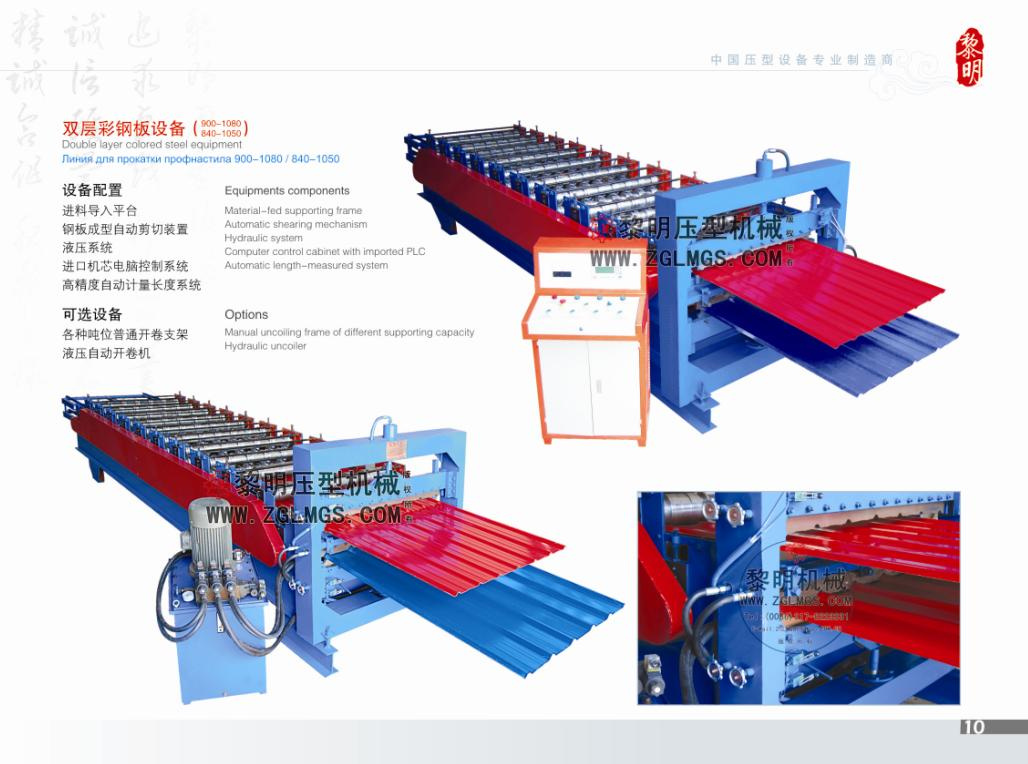

Double Deck Steel Sheet Roll Forming Line LM-840/850
Technical parameter
Material: G. I/A. L or colored armor plate
Equipment operation Automatically
Voltage AC380/50/60Hz or at buyer's request
Thickness of sheet(mm) 0.3-0.8
Material width(mm) 1000/1000
Formed sheet width (mm) 850/840
Productivity 12-15m/min
Producing capability 3500 m2/8hs
Diameter of shaft 70mm-80mm
Material of rollers 45# steel
Dimension About 8.0m*1.8m*1.5m (L*W*H)
Weight 4500kg
Total power(kw) 8kw
Driven system Single
Power of hydraulic system 4KW
Power of main molding core 4kw (cycloidal planetary gear speed reducer)
Equipment parts
Manual Decoiler, which can bear 5000kg
Feeding platform
Main molding core
Hydraulic system
Automatic shearing system
Computer control system
High-precision automatic counter
Driven system and protective covering
Panel supporting table
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
