| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description

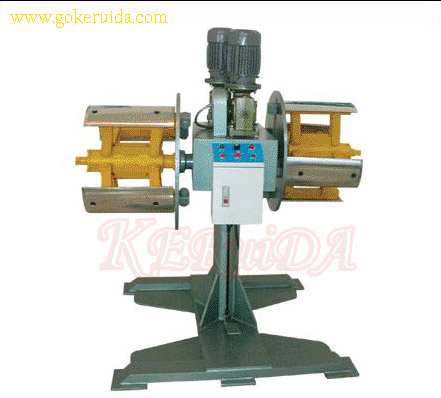

Structure:
This model consists of three parts: Frame, main shaft box and material holding shelf. Supported by long axle, the main shaft box is an integral part which occupies little space but can undertakes large weight. Meanwhile, it has the advantages of easy loading and flexible operating.
Features:
With double-shaft mechanism, it can be loaded while being used, greatly saves the material changing time, improve the production capacity, and reduce the production cost. Since non-power structure is used, besides cooperating with normal straightening machine, it mainly optimize the effect through working together with S-type high-speed material straightener and straightening machine.
SPECIFICATIONS
| Models | SMT-200 | SMT-300 |
| Max.Width(mm) | 200 | 300 |
| Material Thickness(mm) | 0~1.6 | 0~3.0 |
| Reducer | 1:60×2 | 1:60×2 |
| Motor(HP) | 2×1/2 | 2×1/2 |
| Power | AC three-phase voltage 380V |
| Material I.D.(mm) | φ300-460 | φ450-530 |
| Material O.D.(mm) | φ1200 | φ1200 |
| Max.Load(kg) | 500×2 | 1000×2 |
| Machine Weight(kg) | | |
KERuiDA is a German-funded corporation, one of the well-known brands in the world. It is specialized in punch machine and mould & die making.
Punch machine making:
In 2005, Keruide Machinery Equipment Co., Ltd. was set up in Dongguan. Introduce Germany advanced technology and professional R&D, to design and make KERuiDA big three round high-speed precision automatism punch and a range of automatic machinery and equipment. We followed the policy of "People-oriented, Morality for the first". With professional technical R&D team, to research a new type of superhigh speed punch according to the customers' special needs. We always continue to improve our products, and due to our high quality and good services, we received the vigorous support and high trust from our customers. Thus, it created "Dongguan Keruide Machinery Equipment Co., Ltd. " a good image in business. And we take "creating the first brand of nation" as a goal.
Mould and die making:
We can provide one-stop service including design and fabrication of tooling, molding products and secondary process such as Silk Screen Printing, Spray Printing and Pad Printing etc. Due to the rich experience, competitive price, on-time delivery and high quality, our moulds and products have been sold very well all over the world, especially in European countries and U. S. In order to adapt to the pace of market development, we earned ISO 9001-2000 certification in 2005, which embodies our efforts in quality management. Advanced equipment, excellent employees, sophisticated techniques, superior quality management, responsive service system, all of these will contribute to our competition. Therefore, we have always kept long-lasting trustworthiness and harmonious Win-win relationship with our customers.
We always keep in mind: To survive on quality, to profit from management, always keep improving. And our slogan is "Take customer's interests firstly, Think what you think, Worry what you worry. "
Therefore, "Choose us, you choose the success!
