Product Description

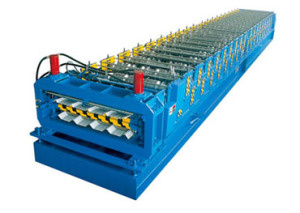

Tile Machine with 7.5kW Main Motor Power and PLC Controlling System
Consists: (We can customize machine according to your requirement)
Uncoiler and its base
Coil sheet guiding equipment
Film covered device
Roll forming system
Pressing equipment
Post-cutting equipment
Hydraulic station
Controlling system
Supporter table
Material: Colored and galvanized steel sheet at yield stress 33KSI
Thickness of coil sheet: 0.5 to 0.6mm
Coil width: 1, 000mm
Working speed: 3 to 4m/min (step distance at 380mm)
Power requirement:
Main motor power: 7.5kW
Hydraulic station power: 5.5kW
Maximum passive uncoiler capacity: 5, 000kg
Quantity of stands: 15 groups
Controlling system: PLC
Type of cutting: Roll-formed and length-set cutting
Voltage: 380V, 3-phase, 60Hz or at buyer's requirement
Machine dimensions: About 18, 500 x 1, 500 x 1, 400mm
Total weight: About 9, 500kg
Working flow:
Decoiling sheet
Sheet guiding
Film covering
Roll forming
Measuring length
Pressing
Cutting panel and panels to supporter
