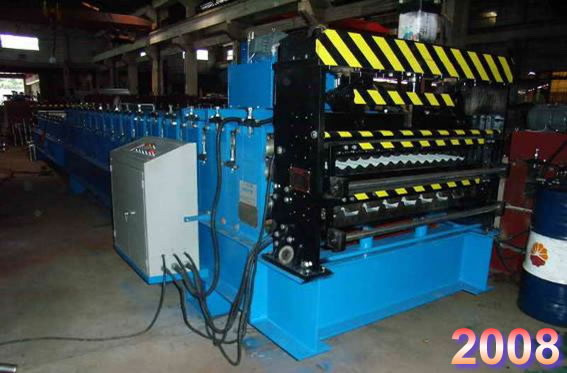

Double-Layer Roof Roll Forming Line

Double-Layer Roof Roll Forming Line
Price: Negotiable
Min Order: 1

Product Description

Double-layer floor decking rill forming line consisits of

A. DECOILER 1 set
--- Hydraulic operating type.
--- Max. Loading capacity: 5000 kg
--- Coil specification:
Inner diameter: 500-600 mm;
Outer diameter: 1600mm;
Max. Width: 1000mm
Motor: 3 kw
--- Hydraulic expansion to tighten the coil.

B. SHEARING DEVICE BEFORE FEEDING.
C. ROLL FORMING MACHINE 1 set
--- Main machine base is assembled by high class and precise welding treatment.
--- Transmit system: AC motor drive the reduction gearbox changes over to the forming rollers simultaneously.
--- Main machine motor: 5.5 KW; 380V/, 50Hz
--- Roll-forming speed: 3 -- 20 M/Min
--- Upper forming roller: 12 stations
--- Lower forming roller: 22 stations
--- Roller's specification: 45# steel, plating chrome; Hardness up to HRC52-53.
--- Shaft in 45# steel with heat treatment, diameter in 72 mm
--- The bearing with the shaft are capable of being adjusted according to the change of the thickness of material.

D. HYDRAULIC DOUBLE-BLADE CUTTING DEVICE 1 set
--- Material of the cut-off blade: Cr12; Hardness: HRC60-62;
--- Clean cut without burrs; Wear-resistant, good steel structure.
--- Length tolerance: + 2mm/10m
--- Hydraulic oil pump power: 4.0 KW
--- Cut-off blades: 1 set
--- Hydraulic oil station 1 set
--- With oil fan cooler.
E. PRODUCT RUN-OUT TABLE 4 PCS
--- Dimension of table: 6000*600*1200 mm (approximate)
--- Welding structure.
F. CONTROL SYSTEM
-- By PLC OF MITSUBISHI
Specialized in High-frequency Pipe Line and Roll Forming machine, and Sheet Metal Working machinery like slitting line, cut to length, press brake, bending machine, shearing machine and etc.
