| Prod Model: |
GY-ZS PP/PE 125/140/150 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Mould Head: |
Electric Elevating Die or Hydraulic Filter |
| Material Processed: |
Film |
| Plastic Type: |
PE |
| Screw: |
Double-Screw |
| Automation: |
Automation |
| Computerized: |
Non-Computerized |
| Certification: |
ISO9001:2008 |
Product Description

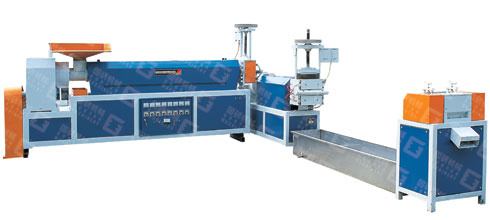

Double Screw Plastic Recycling Granulator for GY-ZS-PP/PEUsageThe plastic recycleing granaulator is suitable for the granule remaking of new and old LDPE, HDPE PP or the mixed-color-remaking of engineering plastics. Mainly applied to processing old and useless plastic sheeting, braided bags, convenient bags, boxes, barrels, beverage bottles, furniture, items in everyday use, and so on...It is the recycled trade of old and useless plastics that is the widest and most extensively used. And it won high praise and popularities from users.
Characteristics1. This design of the device is based on the newest plastic technology in the world. And its appearance adopting the international popular color, so it is beautiful, elegant, environmental and effective. Moreover it works wet or dry.
2. Screw and cylinder are made from the imported high-quality carbon element structural steel for adjust finalize and nitrogenation treatment. It'swearable, strong torsibility and durable in use.
3. The gearbox use three-axes and second-class catercomer gear to control speed. The materials of gears are all adopt 40CrMnT alloy steel. It is forging? Adjusting? Rolling and quenching treatment many times, so it is wearable? Intensity and smooth running.
4. Framework of the machine adopts international standards 80X50 steeliness, reduced the total shock which is evocable by the machine running, extend the equipment life.
5. All recovered material does not need to get rid of water drops or bake, dry. It can produce high-grade granulator.
6. Row materials breaking and smashing, washing, charge-in and particle manufacturing can be completed in a whole process, so it is high efficiency.
7. Fully utilize high pressure to grit the incessant system of intensifying, heart production automatically, having avoided heating in succession, and conserving electric energy.
8. The finished products by this machine are high density strong viscidity and good thawy degree.
Technical Parameters:
|
Type |
130 |
140 |
150 |
160 |
|
Main |
Sub |
Main |
Sub |
Main |
Sub |
Main |
Sub |
|
Diameter of the screw(mm) |
Φ130 |
Φ125 |
Φ140 |
Φ125 |
Φ150 |
Φ125 |
Φ160 |
Φ130 |
|
Screw Ratio L/D |
18:1 |
10:1 |
18:1 |
10:1 |
18:1 |
10:1 |
18:1 |
10:1 |
|
Temperature Zone |
6 zone |
4 zone |
6 zone |
4 zone |
6 zone |
4 zone |
6 zone |
4 zone |
|
The way of exhaust |
single |
single |
single |
single |
single |
single |
single |
single |
|
Mould Head |
Electric elevating or hydraulic filter |
|
Electric Power(kw) |
37kw |
15kw |
45kw |
15kw |
45kw |
15kw |
55kw |
18.5kw |
|
Capacity(kg/h) |
180 |
240 |
280 |
300 |
|
Overall Dimension(L×W×H )(m) |
3.71×1.78×1.88 |
2.1×1.02×1.53 |
4.02×1.78×1.88 |
2.1×1.06×1.53 |
4.5×1.78×1.88 |
2.1×1.06×1.53 |
4.54×1.78×1.88 |
2.36×1.06×1.53 |
