| Prod Model: |
012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Steel Material Type: |
Alloy Steel and Stainless Steel |
| Modulus: |
0.5-16mm |
| Teeth: |
6-200 |
| Od: |
3-300mm |
| Precision Grade: |
GB5-8, JIS 1-4, Agma 12-9, DIN 6-9 |
| Length: |
10-1500mm |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Load: |
Drive Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Stepped Shaft |
Product Description
For example,

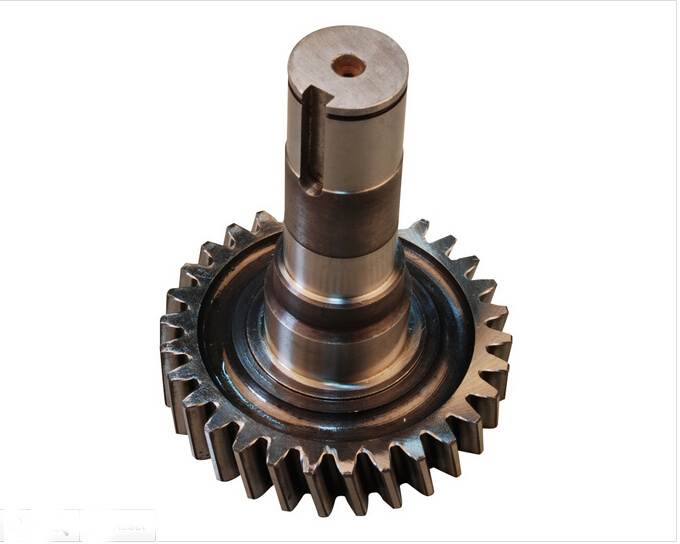

(1)Gear shafts for oil pump(gear pump), spline shaft and drive shaft. We have stocks for most popular sizes; Also we accept non-standard sizes orders.
We have complete production line with CNC turning, milling, teeth shaping, hobbing, heat treatment, grinding capacity, and inspecting devices. Different material, different tolerance, different heat treatment...Will be met according to customer's requirements. We are familiar with ISO, ANSI, DIN, JIS standards.
Gear Specification:
1)Material: Carbon steel, alloy steel, stainless steel,
2)Modulus: 0.5-16mm
3)Number of teeth: 6-200
4)OD: 10-800mm
5)Precision grade: ISO6
6)Heat treatment: Right methods will be made for different material, quenching, case hardening, carburizing, nitriding, normalizing, etc.
7)Process: Forging, turning, milling, punching, grinding heat treatment, finish grinding
8)Surface: Self color, plating, phosphating, powder coating
9)OEM welcomed, small order quantities are accepted.
(2)Our Gear types: Straight Teeth Gear, Oblique Teeth Cylinder Gear, External Spur Gear, Helical Gear, Internal Spur Gear, Gear Shaft etc the standard and non standard according to the drawings or samples.
Material: 45#, 40Cr, 20CrMo, 20CrMoti, 17CrNiMo6, 20CrMnTi or the others
Heat treatment: Medium frequency quenching, high frequency quenching, carburizing and quenching, nitriding, Carbon-Nitriding, Salt bath quenching.
Working Process: Gearh hobbing, Gear shaving, Gear shaping, Gear grinding etc
Precision Grade: GB5-8, JIS 1-4, AGMA 12-9, DIN 6-9
Application area: Auto gearbox, medical equipment, metallurgical machinery, port machinery, lifting equipment, mining machinery, electrical power equipment, light industry equipment, environmental protection machinery.
(3)Our sprocket or chainwheel
The standard and non standard according to the drawings or samples.
Material: C45, S235JR, CAST STEEL or the others
1, Description: Sprocket, chainwheel
2, Types:
A) Standard sprocket
B) Finished bore sprocket
C) Taper bore sprocket
D) Double plate wheels
E) conveyor sprocket
3, Material: C45, S235JR, Nylon
4, Surface treatment: Zinc-plated, black finish
5, Single A-type, double A-type, Welding hub KB-type, Welding hub C-type etc for your reference.
6, heat treatment way: High frequency quenching, Through-hardened, carburizing and quenching
(4) Our manufacturer produces the worm shaft with special machine of which the production efficiency is 2 times more than the traditional method and the surface finish would be within 0.8-1.6. Also, all the finished worm gear and shafts will be tested with gear meshing effort meter in order to meet exactly the requirements from the clients. The material of worm gear: Brass, Al bronze, Phosphor bronze. The material of worm shaft: 42CrMo, 40Cr and so on. The worm gear and shafts we process can be used on the different products such as Gate valves gear operated and solar slew drive and our processing range is extensively including double-enveloping toroid worm gear and shaft, Niemann worm gear and shat, dual lead worm and non-standard worm.
The above represents some of the sizes offered. The other types of products can be considered upon request.
Please feel free to contact us if you have any interested.
