| Prod Model: |
ALL SIZE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
1 |
| Certification: |
GB/T19001-2008/ISO9001:2008 |
| Surface: |
Galvanized |
| Color: |
Red ,Yellow or Plated |
| OEM: |
Yes |
| Material: |
Alloy Steel |
| Loading Port: |
Qingdao |
Product Description

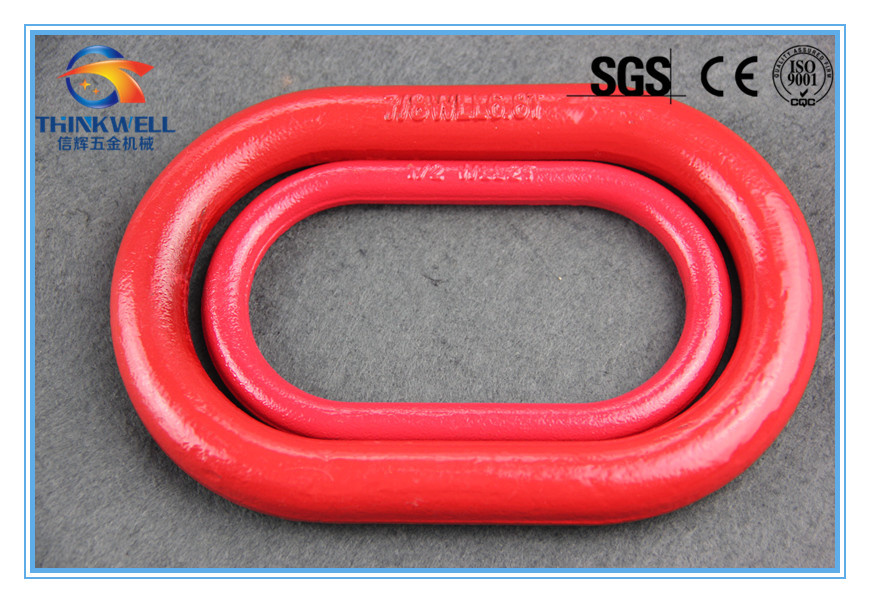

Drop Forged A342 Oblong Master Link Chain
Forged Alloy steel.
Quenched &tempered.
M. U. L. Is 5 times the Working load limit.
Inner packing
Packaging Details:
1. Gunny bag pallet.
2. Special package can be made according to customers' requirements.
3. Our main markers are all over the world, such as Europe, North America, Africa, Mid-East, Asia, Austrilia, Sorth America etc
4. Standard: European type. Jis type. Din type. And U. S type.
5. Material: Alloy Steel ,Stainless steel 304/316. Carbon steel. also available.
6. Size: All the models
7. Surface: Hot dipped galvanized, zinc plated, self color or painting
| Part No. | Size
(inch) | Inside Length
(inch) | Inside Width
(inch) | Weight
(ibs) | W.L.L.
(Single Pull)
ibs | Proof Load
ibs |
| THK0102 | 1/2 | 5 | 2-1/2 | 0.89 | 7000 | 14000 |
| THK0508 | 5/8 | 6 | 3 | 1.63 | 9000 | 18000 |
| THK0304 | 3/4 | 5-1/2 | 2-3/4 | 2.25 | 12300 | 28400 |
| THK0708 | 7/8 | 7 | 3-1/2 | 3.53 | 15000 | 30000 |
| THK1000 | 1 | 7 | 3-1/2 | 5.00 | 24360 | 48700 |
| THK1104 | 1-1/4 | 8-3/4 | 4-3/8 | 9.75 | 36200 | 72400 |
| THK1102 | 1-1/2 | 10-1/2 | 5-1/4 | 17.12 | 54300 | 112200 |
| THK1304 | 1-3/4 | 12 | 6 | 26.12 | 84900 | 169800 |
| THK2000 | 2 | 14 | 7 | 38.00 | 102600 | 205200 |
| Constitute | The company headquarter
Three wholly-owned manufacturing factories
The joint-venture factories |
| Top-notch technical and R&D team | 3 professor-level senior engineers
6 senior engineers
12 engineers |
| Field | Metallurgy, Electric Powder, Shipyard, Sea Port, Oil-field, Railway, Machinery, Auto, Energy, Aerospace, etc. |
| Equipment | Hydraulic Extruders (3150T/2000T/500T),
Friction Presses (1600T/1000T/630T/300T),
Hydraulic Press Machines (3000T/1500T/600T),
Drawing and Straightening Machines (100T/40T/10T),
Intermediate Frequency Induction Furnaces (2T/1T/0.5T),
Vacuum Annealing Furnaces (5T/2T/1T),
Punching Machines (250T/160T/100T/80T/25T), Automatic Heat Treatment Equipment and Automatic Plastic Coating Line |
| Test | Tensile test less than 300tons,
Chemical analysis of such metal materials as steel, aluminum, copper, etc.
Metallurgical microstructure laboratory and ultrasonic defects detecting center. |
| Certificate | ISO 9001-2008, BV, SGS, CE |
Qingdao ThinkwellHardware & Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 160 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is 1000T/630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and so on.
Main products also comprise Chains, Hooks, Shackles, Turnbuckles, Wire rope clips, Load binders and other rigging hardware accessories.
Our Service, Your Safety!
You are more than welcome to our factory!
our advantages:
1 Quick response: all inquiries responded within 12 hours
2 experience: reliable supplier & over 20 years in manufacturing rigging hardware, exported to over 50 countries
3 Timely delivery: from mold to samples within 10 days
4 Certification: CE, ISO, products test reports provided on request, control for each product
5 Strong ability for R&D
6 Transportation: close to Qingdao Port & Airport, providing great advantages to trade
7 Competitiveness: high-quality and the lowest ex-factory prices with a wide range of shipping ways
8 no MOQ limit, customers' special need is welcomed
Our creed: better because of Specialization
Welcome to our factory for a visit
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
