| Prod Model: |
Eye&Eye |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Fasten, Adjust |
| Surface: |
Galvanized |
| Treatment: |
Quenched and Tempered |
| Grade: |
a |
| Other: |
Customized |
| Loading Port: |
Qingdao |
| Style: |
Eye&Eye |
| Materials: |
Carbon Steel |
| Material: |
Steel |
| Type: |
Eye&Jaw&Hook |
Product Description

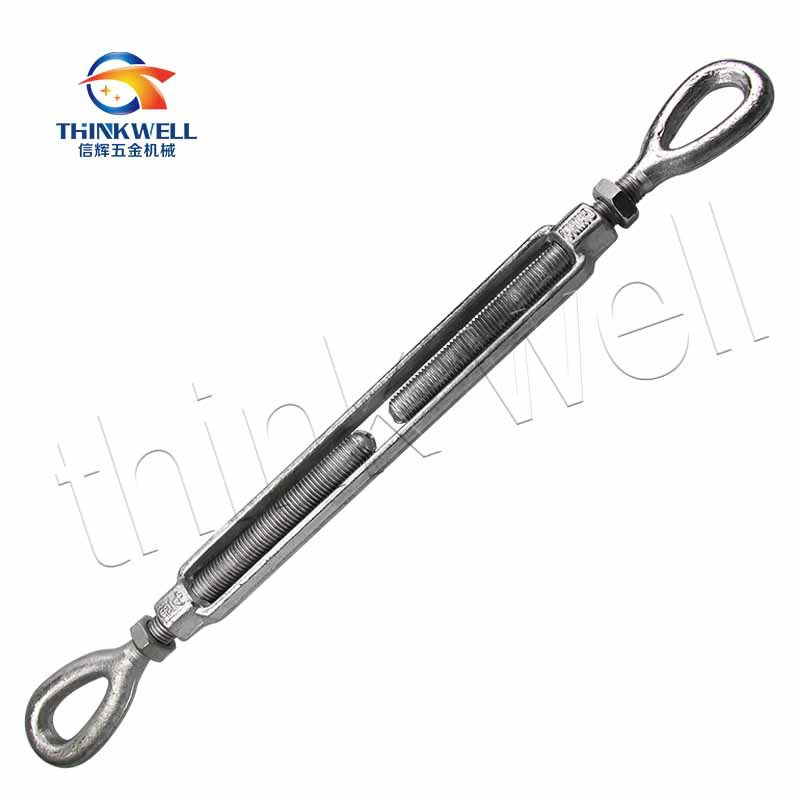

Drop Forged Carbon Steel Eye&Eye Us Type Turnbuckle
Material: Carbon steel 1045#
Finishing: Electronic Galv or HDG
Drop Forged in carbon steel
Packing: Carton packing then palletized with metal pallet
Customized requirements are welcome!
Origin: China
FOB Port: Qingdao
Lead time: 15~45 Days
Main export market: US, Australia, European countries, India
Standard: CE, ISO
Qingdao Thinkwell also manufactures hooks, shackles, turnbuckles, wire rope clips, load binders and other rigging hardware accessories.
Advantages: Rich experience for international business, prompt delivery, quality control small orders are acceptable, strong ability for R&D.
MORE PICTURES OF KINDS OF TURNBUCEKLES:
| Size(in) | Acerage | Approx Weight Each (lbs) | Work Load Limit |
| Ocerall |
|
| (Diameter | Length with | Pounds |
| Ends in |
|
| Closed |
|
| * | Position | Eyes | Jaw& | Jaw& Jaw | Stub | Bodies | Hook&Hook Hook&Eye | Eye&Eye |
|
| and/or |
|
|
| Jaw&Eye |
| Take-Up) |
| Hooks | Eye | End | Only | Jaw&Jaw |
|
|
|
|
|
| Stub End |
| 1/4*4 | Apr-81 | 0.3 | 0.3 | 0.4 | 0.29 | 0.17 | 400 | 500 |
| 5/16*41/2 | 99/16 | 0.5 | 0.35 | 0.58 | 0.46 | 0.25 | 700 | 800 |
| 3/8*6 | 117/8 | 0.75 | 0.82 | 0.93 | 0.75 | 0.3 | 1 | 12 |
| 1/2*6 | 135/16 | 1.5 | 1.62 | 1.68 | 1.36 | 0.55 | 1.5 | 2.2 |
| 1/2*9 | 165/16 | 1.75 | 1.82 | 1.85 | 1.69 | 0.74 | 1.5 | 2.2 |
| 1/2*12 | 195/16 | 2.18 | 2.19 | 2.2 | 2 | 0.93 | 1.5 | 2.2 |
| 5/8*6 | 151/2 | 2.63 | 2.59 | 2.82 | 2.15 | 0.91 | 2.25 | 3.5 |
| 5/8*9 | 181/2 | 3 | 3.01 | 3.25 | 2.7 | 1.2 | 2.25 | 3.5 |
| 5/8*12 | 211/2 | 3.25 | 3.5 | 3.75 | 3.22 | 1.5 | 2.25 | 3.5 |
| 3/4*6 | 17 | 3.75 | 4.25 | 4.68 | 3.25 | 1.3 | 3 | 5.2 |
| 3/4*9 | 20 | 4.5 | 5 | 5.38 | 4 | 1.7 | 3 | 5.2 |
| 3/4*12 | 23 | 5.75 | 5.75 | 6.12 | 4.65 | 2.12 | 3 | 5.2 |
| 3/4*18 | 29 | 7 | 7.25 | 7.25 | 6.12 | 2.93 | 3 | 5.2 |
| 7/8*6 | 18 | - - | - - | - - | 4.75 | 2 | - - | 7.2 |
| 7/8*12 | 245/8 | 8.38 | 8.88 | 9.36 | 6.67 | 3 | 4 | 7.2 |
| 7/8*18 | 305/8 | 10.25 | 10.6 | 11.44 | 8.75 | 4.12 | 4 | 7.2 |
| 1*6 | 205/8 | - - | - - | - - | 6.41 | 2.5 | - - | 10 |
| 1*12 | 265/8 | 11.25 | 12 | 12.88 | 8.9 | 3.86 | 5 | 10 |
| 1*18 | 325/8 | 14 | 14.75 | 16.1 | 11.7 | 5.5 | 5 | 10 |
| 1*24 | 385/8 | 17 | 17.75 | 18.6 | 14.3 | 7 | 5 | 10 |
| 11/4*6 | 20 | - - | - - | - - | 10.4 | 4 | - - | 15.2 |
| 11/4*12 | 297/8 | 19 | 21.2 | 23.6 | 14.2 | 5.93 | - - | 15.2 |
| 11/4*18 | 357/8 | 24.1 | 26 | 26.6 | 18 | 8 | - - | 15.2 |
| 11/4*24 | 417/8 | 25 | 28.7 | 31.2 | 21.8 | 10 | - - | 15.2 |
| 11/2*6 | 221/2 | - - | - - | - - | 15.4 | 5.8 | - - | 21.4 |
| 11/2*12 | 323/8 | 27 | 31.1 | 35.5 | 20.5 | 8.4 | - - | 21.4 |
| 11/2*18 | 383/8 | 31.2 | 36.4 | 40.7 | 26.2 | 11.5 | - - | 21.4 |
| 11/2*24 | 443/8 | 38.2 | 44.2 | 47.6 | 31.4 | 14.1 | - - | 21.4 |
| 13/4*6 | - - | - - | - - | - - | 22.7 | 8.75 | - - | 28 |
| 13/4*18 | 413/4 | 45 | 48.8 | 52.4 | - - | - - | - - | 28 |
| 13/4*24 | 473/4 | 58 | 60 | 64 | 43.9 | 19.5 | - - | 28 |
| 2*6 | - - | - - | - - | - - | 31.5 | 12.5 | - - | 37 |
| 2*24 | 513/4 | 90 | 102 | 115 | 60.3 | 27.5 | - - | 37 |
| 21/2*6 | - - | - - | - - | - - | 60.8 | 27 | - - | 60 |
| 21/2*24 | 581/2 | 183 | 180 | 200 | 110 | 54 | - - | 60 |
| 23/4*24 | 611/2 | 180 | 214 | 248 | - - | 54 | - - | 75 |
Qingdao Thinkwell Hardware & Machinery Co., Ltd is the manufacturer deals in Rigging Hardware, Forged Engine Connecting Rod and Automobile Forging Parts over 10years.
Our rigging hardware factory covers an area of 8, 000 square meters and its architectural area is 5, 000 square meters. It has over 100 staff, including 3 engineers, 10 specialized technican, owned advanced machinery and equipment.
Rigging Hardware Equipment:
1)1000 T forged pressing machine,
2)160T/300T/400T/630 T forged pressing machine,
3)2 production line, include a set of punch, thread rolling machine, tapping machines, lathes, milling machines.
In 2009, our company invest over five millions to our cooperate company and bulit two new advanced intermediate frequency induction heating, forging forming, heat quenching forging production lines to produce Automobile forging parts and Engine Connecting Rod. In April of 2010, get TS16949 international quality system certification. Our Auto forging parts and Connecting Enjoying good reputation in domestic and world market because of good quality and competitive price.
Main Equipment for Automobile Forging parts and Connecting Rod:
1)1600T/1000T/630T Forged Pressing Machine
2)800 kw intermediate frequency induction furnace
3)The pusher-type continuous tempering furnace
Rigging Hardware Products: Load Binders, Turnbuckles, Shackles, Hooks, Wire Rope Clip, Wire Rope Thimbles, Eye Bolts&Nuts, Connecting Links, Anchor, Chain Accessories...etc.
Automobile Forging Products:
1. Automobile, engineering machinery forging parts.
2. Automobile steering arm, rack forging parts
3. Automobile, engineering machinery engine connecting rod assembly
Customized forging parts welcomed
"Our Service, Your Safety", "Customers Demand, Our Pursuit ". To provide the most suitable products and pragmatic services is our firm belief. We can design and manufacture varies of products according to customers requirements. We have been putting the priority to the QUALITY, SINCERITY, EFFICIENCY, and SERVICE.
Sincerely wish long-term cooperation between you and us. Warmly welcome to our company for a visit.
