| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| S16: |
Z20 |
| Surface Treatment: |
Forged |
| Feature: |
Forged |
| Chain Size: |
Z16,20,30,25, |
| Color: |
Grey |
Product Description

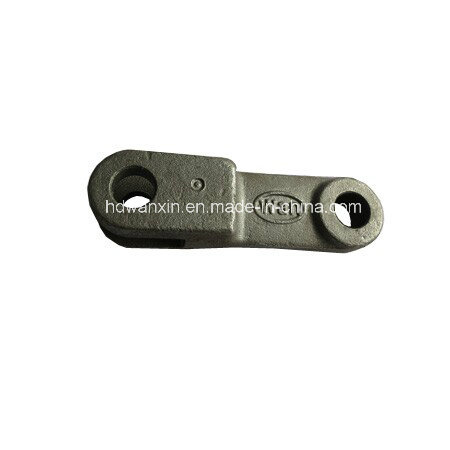

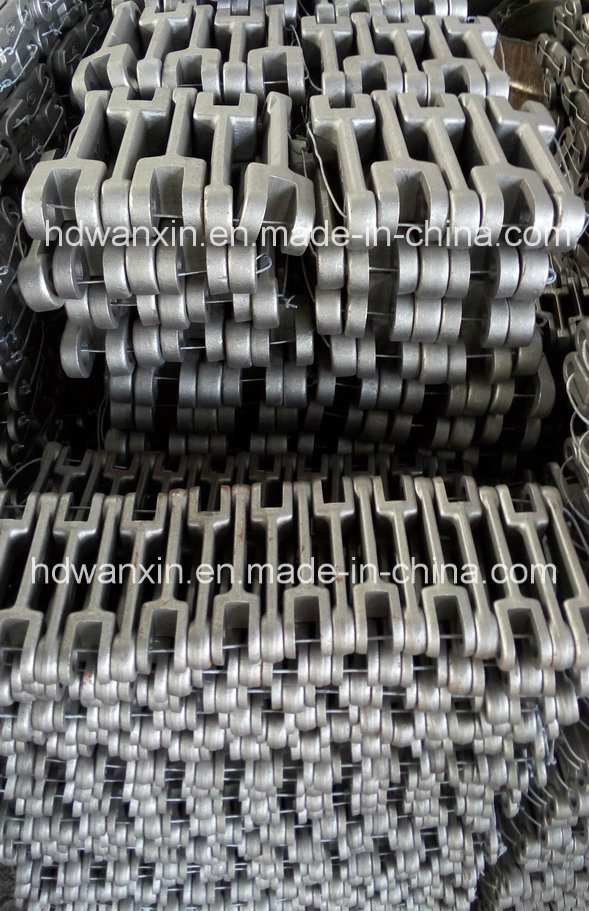

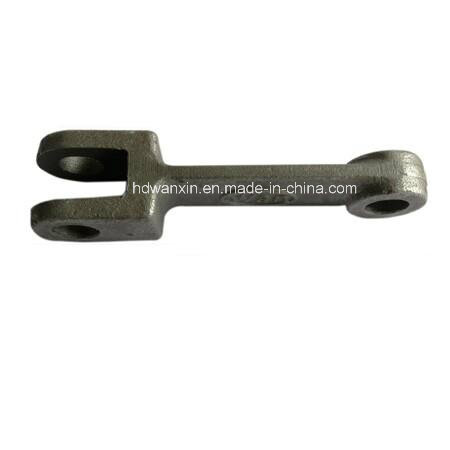

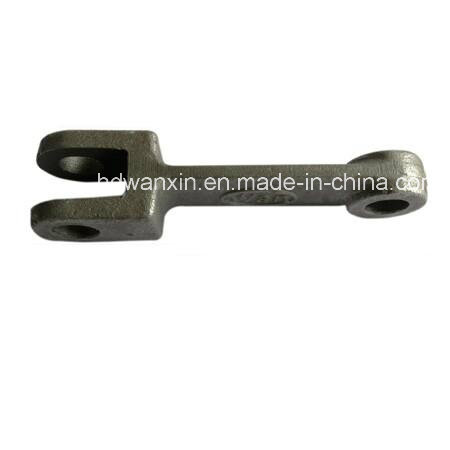

Hubei Wanxin Precision Casting & Foring Inc is a professional casting and forging manufacturer with more than 20 year's experience.We have supplied our chain (link) to many customers. All chain are forged by 40Cr,20 CrMnTi ,35CrMo and other material.All chain have been heat treated in procession to guarantee mechanicl properity. Some of them can be welded according to your request!Specail size can be forged according to your design.
| P | T | t | b | H | h | d |
| S16 | 100 | 30 | 15 | 16 | 27 | 8 | φ14 |
| Z16 | 100 | 40 | 18 | 20 | 35 | 12 | φ17 |
| S20 | 125 | 34 | 17 | 18 | 35 | 8 | φ17 |
| YD250 | 125 | 38 | 18 | 20 | 38 | 10 | φ18 |
| Z20 | 125 | 50 | 24 | 26 | 46 | 15 | φ20 |
| Z20D | 125 | 52 | 24 | 26 | 60 | 16 | φ26 |
| S30 | 142 | 46 | 22 | 23.5 | 49 | 14 | φ25 |
| Z30 | 142 | 64 | 28.5 | 30.5 | 50 | 18 | φ25 |
| 142N | 142 | 43 | 19 | 22 | 50 | 12.5 | φ25 |
| 150 | 150 | 38 | 18 | 19 | 40 | 10 | φ18 |
| 150D | 150 | 60 | 28 | 30 | 70 | 18 | φ30 |
| S25 | 160 | 48 | 23 | 25 | 39 | 13 | φ20 |
| Z25 | 160 | 58 | 28 | 30 | 55 | 18 | φ25 |
| Z25D | 160 | 66 | 29 | 31 | 64 | 22 | φ28 |
| 3006 | 200 | 65 | 30 | 33 | 70 | 24 | φ32 |
| S55D | 200 | 87 | 38 | 40 | 85 | 30 | φ36 |
| MS55 | 200 | 80 | 35 | 38 | 70 | 25 | φ28 |
| ML40 | 200 | 48 | 23 | 25 | 58 | 18 | φ25 |
| ML40A | 200 | 48 | 24 | 25 | 58.2 | 18 | φ25 |
| M;40B | 200 | 56 | 26 | 28 | 58.2 | 16 | φ25 |
| MS32 | 200 | 42 | 20 | 22 | 50 | 12 | φ25 |
| MS32C | 200 | 42 | 20 | 22 | 50 | 12 | φ20 |
| MG20 | 200 | 70 | 27 | 29 | 70 | 21.5 | φ35 |
| YD310 | 200 | 41 | 20 | 21 | 46 | 12 | φ20 |
| 305 | 260 |
|
|
|
|
| φ32 |
| 305XY | 305 | 66 | 28 | 30 | 130 |
| φ60 |
Hubei Wanxin Precision Casting & Forging Inc located in the entrance of Three Gorge of Yangtze River, south bank of Yichang city. Covering an area of 4000 square meters, Possessing precision foundry factory, precision forging factory, mold and CNC machining center. It's listed company on Wuhan Stock Exchange in Oct, 2013 (stock No.: 10079).
Our company has advanced investment casting line, V-process Casting line, Forging line, Environment friendly continuous heat treatment furnace, as well as the top testing equipment in the industry. Now we mainly supply all kinds of excavator bucket, bucket teeth & adapters, side cutter, concrete pump elbows and many precision casting machinery parts; Various concrete pump couplings(pipe clamps), car connection rods, conveyor chains and some other precision forging products. We can develop and design all kinds of V mould, precision casting mould and forging upon special request. Trade mark: WANXIN® ".
We have most advanced physicochemical inspection equipment including: Spectrum which inspect and analyze chemical composition, Metallography microscope which testing the microstructure and crystallization. Universal testing machine which testing tensile, yield, elongation and reduction. Impact testing machine which testing AKV of the parts. Integrated automatic temperature controller, Sclerometer and so on. In 2005, our company has been certified by ISO/9001-2008.
Our company has independent R & D department, which specialized in developing new products. We have got 2 invention patents and 10 patents for utility model so far. Our company has been confirmed as National Hi-tech enterprise. And one of our technology has been approved as important technology achievement in Hubei province. Many products have filled blanks of China and industry. And reached the international level. Wanxin company have been cultivated as a key enterprise in our province and city.
We can develop all kinds of casting and forging according to your special design or sample. Normal steel material all are available. Hope you can test our products.
