| Prod Model: |
SDRG011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/8--15/8'' |
Product Description
Rigging hardware
Standard: DIN, BS, ANSI, JIS
Certificate: ISO
Materials: Malleable iron, carbon steel, alloy, stainless steel
Produced by: Sand cast, die cast, stamp, forging
Surface: Self color, elec Galv, Hot dipped Galv
Type: Shackle, Turnbuckles, Hooks, Links,
Ratchet bindes, Clevis,
Eye bolts, Eye nuts, Swiveles, Thimbles
Wire rope Clips, Anchors, Chain & Wire rope.
Size: 1/4"-2"
Packing in poly-wooden cases or poly-wood pallets.
Payment: LC, TT, DP

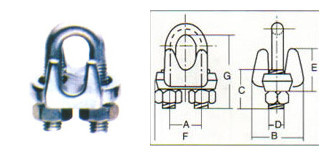

| size (in) | dimensions (in) | 100/wt kg |
| A | B | C | D | E | F | G |
| 1/8 | 12 | 20 | 11 | 7/32 | 10 | 23 | 18 | 2.3 |
| 3/16 | 15 | 23 | 14 | 1/4 | 12 | 29 | 24 | 4 |
| 1/4 | 19 | 30 | 15 | 5/16 | 16 | 36 | 26 | 8 |
| 5/16 | 22 | 33 | 19 | 3/8 | 18 | 43 | 35 | 14 |
| 3/8 | 25 | 41 | 19 | 7/16 | 23 | 49 | 38 | 19 |
| 7/16 | 30 | 46 | 25 | 1/2 | 26 | 58 | 47 | 32 |
| 1/2 | 30 | 48 | 25 | 1/2 | 28 | 58 | 47 | 34 |
| 9/16 | 33 | 52 | 32 | 9/16 | 31 | 63 | 57 | 45 |
| 5/8 | 33 | 52 | 32 | 9/16 | 34 | 63 | 60 | 45 |
| 3/4 | 38 | 57 | 36 | 5/8 | 35 | 72 | 70 | 68 |
| 7/8 | 44 | 62 | 41 | 3/4 | 40 | 80 | 79 | 109 |
| 1 | 4751 | 66 | 46 | 3/4 | 45 | 88 | 89 | 113 |
| 1 1/8 | 51 | 71 | 51 | 3/4 | 48 | 91 | 98 | 131 |
| 1 1/4 | 59 | 80 | 54 | 7/8 | 56 | 105 | 108 | 195 |
| 1 3/8 | 60 | 80 | 59 | 7/8 | 59 | 106 | 118 | 209 |
| 1 1/2 | 66 | 87 | 60 | 7/8 | 62 | 113 | 125 | 245 |
| 1 5/8 | 70 | 92 | 66 | 1 | 68 | 121 | 135 | 318 |
We are one of the biggest manufacturers and exporters of Pipeline products in China. We supply butt-welding pipe fittings, stainless steel screwed pipe fittings, forged steel flanges, cast iron valves, cast steel valves, stainless steel valves, balance valves rubber expansion joint, and much more. With many years of effort and support from our valuable customers, these products have obtained a big marker share in the world. At present our products have been export to Asia(Singapore, Tailand, Saudi Arabia, Bahrain, Yemenm, Jordan)Europe(Gemany, Italy, Spain, France, Portudal, Poland)Africa(Egypt, , Camaroon, Morocco)America(USA, Chile, Peru, Panama, Brazil, Paraguary Mexico)
Our business policy is noted for four "F":
Quality First Reputation First.
Customer First Price Fair.
Friends, traders and manufacturers all over the world are welcome to join us establishing and developing business relations on the basis of equality and mutual benefit under the principle of "Provide The World Market With High Quality Goods And Best Service".
Any information, samples and drawing s that you can provide will facilitate us to make the correct supply to meet your special requirement.
