Product Description

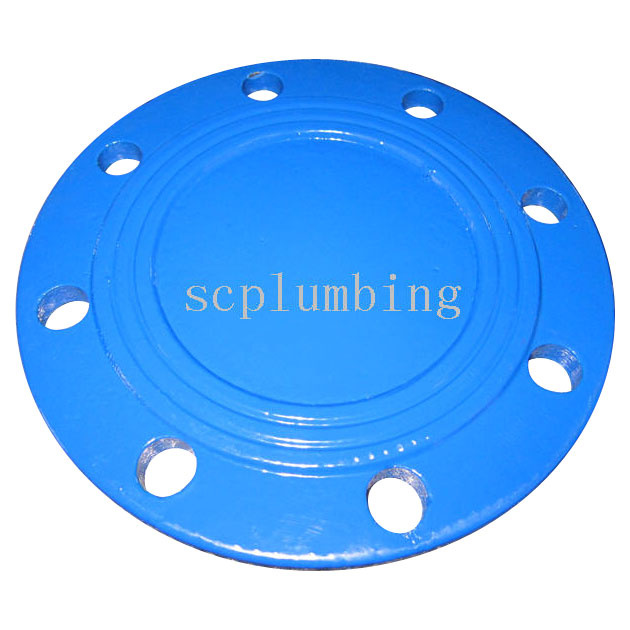

Ductile Iron Blank Flange-- BS EN545 or ISO2531 with Black Bitumen or Fusion Bonded Epoxy coating, the diameter from 80mm to 2000mm.
Basic Info
Model NO.: DN80-800mm
Material: Ductile Iron
Pressure: PN10, PN16, PN25
Manufacturing Way: Casting
Standard: ISO 2531 or Bs En545
Type: Weld or Thread
|
D.I Blank Flange (K=12) |
|
|
|
(nuit:mm) |
|
Nominal Diameter |
a |
b |
K and R |
h |
Mass(kg) |
|
DN |
|
|
|
|
PN 16 |
|
50 |
19 |
16 |
/ |
/ |
3.2 |
|
65 |
19 |
16 |
/ |
/ |
3.5 |
|
80 |
19 |
16 |
/ |
/ |
3.9 |
|
100 |
19 |
16 |
/ |
/ |
4.8 |
|
125 |
19 |
16 |
/ |
/ |
5.6 |
|
150 |
19 |
16 |
/ |
/ |
8.1 |
|
200 |
20 |
17 |
/ |
/ |
11.4 |
|
250 |
22 |
19 |
/ |
/ |
16.6 |
|
300 |
24.5 |
20.5 |
/ |
/ |
23.5 |
|
350 |
26.5 |
22.5 |
325 |
71 |
34.5 |
|
400 |
28 |
24 |
375 |
80 |
46 |
|
450 |
30 |
26 |
425 |
88 |
60 |
|
500 |
31.5 |
27.5 |
475 |
97 |
79.5 |
|
600 |
36 |
31 |
575 |
114 |
125 |
|
700 |
39.5 |
34.5 |
675 |
131 |
163 |
|
800 |
43 |
38 |
775 |
148 |
228 |
