| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet, Manmade Wooden Case or as Your Requirement |
| Coating: |
Anti-Rust Bituminous Coating |
| Origine: |
Qingdao |
| Brand: |
Chifine |
| Certificate: |
ISO9001 |
| Service: |
OEM and ODM |
| Supply Ability: |
1000 Ton/Tons Per Month |
| Type: |
Clay Wet Sand |
Product Description

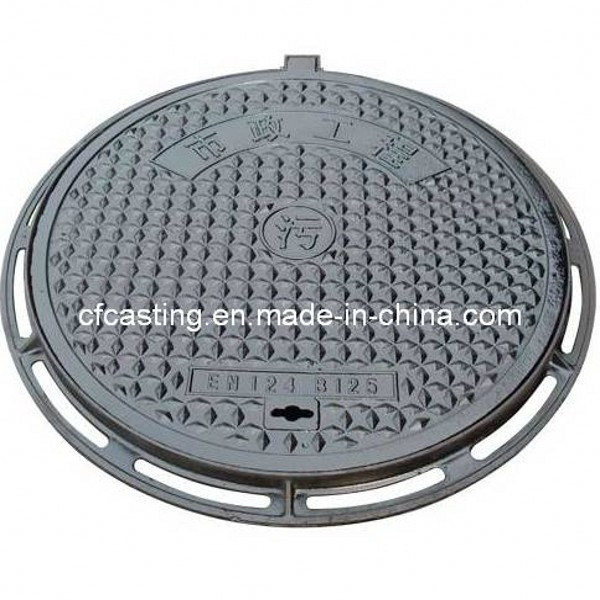

Ductile iron sand casting manhole cover
1) Sizes and unit weight are accurate.
The highest workmanship assures the accurate size and unit weight.
2) superior quality.
3) on-time delivery
4) OEM service available
5) competitive price
Tested item standad
Anti-breaking strength (Mpa)>14
Impact toughness resistance (kg/cm2)>95
Tensile strength (Mpa)>10
Compressive strength (Mpa)>30
Modulus of elasticity(kg/cm2)>1.4*104
Cold-hot resistance measure<0.4
Water-absorption<1.0
Our advantage:
1) strong enginnering team make high quality
2) OEM service in casting
3) ISO9001: 2008 quality control
4) all standard and special size are available with drawing
5) own test equipment and professional casting mould development
6) perfect service
7) OEM supplier, we have a foundry and a machining shop.
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China. It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
name
|
Round manhole cover
|
material
|
ductile iron GGG50/7, gray iron
|
standard
|
EN124/1433/1563
|
class
|
A15,B125,C250,D400,E600,F900
|
shape
|
Round
|
Size
|
600*600,840*840, 850*850 or as per customers' drawing
|
paint
|
bituminous black
|
advantage
|
Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearance
|
molding
|
DISA Line
|
process
|
Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection
|
application
|
footway, pedestrians, car parks, aircraft pavements
|
certificate
|
BSI, ISO9001:2000
|
Strict quality control
|
Tensile strength: 500Mpa Yield stress : 320Mpa
Elongation rate : 7%
Hardness: HBS170-230
|
Main products
|
Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Auto parts
|
other information
|
we can cast and process any type of iron casting products according to customers' drawing or samples
|
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
