| Prod Model: |
CFMS-68 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |

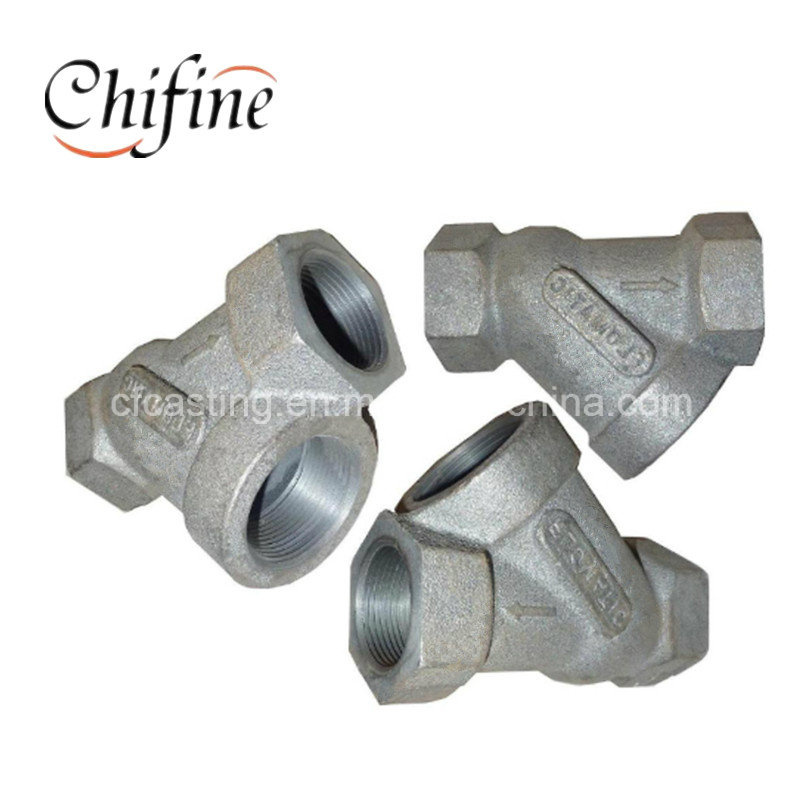

Sand Casting Part |
| Brand Name: |
Chifine |
| Material Available: |
Iron, Alloy, Steel, Aluminum, etc |
| Model No.: |
Valve Parts 68 |
| Usage: |
Automobile; Agriculture, Machinery, Industry, etc |
| Dimension: |
Can Be Customized for Your Requests |
| Inspection: |
by Professional Measuring and Testing Devices |
| Country Of Origin: |
China |
| OEM: |
Available |
| Package: |
Wooden Case or as Your Requests |
| Type: |
Clay Wet Sand |
Product Description
Product Description:
- Material: gray iron, ductile iron, malleable iron, steel, aluminum
- Process: Sand casting +CNC machining
- Weight: Range from 0.1kg to 8000kg
- Sand: Resin sand, hot sand, green sand molding for option
- Surface finish: paint, E-coat, epoxy powder coating, zinc plating...
- OEM service is available
Service:
*OEM&ODM are provided.
*24 hours online technical support.
*Equipped with advanced inspection facilities and the professional inspectors for the products' testing and inspection.
*Customized orders are welcomed.
*Sample will be offered before the trial order.
Advantages:
*We have our own R&D team for technical support.
*Equipped with advanced inspection facilities and professional inspectors.
*Our conversation will be absolutely confidential to the third party.
Company Information:
Qingdao Chifine Machinery company is the manufacturer for various Metal castings with over 10 years' experience. Our products are widely applied in Agriculture machinery, Machine tool, Aumobile industry, Railway, Aircraft industry, Shipping and Engineering.
Material | grey cast iron, ductile cast iron, steel, stainless steel, brass, copper, bronze, aluminum, zinc etc |
| Process | sand casting, precision casting, CNC machining |
| Surface finish | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| Certificate | ISO9001 |
| Service | OEM service available |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
