| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package: |
Pallet ,Manmade Wooden Case or as Your Requirement |
| Certificate: |
ISO 9001 SGS CE |
| Valve Parts: |
Valve Handwheel |
| Material: |
Ductile Iron En1563/Ggg |
| Origine: |
Qingdao |
| Machining: |
CNC Turning Milling Drilling Lathe |
| Service: |
OEM and ODM |
| Delivery Time: |
30 Days After Receiving The Payment |
| Type: |
Clay Wet Sand |
Product Description

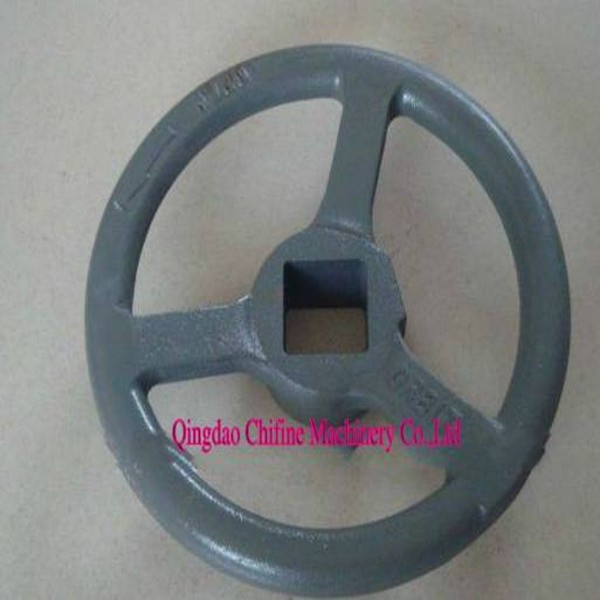

Customized cast iron/ductile iron/cast steel handwheel
1. Materials:
1) GB/T1348-1988 HT 150-HT250, QT450-10, QT500-7
2) ATSMA536 65-45-12 ASTM 70-50-05
3) EN1563: 1997 EN-GJS-450-10
2 process sand casting, precision casting, lost wax casting, die casting, forging, stamping, machining etc
3 machine lathe, CNC, drilling machine, milling machine, boring machine
4 capacity max diameter: 1M, max weight: 200KG
5 surface treatment powder coating, painting, spraying, coppering
6. Standard JIS, ANSI, DIN, BS, GB
OEM and Customized Service
1. Quality guarantee
Chemical checking
NDE after rough machining
Machanical testing after heat treatment
Final NDE, dimension inspected
2. Quality document
Full Q. A document as per client request
3. Packing and Shipping
Standard export package(carton/wooden case/pallet)
Accept FOB, FAS, CNF, CIF door to door etc or customer designated shipping agent'
Qingdao Chifine Machinery Co., Ltd is one famous company in China which specialized in various metal casting products with over 10 years experience located in Qingdao China. It covers a comprehensive range of forging, stamping, sand casting, investment casting, die casting and machining and was widely used in Agriculture machinery, Motor Vehicle, Architecture, Railway and Engineering
As a professional company, Chifine have four groups of experienced teams to be in charge of different work:
Project team-customer service
Engineering team-provide R&D and technical support
QC team-productive process control and incoming parts inspection
Warehouse team-warehouse management and logistic service
| Service | OEM service offered as the customers`drawing,samples |
| Casting material | cast iron,ductile iron,grey iron,stainless steel,alloy steel,aluminum,aluminum alloy |
| Standard | ISO ASTM GB ASTM DIN JIS etc |
| Process | drawings-mould making-raw casting-sandblasting-rough machining-finish machining-surface treatment-product inspection-packing-delivery |
| Surface treatment | heat treatment, sand blasting,polishing,electro-plating,chemical plating,painting |
| Equipment | melting furnance,casting machines,drill machine,laser cutting lathes,CNC machines,grinding machines,punching lathes,mill machines |
| Inspecton | spectrum analysis insrument,tensile strength tester,hardness tester,roughness tester,impact test machine,pressure tester,altimeter |
Qingdao Chifine Machinery Co., Ltd is One Famous Company in China Which Specialized in Various Metal Casting Products with Over 10 Years Experience Located in Qingdao China. It Covers a Comprehensive Range of Forging, Stamping, Sand Casting, Investment Casting, Die Casting and Machining and Was Widely Used in Agriculture Machinery, Motor Vehicle, Architecture, Railway and Engineering Chifine Has Accumulated Important and Valuable Experience in Design, Manufacturing and Customer Service Over These Years We Will Continue to Integrate Our Technical Superiority, Improve Process and Quality to Increase Market Share and Create More Brilliant Future.
Automative Casting Line:
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
• Product Size: 0-1000mm.
• Weight: 0.2kg-100kg
Resin Sand Casting
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel casting(ASTM/UNS; DIN; JIS; NF; BS; ISO)
• Product Size: 0-1500mm.
• Weight: 10kg-5000kg
Shell Mould Casting
Shell casting is one of resin sand casting process.
It is suitable for thin-wall casting parts, be free from porosity.
• Material: Grey iron(GG20-GG35); Ductile iron(GGG40-GGG60);
Malleable cast-iron(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Steel alloy; Aluminum alloy; Copper alloy.
• Product Size: 0-500mm.
• Weight: 50g-100kg.
• Wall thickness: 4-20mm
Lost Wax Casting
• Advanced wax-injection-machine and tool to ensure accurate wax-patten.
• Stable temperature and humidity environment make the wax-patten no deformation.
• Material:
Carbon steel; Stainless steel; Alloy steel.
Grey iron(GG20-GG35).
Ductile iron(GGG40-GGG60);
Malleable cast-iron
(GTS35-10/45-06/55-04/65-02, CTW35-04/05/06/07).
Aluminum alloy; Copper alloy.
• Casting size: 0-500mm.
• Casting weight: 50g-100kg
Stamping and Forging Line
• Stamping and forging equipment: 16T-300T press machine
• Automatic transport forging line
• Material: Carbon steel; Stainless steel; Alloy steel.
Aluminum alloy; Copper alloy.
Machining Shop
Our machining shop located in Qingdao, using the latest CNC equipment to provide our customer with high quality products.
• Horizontal and Vertical Machining Center
• CNC lathe and normal lathe
• CNC drilling and milling Center
• Other assistant equipment
