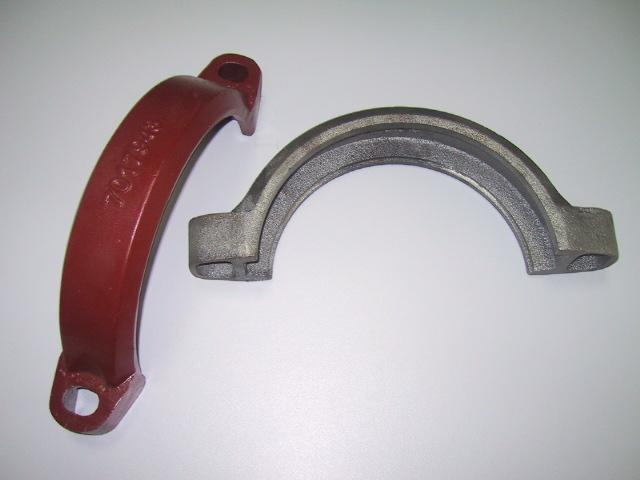

Ductile Iron Saddle Clamp Casting with Best Quality

Prod Model:	Saddle Clamp
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Molding Process:	Resin Sand/Green Sand
Molding:	Hand Molding/Molding Machine Z145/146/148/Molding
Possible Heat Treatment:	Annealing
Industry Involved:	Municipal Construction / Fluid /Automotive
Part Unit Weight Range:	0. 5kg-2000kgs
Max/Min Wall Thickness Requirements:	4mm-250mm
Type:	Clay Wet Sand

Product Description

ductile iron Saddle Clamp casting with best quality

Product Description
 Material: Grey Iron, Ductile Iron, Malleable Iron, Carbon Steel, Aluminum,Brass,Bronze, copper ,zinc, Stainless Steel(Little) etc
 Tolling process: Resin sand/Green Sand
Part unit weight range:0.5kg-20000kg
Max/Min wall thickness requirements: 4mm-250mm
Heat Treatment: Annealing, Quenching and tempering, Normalizing
Surface treatment: Paint,Anti-rust oil,Hot dipping galvanized,Powder coating
Products application: Machinery applications, automotive industry, lighting equipment, household appliances etc
Size and design :As per the customer's drawings and requirements
Sand casting Advantage: Low cost

1. Ductile Iron Castings:
1) molding process:	Resin sand/Green Sand
2) Material:	EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
3) Molding:	Hand molding/Molding machine Z145/146/148/Molding line.
4) Possible Heat Treatment:	Annealing
5) Industry involved:	Municipal Construction / Fluid /Automotive
6) Part unit weight range:	0. 5kg-2000kgs
7) Max/Min wall thickness requirements:	4mm-250mm
8) Manufacturer Certification:	ISO9001(2000)/ TS16949

2. Grey iron castings:
1) molding process:	Green sand/Resin sand
2) Material:	EN-GJL-150/DIN 1691 GG-15 EN-GJL-200/DIN 1691-GG20 EN-GJL-250/DIN1691-GG25 EN-GJL-300/DIN1691-GG30
3) Molding:	Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved:	Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range:	0.5kg-2000kgs
6) Max/Min wall thickness requirements:	4mm
7) Manufacturer Certification:	ISO9001(2000)/ TS16949

3. Malleable castings:
1) molding process:	Green Sand
2) Material:	Ferrite Malleable Iron KTH350-10, KTH370-12, KTZ2550-04
3) Molding:	Hand-molding/Mechanical molding/Molding machine/Molding line.
4) Possible Heat treatment:	Annealing, Normalizing, Quenching
5) Industry involved:	Power Transmission/Construction Industry
6) Part unit weight range:	0.2kg-15kgs
7) Max/Min wall thickness requirements:	4mm-10mm
8) Representative Product:	Insulator Caps/Fastener/Scaffold
9) Manufacturer Certification:	ISO9001(2000)
