| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Hydraulic Actuator |
| Standard: |
Nonstandard |
| Power: |
Hydraulic |
| Structure: |
Plunger Cylinder |
| Pressure Direction: |
Double-acting Cylinder |
| Material: |
Steel |
Product Description

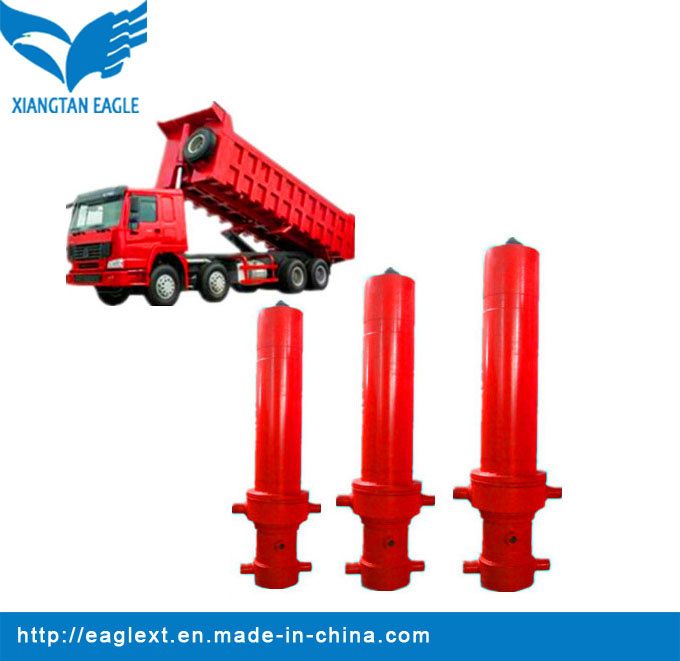

Multisage Hydraulic Telescopic Cylinder
Application: 5.0-5.4 meter dump truck
Stroke: 3900mm
Lifting Capacity: 30-60Ton
Piston Rod Stage: 3 stages
Cylinder Inner Diameter: 155mm
Installation Distance: 343mm
Selling Points of Our Hydraulic Telescopic Cylinder:
1. High precision, the outer and inner round of telescopic is processed by specific machine
2. Durable and corrosion, the Chrome thickness on the outer surface is up to 0.05mm
3. Stable quality, with imported seal material
4. The upper and lower support shaft is processed by overall forging to make its strength better.
5. In structure, our front lifting telescopic cylinder is mature and stable as European famous brands
6. In domestic market, most of the front lifting telescopic cylinder with 5390 stroke only have the maximum diameter of 180mm and minimum 100mm, but ours are 185mm and 110mm. So in theory, the lifting strength of our products upgrade 7%, and anti-flexural capacity increase 15%.
|
Reference Datas for Telescopic Hydraulic Cylinder(FC Series) |
|
Model |
Piston Rod stage (Stages) |
Stroke (mm) |
Lifting Capacity (tons) |
Cylinder Inner Diameter (mm) |
Installation Distance (mm) |
Suitable for Truck Body (m) |
|
FC155-3-03900 |
3 |
3900 |
30-60 |
155 |
343 |
5.0-5.4 |
|
FC155-4-04280 |
4 |
4280 |
30-60 |
155 |
343 |
5.4-5.8 |
|
FC175-4-04650 |
4 |
4650 |
50-80 |
175 |
343 |
6.0-6.4 |
|
FC175-4-05180 |
4 |
5180 |
50-80 |
175 |
343 |
6.4-6.8 |
|
FC198-4-05180 |
4 |
5180 |
60-95 |
198 |
343 |
6.4-6.8 |
|
FC198-4-05460 |
4 |
5460 |
60-95 |
198 |
343 |
6.8-7.2 |
|
FC198-4-05700 |
4 |
5700 |
60-95 |
198 |
343 |
7.2-7.6 |
|
FC198-4-06000 |
5 |
5780 |
60-95 |
198 |
343 |
7.6-8.0 |
|
FC198-4-06480 |
5 |
6180 |
60-95 |
198 |
343 |
8.0-8.4 |
Xiangtan Eagle is a company which can produce, export and service. It mainly engaged in production and sales of CNC cutting tools, hydraulic products and drilling machine. The customers are from different industry who are the professional portal, such as industry, construction industry, automobile industry, hydroelectricity, wood industry and so on.
Xiangtan Eagle is located in a high-tech Zone. Since establishing, expect the own products, Xiangtan eagle have established good strategic cooperative relations with other factories, so as to ensure that customers' growing demands and make sure the delivering goods on time.
The service purpose of Xiangtan Eagle is to meet the requirement of customers, offer the really quotation, guarantee the quality and the best service. We do believe that our first role is not a seller, but a purchasing consultant. And we can offer all kinds of technical guidance for free.
