| Prod Model: |
SSHJ2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
2 M³ |
| Usage: |
Powder |
| Raw Material: |
Feed , Elements, Chemicals, Pesticides |
| Certificate: |
CE, SGS |
| Type: |
Double Ribbon Horizontal |
| Warranty: |
2 Years Except The Spare Parts |
| Machine Colour: |
White |
| Mixing Time: |
30-120 Min |
| Blend: |
1000 Kg |
| Mixing Uniformity: |
≤3-5 CV% |
| Mixer Type: |
Double Ribbon Mixer |
| Working: |
High Speed Mixer |
| Application: |
Powder |
| Additional Capabilities: |
Drying |
Product Description

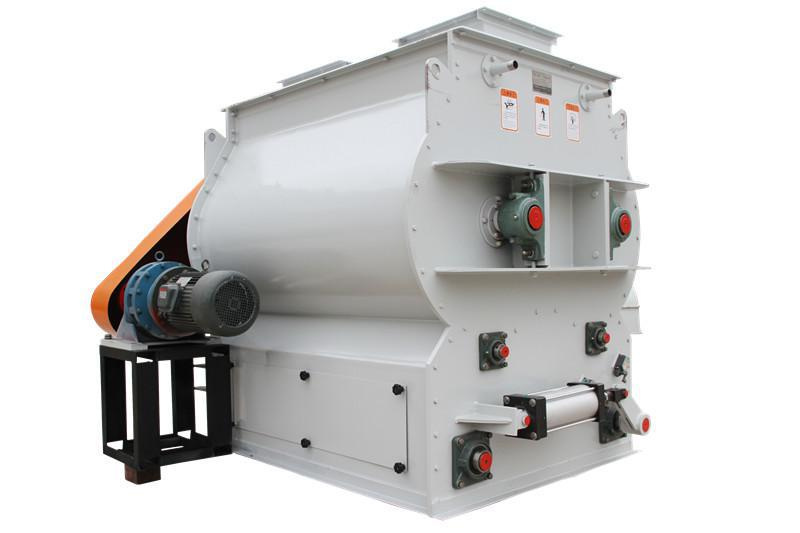

Easy Operation Biaxial Blade Type Efficient Mixing Machine
Introduction Of Efficient Mixing Machine
Twin-shaft paddle mixing machine is made of carbon steel.The mixing uniformity up to 95%(CV≤5%).Double pneumatic discharging door with quick discharging and low residue.Wtih low power consumption per ton material.Widly used in many different industries.This machine is run by chain,with high efficiency,steady.
Machine Features Of Efficient Mixing Machine
A.Equipped with high speed rotating fly knife, has function of quickly spread the fiber.
B.Gas phase balance device makes mixed more evenly.Pneumatic, manual discharging mode
C.High mixing precision, high speed, low energy consumption, can seal operation.Big open discharging reducing mixed blind Angle, discharge more clean, convenient, stable running.
D.Cylinder cover can decorate atomization device to realize the solid-liquid mixture.
Product function of Efficient Mixing Machine
The machine has short mixing time , the design of mixing time is 1 ~ 3 minutes,use the chain transmission, All forging rolling wheel, can started in full load condition;Blade can be replaced if wear , the whole machine is not scrap.In the horizontal cylinder body, two constant reverse rotation of stirring shaft, shaft arrangement on a special Angle of blade ensure radial, toroidal, axial three materials from moving away, form a composite circulation, mixing in a very short time.Shaft seal uses the German advanced labyrinth seal air pressure, discharge valve of the special structure to solve this kind of mixer discharge valve easy leakage problem of material.
The Main Technical Parameters and Performance Parameters Table
Model |
Volume
(m³) |
Blend
(kg) |
Mixing Time
(min) |
Mixing Homogeneity
(CV%) |
Power
(kw) |
SSHJ2 |
2 |
1000 |
30-120 |
3-5 |
15/18.5 |
SSHJ4 |
4 |
2000 |
30-120 |
3-5 |
30/37 |
SSHJ6 |
6 |
3000 |
30-120 |
3-5 |
37/45 |
SSHJ8 |
8 |
4000 |
30-120 |
3-5 |
45/55
|
Zhengzhou Leabon Import and Export Trading Co., Ltd is a professional supplier for separating machinery, pellet machine, briquette machine, pellet stove, wood crusher, sawdust dryer, and pellet making line, briquette making line, combining development, design, manufacture, sales and services. It enjoys professional production technology, superior manufacturing equipment and good testing means.
In order to meet different needs of customers, we have been constantly developing and improving product technology, quality, and process automation and after-sale service. Our unremitting efforts for years have bought us great trust from customers and our products enjoy fast sales abroad.
We don' T aim at maximizing profits, don' T aim at maximizing assets scale, and don' T lower quality to cater to markets at low price. We hold the management tenet: Guaranteed quality, quality goods, morality first, credit foremost. We take customers' Needs as our developing basis and take customers' Satisfaction as our goal. Reasonable levels of prices can meet different needs. We have been in the practice of quick serve, joining hands with personages of various circles to make sincere operation and common development!
