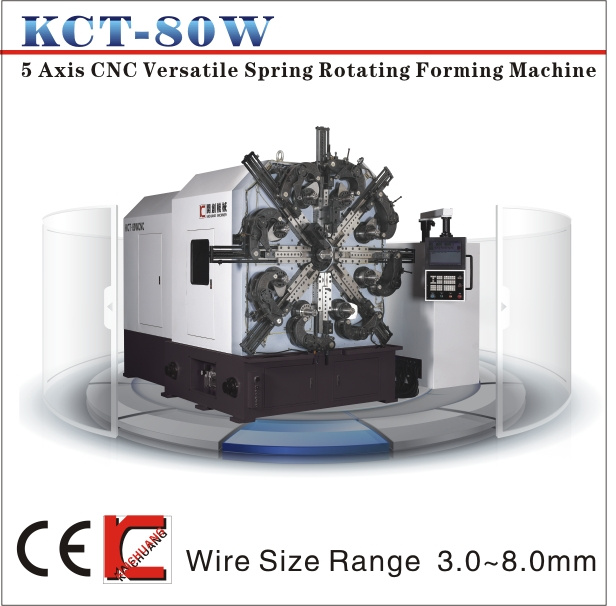

Efficient and Stable CNC Universal Versatile Spring Coiling Machine
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
KCT-80W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Forging Forming Method: |
Free Forging |
Product Description
1. TCK-80WCNC spring coiling machine combines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
2. TCK-80WCNC spring coiling machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
3. TCK-80WCNC spring coiling machine is able to produce torsion springs, compression springs, tension / extension springs, taper-spring, wire-forms and other related spring products.
4. It is designed for 4-6 axis, 4 axis is standard assignment (cam, wire feeding, wire rotary and rotary quill ) 2 servo spinner system are optional upon request.
|
Model |
TCK-65WCNC |
|
Axes Number |
4-5(6) |
|
Wire size range |
3.0-6.5mm |
|
Max. Outer Diameter |
110mm |
|
Max. Feeding length |
unlimited |
|
Feeding setting value |
+/-0.01-+/-9999.99mm |
|
Wire feeding speed |
0-75M/Min |
|
Cam Setting value |
+/-0.1-+/-359.9 |
|
Cam speed |
60RPM/Min |
|
Wire feeding motor |
11.0KW |
|
Cam Motor |
5.5KW |
|
Rotary quill Motor |
1.5KW |
|
Rotating wire motor |
3.0KW |
|
Spinner motor |
3.0KW |
|
Power AC |
380V 50Hz |
|
Dimension(LxWxH) |
3000x1900x2000mm |
|
Weight |
5000kg |
Dongguan Kaichuang Precision Machinery Co., Ltd., is one member of Springs Technology Group of Chinese Mechanical Engineering Society, which specializes in researching, developing, manufacturing and selling spring machineries. Its current leading products include: Spring machine series as well as automatic wire feeding machine series. The company introduces Taiwan controlling technology and has a long history of production. The products feature high precision of feeding, stable and precise shaping as well as novel and attractive appearance. They could be used to produce a variety of springs, such as left/right hand cylindrical draught spring, pressure spring and torsion spring, single conic spring and barrel-shaped spring, as well as retaining snap ring and abnormal-shape springs. The products are sold at home and abroad and are well received by clients.
The company has been constantly abiding by the guideline "Quality Priority, Customers First and Perfection" and insisting on the managerial principle of " Win Success by Quality and Pursue Economy of Scale". After years of hard work, the products have been among the top of domestic like products for many years. In the future global market with increasingly intense competition, Kaichuang Precision Machinery will continue to serve domestic and foreign clients through excellent quality, reasonable and competitive prices, punctual delivery time and perfect after-sale services, just as it did in the past. The company will provide clients with complete pre-sale, on-sale and after-sale services, and your consultation and enquiries are welcomed.
Our advantages:
1. The factory has about 15 years experience in this field, and the Founder Mr Liu has about 32 years experience for manufacturing the Spring Machine who witnessed the Spring Industry development in China.
2. A complete production line from Design, Own Processing centre for spareparts & worktable, Importing Japan SANYO and Yaskawa motors, Importing Taiwan Brand controlling system, Finishing operation, Inspection centre, Testing team and Professional vacuum packing with Fumigated wooden case.
3. A complete set of CNC Spring coiling machine & wire bending machine to processing the wire diameter from 0.15mm to 8.0mm, especially including the new technology of the Camless machine with wire rotation function and the applying of the Camera Spring Length Gauge on the Compression Spring Machine
4. Quality first, QA/QC is one of the most important departments in our company.
5. Over 150 skilled worker, 48 technicians and one group of 20 engineers.
6. Main market: Europe (UK, Italy, Sweden, Romania, Poland, Estonia, Russia, Turkey,
Africa (South Africa, Egypt, Tunisia),
Asia (Korea, India, Malaysia, Vietnam, Iran, Thailand),
South America (Brazil, Argentina, Colombia, Cuba, Mexico)
7. We have established customer oriented quality management system, strengthen lasting innovation and enhance after-sale services.
Our principle is "Quality first, Customer paramount, Keep improving"
Give your project to us, we "KCT" are going to do the best profession to you.
