Product Description
Main purposes and features of the equipment

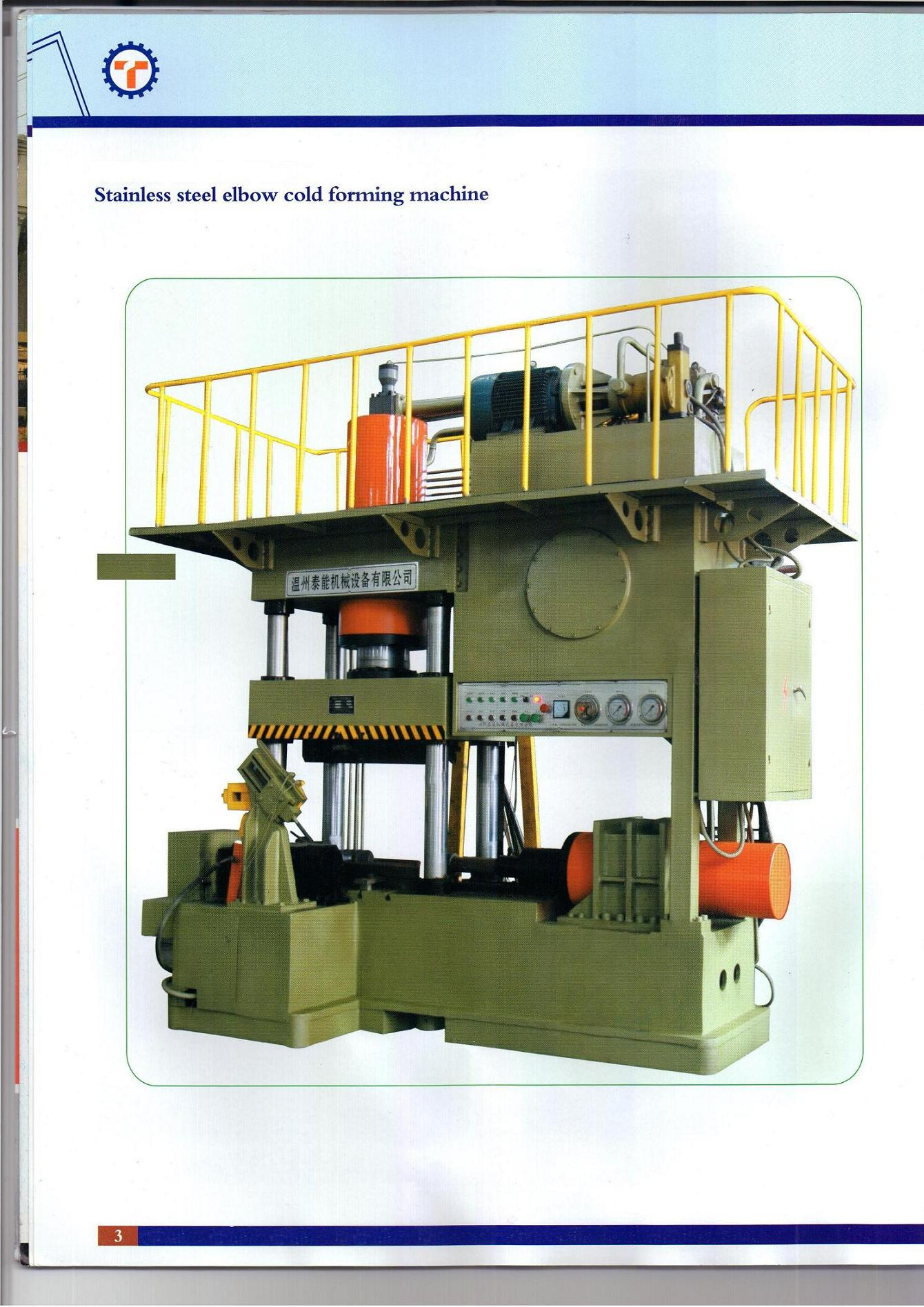

1\It is mainly used for pushing cold forming of stainless steel or carbon steel Elbow.
2\Characteristics: This machine has three kinds of manner of working such as the Manual, continuous and semi-automatic, two-way process of setting the agenda And the constant pressure. Hydraulic system adopts two Cartridge Valve Integrated system, electrical control system adopts PLC programmable controller And touch screen display.
3\The machine power system installed on top of the machine and installing a rack Platform, in order to reduce the area to facilitate maintenance.
Operating conditions of machine
1\The working environment temperature: 0-40º C
2\Power supplying: Three-phase four-wire system50Hz, 380V
3\Voltage fluctuation range: 380V± 10%
4\Medium hydraulic system uses: YB-N46 anti-wear hydrauº Clic oil
|
Model |
Size of processing
elbow
mm |
Clamping
force
kN |
Pushing
cylinder force
kN |
Rated working
pressure of
liquid
MPa |
Total power of
motor
kW |
Total weight
kg |
|
TNXY-100 |
Φ25-76 |
1000 |
630 |
25 |
11 |
6300 |
|
TNXY-200 |
Φ34-114 |
2000 |
1250 |
25 |
18.5 |
12000 |
|
TNXY-400A |
Φ133-273 |
4000 |
2500 |
25 |
29.5 |
38000 |
|
TNXY-400B |
Φ108-219 |
4000 |
2500 |
25 |
29.5 |
350000 |
|
TNXY-630 |
Φ133-325 |
6300 |
3150 |
25 |
26 |
48000 |
|
TNXY-800 |
Φ219-377 |
8000 |
4500 |
25 |
42 |
76000 |
|
TNXY-1000 |
Φ273-426 |
10000 |
5000 |
25 |
65 |
98000 |
|
TNXY-1600 |
Φ325-530 |
16000 |
8000 |
25 |
88.5 |
200000 |
|
TNXY-2000 |
Φ325-630 |
20000 |
10000 |
25 |
91.5 |
220000 |
Omilen company is located in the national development zone---Wenzhou economic and technical development zone (Binhaiyuan District), covering an area of 108, 000m', horizontal and vertical numerical-controlled sphere grinding machine, vertical gantry machining center, horizontal and vertical numerical-controlled machining centre, Pentahedron machine tool and various special equipments.
The company devotes itself to the innovative idea of reducing labor force cost for clients and realizes modernization of national industry, and to offering solutions of various manufacturing equipments and dedicated processing equipments for clients in industries as auto parts, valve, printing machinery and mould etc.
Excellent product quality is one of the most important core characteristic of Omilen forever.
Omilen company devotes to continuously promoting product quality and service capacity which applies advanced ERP management system to comprehensively control development and research, purchase, production and detection etc. The company invests nearly 500 million to build a modern energy-saving and environment-friendly production environment of 75, 000m', introduces machine tools as high-quality and high-precision large gantry pentahedron machine tool, numerical-controlled boring-mill machining center, horizontal and vertical machining center, slideway grinding machine, numerical-controlled worm abrasion wheel gear grinding machine, guide rail superaudio quenching heating processing equipment etc and important detection equipments as American Hexagon three-dimensional detector and British Ronixhaw laser interferometer so as to ensure zero defect of product quality.
We believe that excellent product quality can not be made. First-class products can only be created from ceaseless development, research and improvement, continuous repeated detection, harsh manufacturing technology and perfect quality management system.
Omilen converges a group of technology backbones with decades of experience and senior professional managers with moderate management capacity, who has been trained to be Omilen people of special corporate cultural ethos combined with various brand marketing team with active thoughts through a set of inner high-efficiency management system.
We take people as orientation, introduce and cultivate high-quality talents with innovative capacity continuously, collect domestic technology R&D center with excellent skilled personnel and undertake various technology researches positively. Omilen has been improving product performance continuously and obtaining trust of clients, winning titles of provincial high and new tech enterprises and municipal enterprise technology center in succession.
As the leading brand in the field, Omilen puts forward 5 services concept with technical force as the core: Sincerity, faith, closeness, comfort, relief and sets an example of service and quality.
No matter where clients are, we can meet their requirements in the first time, offering professional production distribution, installation and debugging, and technical instructions through organizing specialized technicians and special technical trainings to client technicians irregularly.
We have won good reputation from clients and huge market share for Omilen by the service concept: Customer focus.
