| Prod Model: |
SSDHL0.25-01S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Ssdhl |
| Fem: |
2m |
| ISO: |
M5 |
| Insulation Class: |
F |
| Application: |
Small Crane |
| Power Source: |
Electric |
| Sling Type: |
Chain |
| Certification: |
ISO9001:2000 |
Product Description

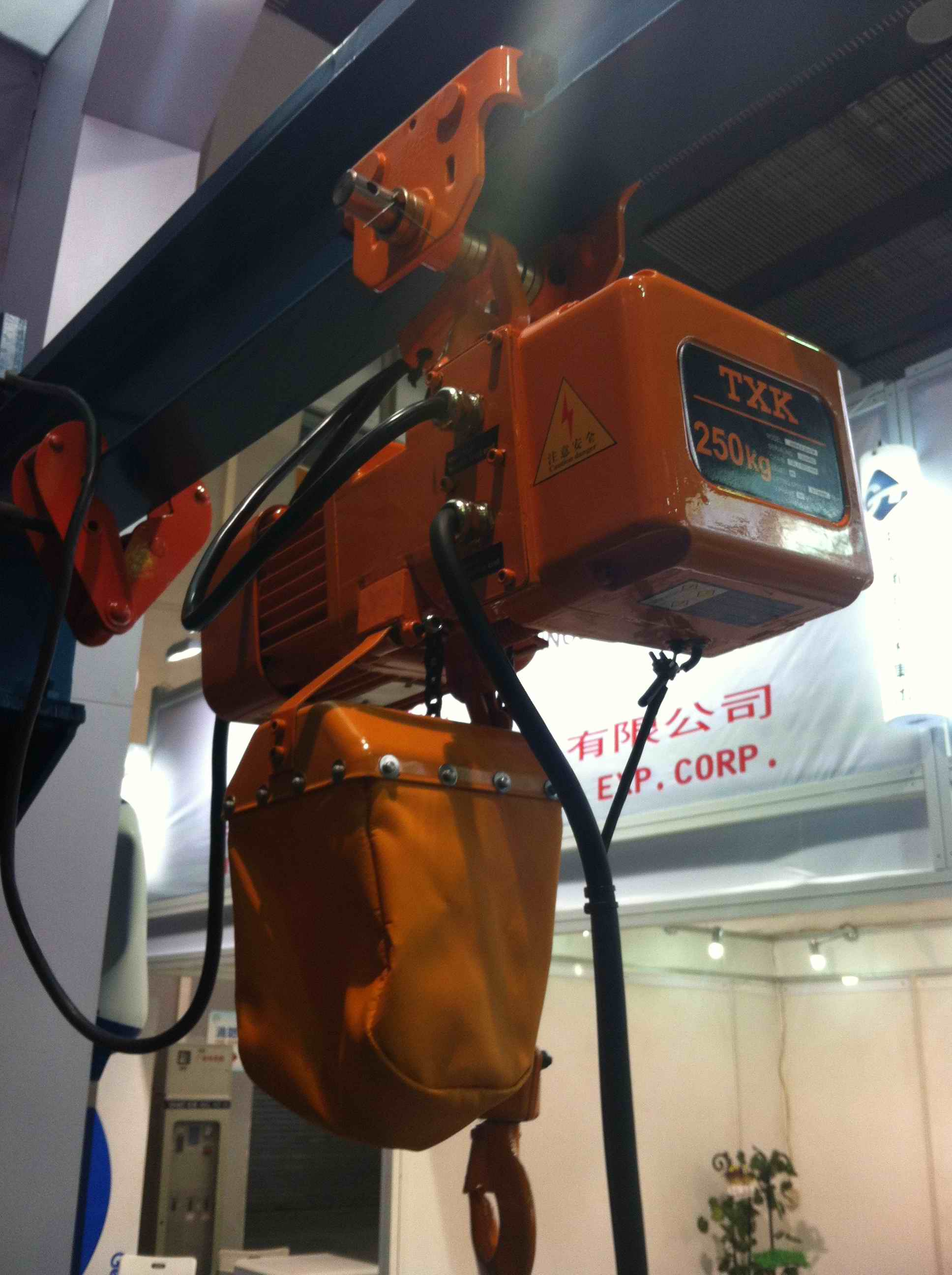

Details of Electric Chain Hoists:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Advatages: Solid and light
Fast release heat
Continuous use
Enclosed structure
Can be used in the chemical plants, electroplating factories, and other places.
2. Clutch
Safe device.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Inverter
Advatages: Operator can choose any speeds as they want.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2M
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB
Model |
0.25-01 |
Capacity (t) |
0.25 |
Lifting model |
single speed with clutch |
Lifting speed (m/min |
9.1 |
Motor power (kw) |
0.56 |
Rotation speed (r/min) |
1440 |
Insulation grade |
F |
Power supply |
220v - 690v |
Control voltage |
24v/36v/48v |
No. of chain |
1 |
| Spec. of load chain | 4.0 |
