| Prod Model: |
GW-0.5-350/1JJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Iron, Steel, Copper Melting |
| Capacity: |
500 Kg |
| Furnace Body Quantity: |
2 Units |
| Furnace Body Type: |
Aluminum Shell Furnace Body |
| Tilting Type: |
Electromechanical Tilting |
| Usage: |
Industrial |
Product Description
Application

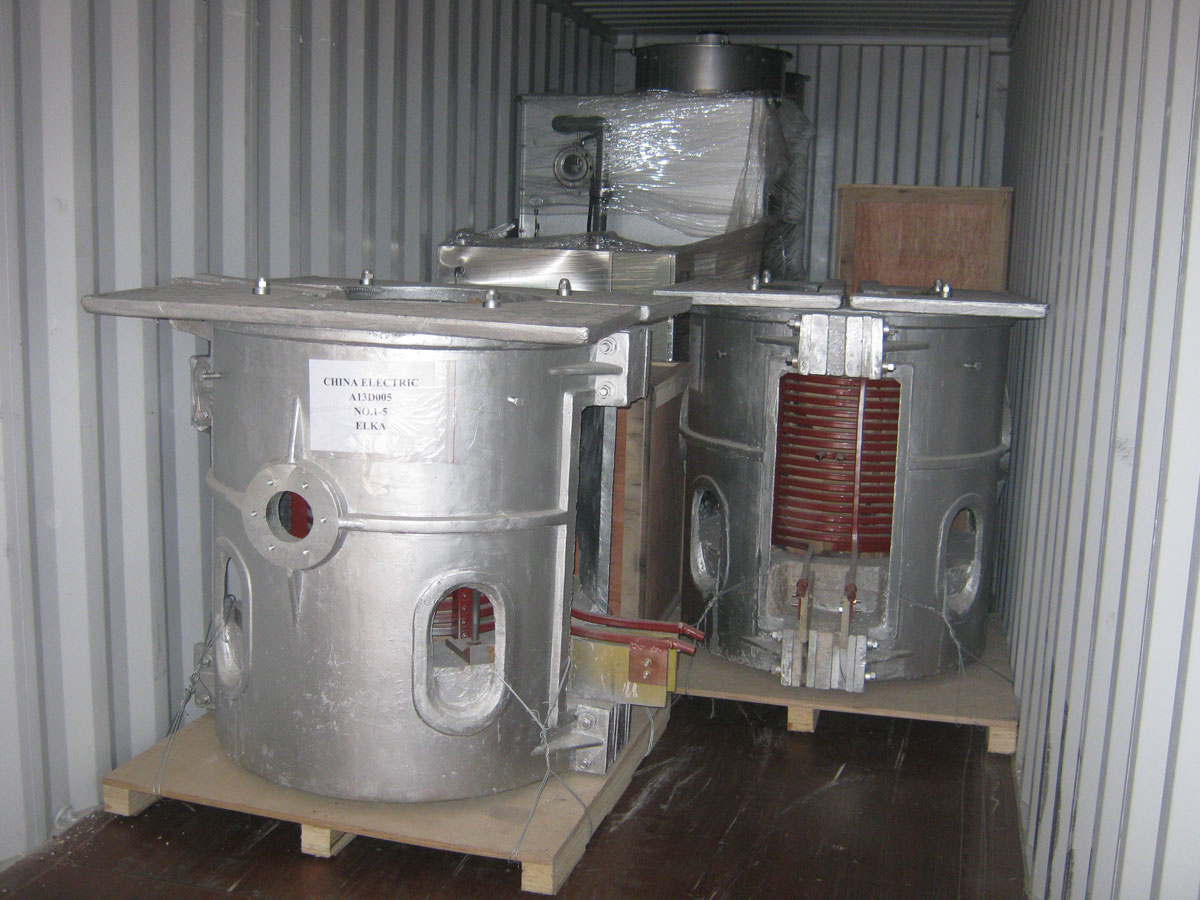

This GW-JJ Series Electric Melting Induction Furnace, aluminum shell mechanical tilting, is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy.
It is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.
Electrical Feature:
1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
2. Frequency-sweep zero voltage start, high success rate, no shock;
3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
4. Auto phase sequence adaptation, free of synchronization;
5. Good performance in reload staring, auto recovery;
6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine
Model explanation ( GW-1-750/1JJ for example}
GW--------Aluminum Shell Electric Melting Induction Furnace
-1-------Rated Capacity 1 Ton (1000kg)
-750-------Rated Power 750Kw
/1--------1000Hz (1kHz)
-JJ-------Mechanical tilting (by electric motor and gear)
|
Model |
Input Power |
Input Volt. (6pulse) |
Incoming Curr. |
Rated Power |
DC Curr. |
DC Volt. |
Melting Rate |
Working Freq. |
Working Volt. |
Rated Capacity |
Power Consumption |
|
Kw |
V |
A |
Kw |
A |
V |
T/H |
Hz |
V |
T |
KWH/T |
|
GW-0.01-50/1JJ |
60 |
380 |
76 |
50 |
140 |
400 |
0.06 |
1000 |
750 |
0.01 |
850 |
|
GW-0.03-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.09 |
1000 |
750 |
0.03 |
850 |
|
GW-0.05-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.12 |
1000 |
750 |
0.05 |
800 |
|
GW-0.08-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.12 |
1000 |
750 |
0.08 |
800 |
|
GW-0.15-100/1JJ |
100 |
380 |
160 |
100 |
200 |
500 |
0.15 |
1000 |
750 |
0.15 |
820 |
|
GW-0.25-160/1JJ |
180 |
380 |
256 |
160 |
320 |
500 |
0.24 |
1000 |
750 |
0.25 |
790 |
|
GW-0.5-250/1JJ |
280 |
380 |
400 |
250 |
500 |
500 |
0.4 |
1000 |
1500 |
0.5 |
770 |
|
GW-0.75-400/1JJ |
400 |
380 |
650 |
400 |
800 |
500 |
0.6 |
1000 |
1500 |
0.75 |
770 |
|
GW-1-500/1JJ |
550 |
380 |
800 |
500 |
1000 |
500 |
0.8 |
1000 |
1500 |
1 |
750 |
|
GW-1-750/1JJ |
800 |
380 |
1200 |
750 |
1500 |
500 |
0.9 |
1000 |
1500 |
1 |
720 |
|
690 |
700 |
850 |
880 |
500 |
2600 |
660 |
|
GW-1.5-1000/0.5JJ |
1100 |
690 |
912 |
1000 |
1140 |
880 |
1.2 |
500 |
2600 |
1.5 |
700 |
|
GW-2-1500/0.5JJ |
1650 |
690 |
1360 |
1500 |
1700 |
880 |
1.7 |
500 |
2600 |
2 |
675 |
|
GW-2-2000/0.5JJ |
2200 |
690 |
1400 |
2000 |
2275 |
880 |
1.9 |
500 |
2600 |
2 |
650 |
|
GW-3-2500/0.5JJ |
2750 |
690 |
2275 |
2500 |
2840 |
880 |
2.56 |
500 |
2600 |
3 |
610 |
|
950 |
1700 |
2080 |
1250 |
3200 |
560 |
|
GW-5-4000/0.5JJ |
4400 |
690 |
2300 |
4000 |
4540 |
880 |
4.5 |
500 |
2600 |
5 |
550 |
|
950 |
2700 |
3330 |
1250 |
3200 |
500 |
China ELECTRIC, Shanghai FORTUNE ELECTRIC Co., Ltd. is located in Shanghai China. It has employees more than 1000. Its factory is about 30, 000~50, 000 square meters. It passed ISO 9001: 2008. All its products passed CE Certificate for European Union, UL and CSA for North America, GOST for Russia and SONCAP for Nigeria.
China ELECTRIC is qualified to issue Form E Certificate of Origin for ASEAN customers, China-Pakistan FTA Certificate of Origin and all Preferential Certificate of Origin for Peru, Chile, India, Bangladesh and Sri Lanka. It also permitted to issue CIQ Certificate of Pre-shipment Inspection for exporting to Africa, such as Egypt.
China ELECTRIC is specialized in manufacturing and exporting electrical machines. Its main products are as below:
GW-JJ series aluminum shell mechanical tilting coreless medium frequency induction melting furnace, induction holding furnace;
GWG-J (GW-J) series steel shell hydraulic tilting coreless medium frequency induction melting furnace, induction holding furnace;
HX series electric steel-making arc furnace;
LF series ladle refinery furnace;
Continuous casting machine, CCM;
Z2, Z4 series DC motor;
Z series medium/large size DC motor;
ZYZJ series DC motor for sugarcane mill;
ZJJ800 series DC motor for rolling mill auxiliary drive
ZFQZ series frequently starting/braking DC Motor
ZSN4 series DC Motor for driving cement rotary kiln
Y, Y2, YKK, YKS series medium/large size squirrel-cage motor;
YR, YRKK, YRKS series medium/large size wound rotor slip ring motor;
YLS, YLKK, YLKS, YLST, YLKKT, YLKST series vertical type medium/large size squirrel-cage motor;
VHS series IEC standard Vertical hollow shaft motor;
OHS series NEMA standard Vertical hollow shaft motor;
China ELECTRIC is one of the biggest manufacturer and exporter for medium frequency induction melting furnace, high voltage motor and DC motor.
