Prod Model: |
ES 12-02 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Various Clear Opening Diameter |
Coating: |
Bitumen or Epoxy Paiting |
Inspection: |
Advanced Equipments+ Professional Quality Team |
Application: |
Road ,Hard Shoulders,Urban Drainage System |
Casting Metal: |
Cast Iron |
Casting Form Material: |
Metal |
Casting Method: |
Sand Casting |
Casting Form Usage Count: |
Semi-permanent |
Product Description
Manhole cover frame,Ductile iron casting manhole cover with frame,En 124 rectangle ductile casting iron Manhole cover with frame,casting mahole cover and frame,iron culvert mahole cover,heavy duty ductile iron manhole cover,manhole cover,cover with frame,manhole grating,manhole grids,ductile iron manhole cover,iron cover ,well manhole cover frame .
SPEC.
- Material: cast ductile iron as per EN-1563 (500-7)
- Sizes:

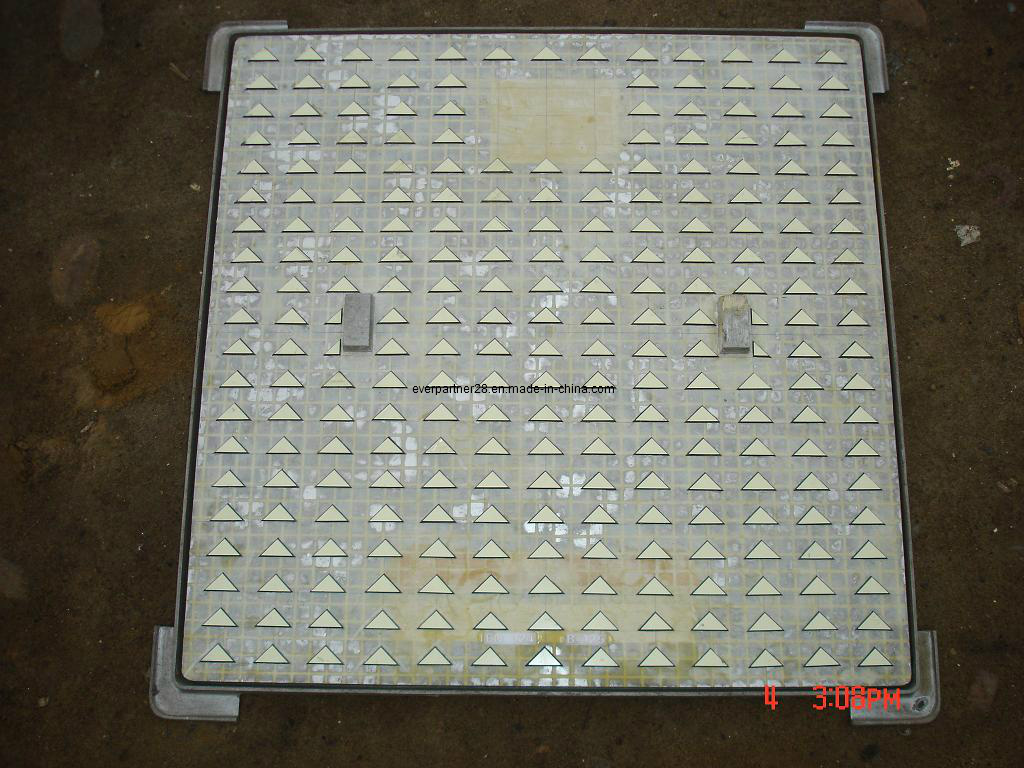

- Frame: 845x845mm, clear opening: 710x710mm, cover: 775x775mm, weight: 56kg.
- Frame: 940x940mm, clear opening: 810x810mm, cover: 872x872mm, weight: 58kg.
- Standard class: EN124, B125.
- Logo engraving is available.
- Paint: black bituminous paint, epoxy coating or according to customer's requirements.
- Quality: it conforms to standards of EN124, clearly casted and free from sand holes, blow holes, distortion or any other defects.
- Packaging: wooden or steel pallet.
- Certificates: ISO 9001: 2008, SGS, BV.

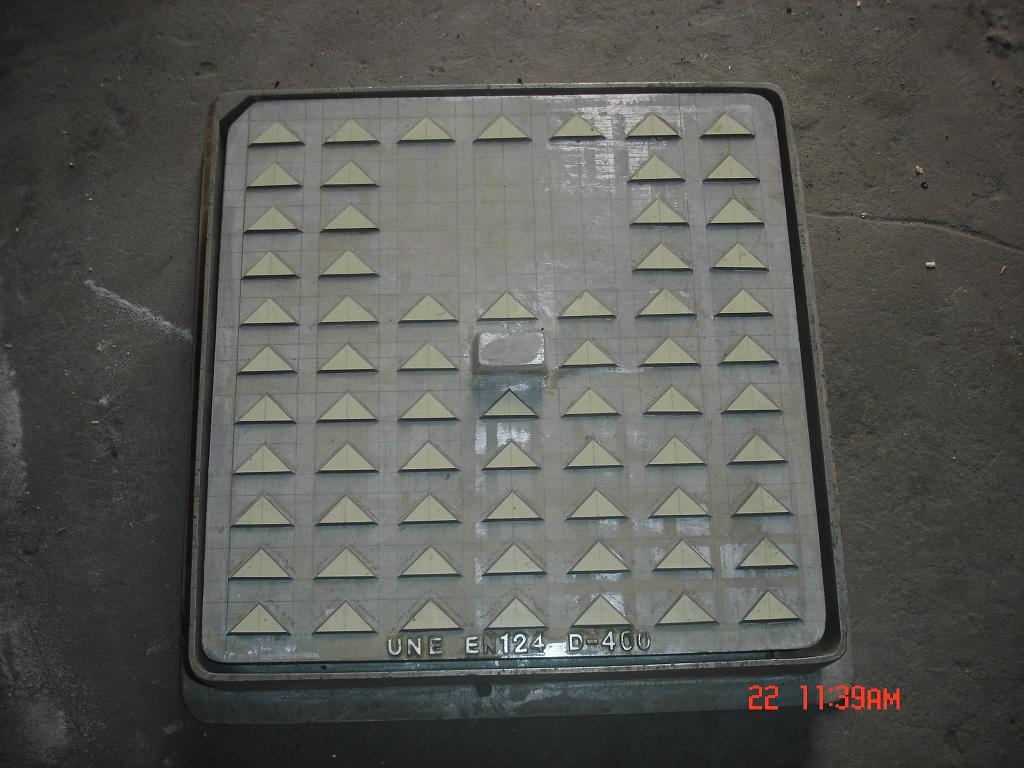

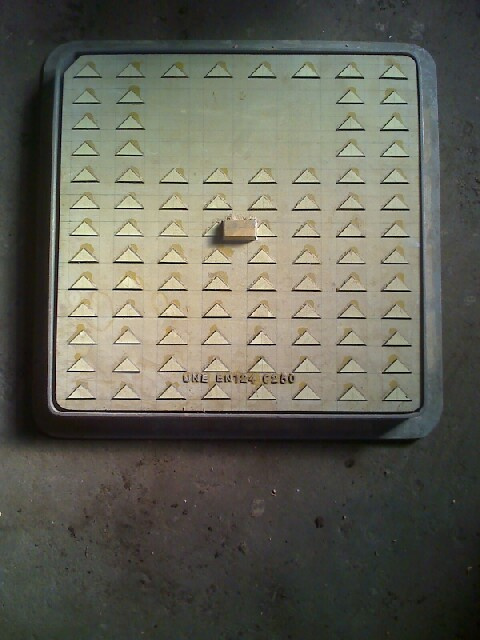

- Our manufacturing ranges from EN124 A15, B125, C250, D400, E600 and F900.
- Our engineers are with strong OEM capability and are capable of manufacturing all kinds of ductile iron castings, such as manhole covers, channel grates, water meter boxes, pipe fittings and others, so OEM is welcome.
