Model Number:
Wet Grinding Mill
Capacity(T/H:
1-50tph
Certificate:
ISO9001-2008
Input Size:
25mm and Down
Output Size:
0-250mesh(Adjustable)
Working Ways:
Wet Type
Installation:
We Dispatch Engineer
Spare Parts:
Supply for Whole Life
Warranty:
1 Year Apart From Wearing Parts
Type:
Ball Mill
Motor Type:
AC Motor
Condition:
New
Application:
Gring Ores Into Fine Powder
Rotationl Speed:
38rpm
Product Description

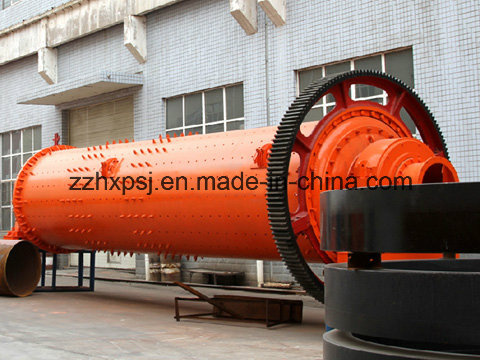

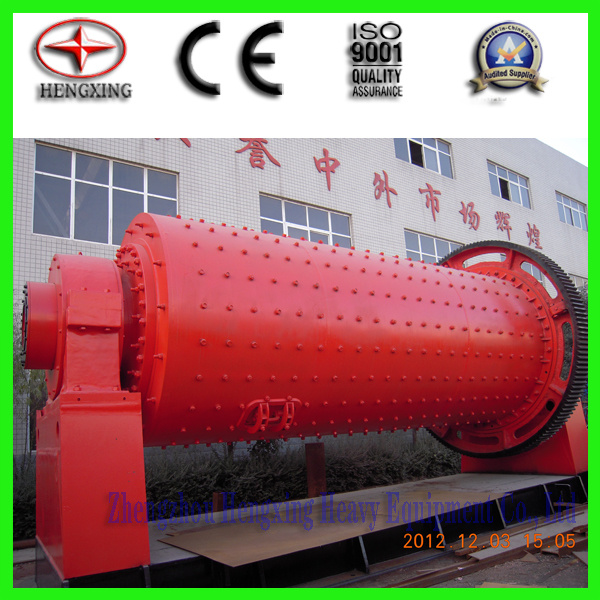

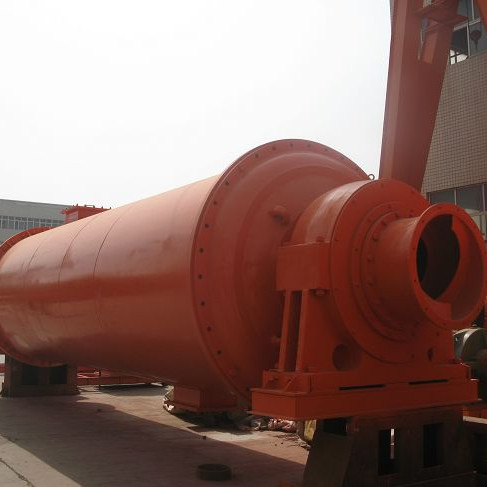

Energy Saving Continuous Ball Mill For Mineral Ore Beneficiation Plant : A ball mill, a type of Mill, is a cylindrical device used to grind (or mix) materials like ores, chemicals, ceramic raw materials and paints. Ball mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used for media, including ceramic balls, flint pebbles and stainless steel balls.
Ball mill Working principle:
Ball mill, a kind of horizontal drum-type rotating device, is a grate mill with external gear and double bins. Materials shall be evenly charged through quill shaft in feeding device into the first bin, which has step or waved lining with steel balls in different specifications. Steel balls are taken to a certain height by centrifugal force from drum rotation and then fall.
Thus it will give a heavy blow to materials, playing a role of grinding. Materials after crushed in the first bin shall enter bin across single-layer diaphragm into the second, which is provided with flat lining with steel balls, to go through further grinding. Powder shall be discharged from discharging grating, ending the milling process. Ball mill Features:

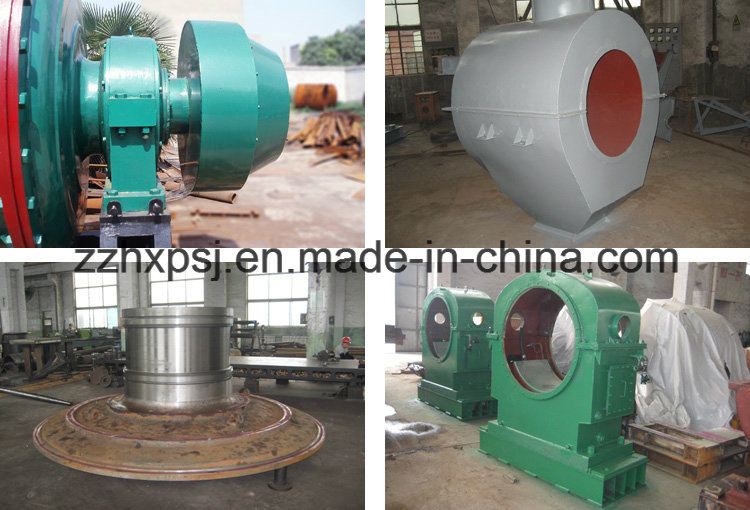

Ball mill is mainly composed of charging and discharging, cyclone and rotation parts (like redactor, minor rotation gear, motor, electric machine, etc). Hollow axis is made of steel parts with a lining replacable. Major rotation gear, machined by rolling wheel of casting, is lined with wearing plate with fine wear-resisting property. This machine runs stably and reliably.
Based on difference of materials and discharging types, dry ball mill and wet ball mill are selectable.
Ball Mill Technical Parameters:
Model
shaft rotation speed (r/min)
Ball load (t)
Feeding size (mm)
Discharging size (mm)
Capacity (t/h)
Power (KW)
Weight (T)
Φ 900 × 1800
38
1.5
≤ 20
0.075 -0.89
0.65-2
18.5
3.6
Φ 900 × 2100
38
1.3-1.4
≤ 15
0.075 -0.83
0.7-3.5
18.5
3.9
Φ 900 × 3000
38
2.7
≤ 20
0.075 -0.89
1.1-3.5
22
4.5
Φ 1200 × 2400
32
3.8
≤ 25
0.0745-0.6
1.5-4.8
30
11.5
Φ 1200 × 2800
32
3.3-3.5
≤ 25
0.0745-0.6
2-6
30
13
Φ 1200 × 4500
32
7
≤ 25
0.074 -0.4
1.6-5.8
45
13.8
Φ 1500 × 3000
27
8
≤ 25
0.074 -0.4
2-5
75
17
Φ 1500 × 3500
27
6.75 -6.4
≤ 25
0.075 -0.4
3-7
75
17.5
Φ 1500 × 4500
27
14
≤ 25
0.074 -0.4
3.5-12
110
21
Φ 1500 × 5700
27
15
≤ 25
0.074 -0.4
3.5-8
115
24.7
Φ 1830 × 3000
24
18
≤ 25
0.074 -0.4
4-10
130
28
Φ 1800 × 3600
24
10.6-11.35
≤ 25
0.075 -0.4
5-22
130
33.5
Φ 1830 × 7000
24
25
≤ 25
0.074 -0.4
7.5-17
210
36
Φ 2100 × 3600
22
14-15.2
≤ 25
0.075 -0.4
15-36
370
46.8
Φ 2200 × 5500
21
30
≤ 25
0.074 -0.4
10-20
210
48.5
Φ 2200 × 6500
21
31
≤ 25
0.074 -0.4
14-26
380
52.8
Φ 2200 × 7500
21
33
≤ 25
0.074 -0.4
16-29
380
56
Φ 2400 × 3000
20.6
15.5 -16.6
≤ 25
0.075 -0.4
22-24
245
59
Φ 2400 × 4500
21
30
≤ 25
0.074 -0.4
8.5-60
380
65
Φ 2700 × 3600
20.6
39
≤ 25
0.074 -0.4
12-70
400
91.3
Φ 2700 × 4000
20.7
40
≤ 25
0.074 -0.4
12-80
400
94
Φ 2700 × 4500
20.7
48
≤ 25
0.074 -0.4
12-90
430
102
Φ 3200 × 4500
18
65
≤ 25
0.075 -0.4
according to the technics
800
137
