| Prod Model: |
JL-KGPS-1T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
ISO9001:2008,CE,SGS |
| Feature: |
Energy Saving,High Efficiency |
| Package: |
Plywood Case |
| Warranty: |
1 Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Product Description

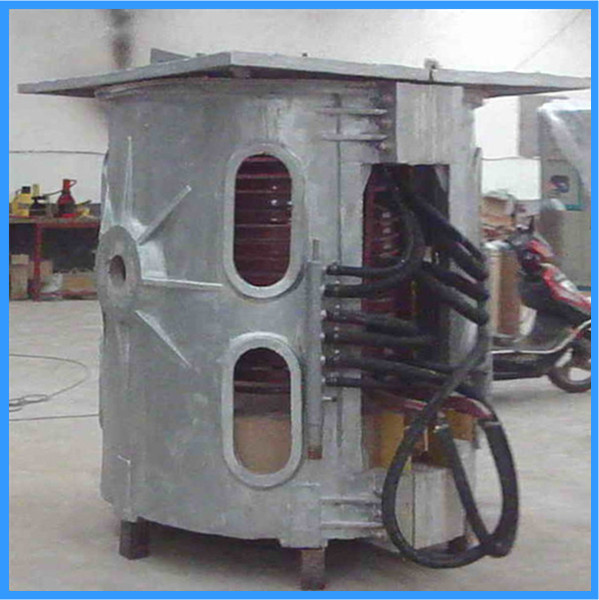

Environmental Friendly 1T Melting Furnace
1. Overview
Medium Frequency Induction Furnace is the device converting three phase power current into single-phase intermediate frequency current and enabling metal to produce eddy current loss through the electromagnetic field induction to achieve heating and melting. Mainly be used in the material of ferrous and non-ferrous metal casting, melting and heating treatment industry, such as iron, steel, brass, cooper, zinc, tin and so on. As well as heating treatment prior to forging, sintering and tube-bending forming in casting and melting industries.
2. Performance Characteristics:
1. Zero-voltage scanning soft, available for start or stop at any time under any state without impact on power supply;
2. Speedy melting, low production cost, low pollution, conforming to environmental protection requirement;
3. Melting directly from low temperature, available for fully emptying of solution, easy change of category of melting material;
4. Flexibly adjustable power, easy and continuous smooth adjustment, easily controllable temperature, low oxidization loss, uniform metal content;
5. Furnace shell with cast aluminum ally or steel shell construction, small footprint, easy overturn body, available for selection of electric, manual, hydraulic or other overturn mode as needed;
6. Contravariant automatic regulation circuit available for matching of load impendence automatically, maintaining good operation without regulation or compensation of capacitance; Power supply with fault diagnosis facilitating service.
|
Rate Power |
800KW |
Furnace Temperature |
1800°C |
|
Input Voltage |
380V |
Melting Rate |
1ton/h |
|
Phase |
3 |
Furnace Capacity |
1Ton |
|
Input Current |
1280A |
Power consumption per ton |
340-600KW/T |
|
DC Current |
1600A |
Cooling water flower rate |
10-30T/H |
|
DC Voltage |
500V |
Cooling water pressure |
0.15MPa≤P≤0.25 Mpa |
|
IF Voltage |
750V |
Input water temperature |
>40°C |
|
Input Frequency |
50HZ |
Temperature Rise |
>20°C |
|
IF Frequency |
0.7-1KHZ |
Cooling water flower rate |
10-30T/H |
