| Prod Model: |
(4mm-150mm)Full Kinds of diameter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
| Journal Diameter Dimensional Accuracy: |
3mm-150mm |
| Journal Surface Roughness: |
0.8s - 1.6s |
Product Description
Specifications
ERSK Cylinder linear rail,Shaft, Piston rod,Round bar, stainless steel linear shaft, linear shaft
1. Material: S45C, Gcr15
2. Hardness greater than 60-62 degree and Pricision g6
3. Shaft diameter:3mm-150mm, Max length more than 6 meter
4. Induction hard and chrome plated --Rustproof
5. ISO9001:2008 quality certificate.
6. Sample Order is available;
7. Professional reply with in 24 hours;
8. 10 years experience in producing linear shaft;
9. Trading exporter--7 years export experience linear shaft
10. With Many Advanced Germany machine for linear shaft making;
11. Pay more attention to before-sale, in-sale, after -sales service;
12. Manufactory with large stocks--Cheap Price and Prompt delivery
13. Hardend shaft , Non-hardend shaft , Hollow shaft are all available and can be machined according to your drawing.
As a professional linear motion products manufacturer with many years expriences, we could offer many kinds of linear shaft and good quality linear shaft and We can modify the dimension and do some special linear shaft and machine work according our customer request.
Product description:
Product Name: Plain Linear Shaft |
Model: SF3/SF4/SF5/SF6/ SF8/ SF10/ SF12/ SF13/ SF16/ SF20/ SF25/SF30/
SF35/ SF40/ SF45/SF50/ SF60/SF70/ SF80/SF100/SF120/SF150 |
Material: Carbon Steel S45C or Bearing Steel Gcr15 |
| Hardness: HRC60 °- 62° |
| Roundness: Within 3.0μm |
| Straightness: Not exceed 5μm of 1000mm |
| Thinkness of Coating : 15μm--20μm |
| Surface Roughness : Within 1.4μm |
| Outer Diameter Tolerance: g6 |
| Surface Hardening Thickness: 0.8-3.5mm |
| Note: we can offer both the solid shaft and the hollow one. The diameter of the hollow one is at least 12mm.however, we also can process the special shafts whose ends are stepped. |

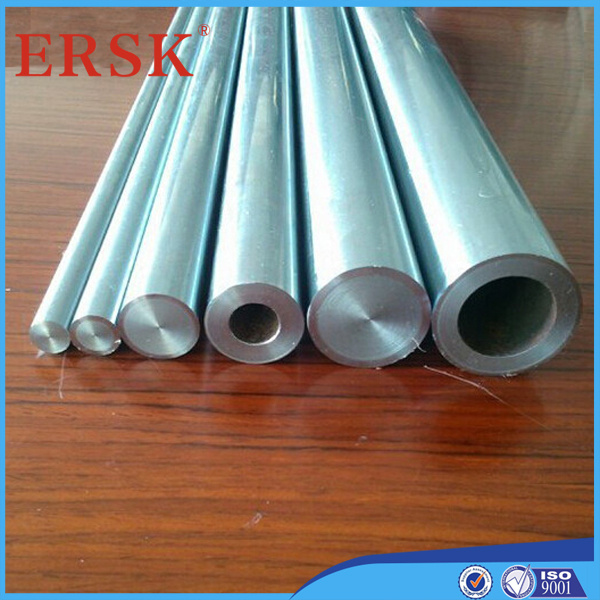

Five types of the shafts:
Plain linear shaft;
Stainless steel linear shaft
Linear shaft with chrome plated;
Hollow shaft with chrome plated;
Linear soft shaft with chrome plated;
We supply various kinds of these linear shaft for different models and sizes and
Siniecrely hope that further discussions will result in further business to our mutaual advantage. Please do not hesitate to contact. We will offer the best price and service !!!
Feature:
Abrasion resistance, corrosion resistance, high-precision, high intensity and also three particular
features are as following:
1 Super high precision: shaft has been introduced advance technology from Japan, and has
stable performance;
2 Super-wide range of application and excellent durability;
3 Super-high ratio of Price/Performance.
Purpose:
Linear Bearing is widely used in auto transmission device, such as industrial robot, auto recorder, computer, precision printer, special air- cylinder, auto woodworking machine and so on. It has a longer life than general precision equipment due to its high-shiffness.
Our service:
1.Customizing is ok for us if you can offer the drawings,pictures or samples
2.On-line 24 hours servicing for you
3.Using environmental materials
4.Customer first and fast reation
5.High quality and guarantee
Our service and after-sale service
1. We have a group of professional engineers we can provide drawings according to customer's requirements.
2. We have more than 20 machines for offering professional linear shaft end machining service.
3. We can rebuild, refurbish, and make emergency repairs to ball screws, linear shaft and linear guideways.
4. We can disassemble, clean, polish ball screws, linear shaft and linear guideways.
5. Two years free maintenance to ball screws and one years free maintenance to ball screw.
Frequently Asked Questions
Q: What's your (ERSK) main products?
A: Cold rolled ball screws, ball screw support units, Linear guide rails, Linear motion ball slide bearing,
Cylinder rails, Linear shaft, Couplings, etc.
Q: How can I get a sample to check your quality?
A: After price confirmation, sample order is available to check our quality.
Q: Have items 100% finished in stock?
A: Most items are all finished in stock, but some items are newly machined according to your
requirements.
Q: Can I choose the sizes?
A: Yes, We have full size available for your to choose.
Q: What is the delivery time?
A: With in a week for sample; 15-25 days for mass production.
Q: What is the payment team?
A: T/T, L/C at sight, Western Union, PayPal, Money Gram, etc.
Q: Can I trust you?
A: Absolutely YES. We are a 6 years "Alibaba" Golden supplier.
Q: May I visit your factory?
A: Sure, welcome any time. We can also pick you up at airport and station.
Get more detailed information !!!
Inquiry with us, Now!!!
We will reply within 24 Hours!!!
Thank you for visiting!!!
Thank you for your time!
Our company (Lishui Wangong Precision Machinery Co., Ltd. ) has ERSK brand by ourself.
We focuse on precision transmission parts for 10 years, specialize in manufacturing linear motion
Bearings series, slider series, ball screw series, linear rail series, flange linear bearings series, Cylinder
Linear rail series, joint bearing series, rod ends bearings series, radial spherical plain bearing series,
Wheel and pin bearings series.
We have the professional production team and QC staffs to control quality for each step, high precision
Equipments (German Chiron FZ15W, DMG MORI MAX3000 Machining Centers and so on)
Are the basic for manufacture company.
Our Principle: Good quality, Competitive price, Fast delivery, Best service
Our company lies in Lishui TianNing Industrial Zone, which is a convenient traffic Green Valley capital. We are engaged in production of above goods for many years, whose production capacity reach 150, 000 sets.
Since the establishment of the company, we adhere to the purpose of the quality first, the customer first, dedicated service and trustworthy. Our company can supply a wide rang of bearings with top-quality and competitive price.
Since our foundation, our company has been always sticking to the purpose of "quality first, customer first, wholeheartedly service, sincere and trustworthy; Dare to develop, strive to achieve, create good performance and cultivate a higher credibility".
We welcome all new and old customers to come to our company for communication, guidance and business negotiation.
