| Prod Model: |
25Cr35NiNb |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standard: |
JIS |
| Morphology: |
Gas |
| Cross-Section Shape: |
Round |
| Connection Type: |
Flange |
| Material: |
High Temperature Alloy |
| Diameter: |
Tailer Made |
| Type: |
Centrifugal Casting |
Product Description
Qingdao NPA Industry Co.,Ltd. Centrifugal Casting Reformer tubes Cracker tubes
NPA Industry is specialized in centrifugal casting and static casting of high heat resistant alloy.
Main Products:
1. Reformer / cracker tubes in HK-40, HU, HP-50, micro-alloy HP, More-1 &2, Super therm-super alloy, SUPER22H etc., which are widely used in petroleum & chemical industries including Hydrogen, Methanol, Synthetic Fules, Ammonia, Carbon Monoxide, Ethylene Propylene, Butadiene, and Aromatics reformer/ cracker furnaces
2. Radiant tubes, furnace roller, touch roll, SINK ROLL, Stabilizing roll, Cooled Roll etc. The materials include HK40, More-1, More-2, HU, HP, TAH, Co50, SUPER22H, Cr28Ni48W5, Cr35Ni45Nb+micro alloy etc
3. Lift Out Roller, Annealing Lehr Roller, THC, non-asbestos roller, MDR, engraving roller etc.
Centrifugal Casting Tube
1. Standard: ASME, ASTM 208; HG/T 2601-2000; HG/T 3673-2000; GB 13296-2007; NB/T 47008-47010-2010, PED
2. Material: High Ni based heat resistant alloys, cobalt base alloys, like HU, HT, HK, HP, HW, 24/24NbTiZr, 50Cr/50Ni (2.4813), 1.4865, 1.4849, 1.4848, 1.4410, 1.4059, 1.4841, 1.4845, 1.4852, 2.4879 or as per customer's requirements
3. OD, Length as customers' requirement
4. Process: Centrifugal casting
5. Quality: Appearance: coarse with bayberry, can work under presure for long time, advanced testing equipment to ensure the quality,
6. Packing: Wrapped in bundles by steel strips with reinforced steel or as customers' requirement
7. Delivery time: 30 to 90 days after we signed SALES CONTRACT.
8. Port of departure: Qingdao
9. Certification: ISO9001: 2008
10. Payment: L/C, T/T
11. Reformer tubes normally used in the refining, petrochemical and fertilizer industries are manufactured by the centrifugal casting process and heat-resistant austenitic alloys such as HK -40, HP-40, and HP -Niobium modified materials. A design life of 100, 000 operating hours has been the normal time-based criteria for considering retirement of tubes.
Primary reforming

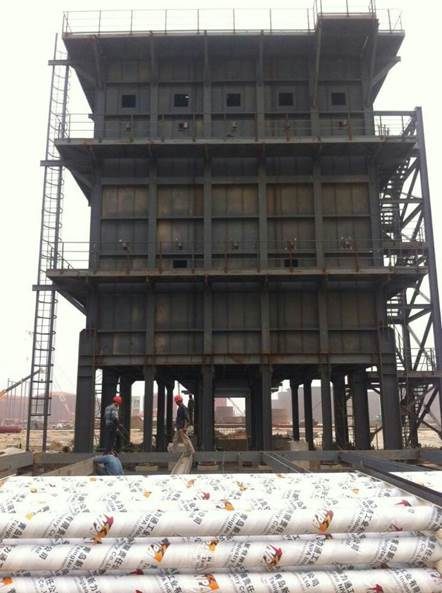

The hydrocarbon steam reforming process is the principal industrial process used to manufacture synthesis gas for the production of ammonia, hydrogen and methanol. The heart of this process is the tubular primary reformer where the hydrocarbon feed plus steam is catalytically reacted to produce the synthesis gas. The standard primary reformer system is the tubular reformer where the feed stream passes over the catalyst packed in multiple banks of externally heated tubes. The tubes are heated in a refractory lined firebox which may be top, side, or bottom fired. The feed flow can be down flow or up flow through the tubes. With improvements in tube metallurgy, primary reformers operate at pressure up to 60 bar and tube wall temperatures up to 1000° C. The average heat flux may be as high as 30, 000 BTU/hr. Ft2. The feedstock may vary as natural gas, LPG, or naphtha.
Qingdao NPA Industry Co. Ltd. Is a leading manufacturer in high-temperature alloy industry in China. NPA is specialized in centrifugal casting tubes, static casting parts and precision casting parts.
NPA is equipped with modern induction furnace, casting machine, machining equipment, welding machine, and testing equipment. Most important is the know-how, which makes NPA stands out in the completion.
NPA 's high alloy products are widely used in petro-chemical industry, glass industry, heat treatment industtry and metallurgical industry.
Main Products:
1. Reformer / cracker tubes in HK-40, HU, HP-50, micro-alloy HP, More-1 &2, Super therm-super alloy, SUPER22H etc., which are widely used in petroleum & chemical industries including Hydrogen, Methanol, Synthetic Fules, Ammonia, Carbon Monoxide, Ethylene Propylene, Butadiene, and Aromatics reformer/ cracker furnaces
2. Radiant tubes, furnace roller, touch roll, SINK ROLL, Stabilizing roll, Cooled Roll etc. The materials include HK40, More-1, More-2, HU, HP, TAH, Co50, SUPER22H, Cr28Ni48W5, Cr35Ni45Nb+micro alloy etc
3. Lift Out Roller, Annealing Lehr Roller, THC, non-asbestos roller, MDR, engraving roller etc.
NPA is proud to be certified to ISO 9001: 2008 and ISO 14001: 2004. NPA is honored to be awarded as the "Excellent Supplier" by CNPC & Sinopec in China, and "Excellent Supplier" by JFE steel Co. Ltd. In Japan.
You are welcome to visit our factory, which is located in Qingdao, a beautiful coast city with sea foods and beer!
