| Prod Model: |
CVT SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
| Surface Treatment: |
Painting |
| Machining: |
Casting |
Product Description

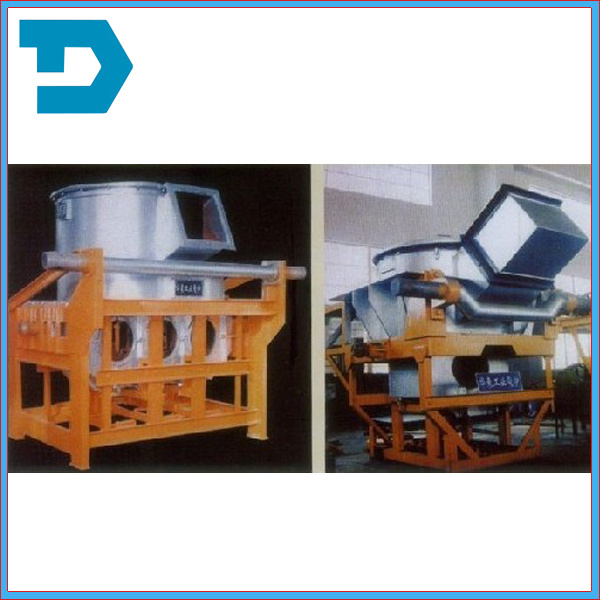

These equipments are suitable for copper and copper alloy melting and casting.
| Type | Content(t) | Ele. Capacity(KW) | Voltage(V) | Temperature(° C) | Melting Rate(t/h) |
| G/T-0.15-45 | 0.15 | 45 | 380 | 1250 | 0.15 |
| G/T-0.3-75 | 0.3 | 75 | 380 | 1250 | 0.3 |
| G/T-0.5-120 | 0.5 | 120 | 380 | 1250 | 0.5 |
| G/T-0.75-210 | 0.75 | 210 | 380 | 1250 | 0.75 |
| G/T-1-300 | 1 | 300 | 380 | 1250 | 1 |
| G/T-1.5-450 | 1.5 | 450 | 380 | 1250 | 1.5 |
| G/T-2-600 | 2 | 600 | 380 | 1250 | 2 |
| G/T-3-450 | 3 | 450 | 380 | 1250 | 3 |
| G/T-5-1500 | 5 | 1500 | 380 | 1250 | 5 |
| Note: For brass, the Ele. Capacity will be 0.85 of the figure |
Guangzhou DT Exp. & Imp. Co. Ltd was established 2011. We have a great team with more than 15 years professional
The main Machineries we manage:
1) Furnace and all continuous casting system, upward casting, downward casting and level continuous casting for brass and copper.
The whole line will include the Melting furnace, Holding furnace casting, cutting, drawing, peeling and polishing processing and so on.
We also supply all dies like graphite dies, peeling dies and drawing dies for your whole production line.
2) Combined drawing machinery is our following treatment of copper bars after casting line and extrusion processing.
The combine drawing machinery will assemble all processing in one machine. It consists of 7 parts as following: Initial straightening -- drawing--precision straightening--hydraulic cutting--bar guide-- polishing -- material receiving frame.
Tools and mold for Combined drawing machine: Hydraulic scissor, drawing dies, knives for cutting and so on.
3) We also developed our own metal mold department for mold opening and metal tools and metal stampings. Such as punching mold for metal, drawing mold for metal, continuous mold and so on. We would like to design and make mold according to your finished products or drawings, also we can make the finished products according to your samples.
4) Also we supply metal crafts and arts.
Our advantages:
1. Professional, Concentration, Attentive
2. Feedback within 24 hours and 24 hours online;
3. Lifetime technology support and repair guarantee;
OUR SLOGAN: WE BEAT WITH BEST FOR YOU!
