Prod Model: |
G10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Hebei Reaguan international CO. Ltd is a unique extroverted abrasives company, all the products sell to the international market. For example: Japan, Korea, Spain, France, USA, Malaysia etc. Our factory mainly produces: Steel shot, steel grit, stainless steel shot, Iron shot, Iron grit, cooper ball, aluminium ball and zinc ball this five series. Hebei reaguan supplying perfect quality and first class service, cooperate with the customers, develop and create resplendence together.
Steel shot:S70,S110,S170,S230,S280,S330,S390,S460,S550,S660,S780,S930

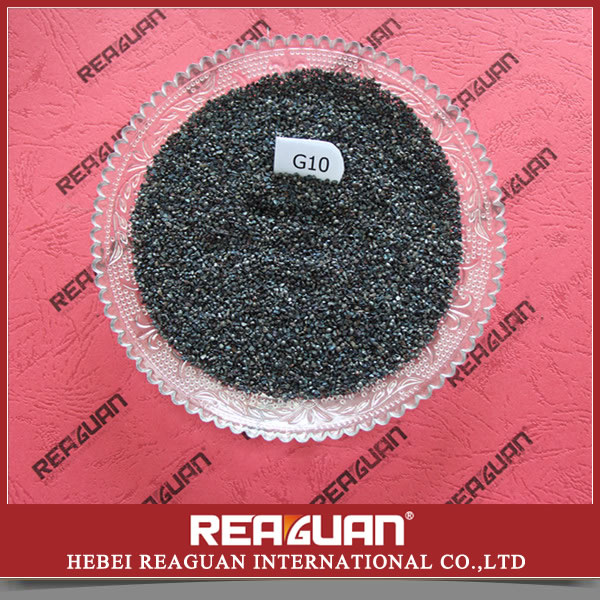

Steel grits:G10,G12,G14,G16,G18,G25,G40,G50,G80,G120
Cut wire shot:1.0mm,1.5mm,2.0mm,2.5mm
And Stainless steel shot, Copper shot, Zinc shot, Aluminium shot etc.
Quotations and samples will be sent upon receipt of your specific enquiries.
Sand Blasting Cast Steel Shot
Operative Standards:
Sand Blasting Cast Steel Shot
GB/T18838.3-2008 Steel Shot and Steel Grit
SFSA20-66Cast Steel Abrasive
SAE J827 Cast Steel Shot, SAE J1993 High Carbon Steel Grit,
YB/T5149-1993 Cast Steel Shot,
YB/T5150-1993 Cast Steel Grit,
ISO11124-3 High Carbon Cast Steel Shot and Grit
The Major Technological Index:
Sand Blasting Cast Steel Shot
Products | Steel Shot |
Chemical Composition | C | 0.70~1.20% |
Mn | 0.35~1.20% |
Si | 0.40~1.20% |
S | ≤0.05% |
P | ≤0.05% |
Microhardness | Normal:40~50HRC (377~509HV) Special:52~56HRC (543~620HV) Special:56~60HRC (620~713HV) |
Hardness Deviation | Max Deviation ±3.0HRC |
Microstructure | Tempered Martensite or Sorbite |
Density | 7.2g/cm3 |
What you can get after buying, here is the packaging details:
Sand Blasting Cast Steel Shot
1.25Kgs per bag,40bags per plywood pallet.
2.25Kgs per bag,40bags per Carton.
3.1000Kgs per jumbo bag
Our Certificate
Application:
Blast cleaning of cast steel shot:Used for blast cleaning of casting, die casting,forging,sand removal of casting, steel plate, H type steel, steel structure.
Rust removal of cast steel shot:Rust removal of casting, forging, steel plate, H type steel, steel structure, descaling of forging.
Shot peening of cast steel shot:Shot peening of gear, heat treatment.
Shot blasting of cast steel shot:Shot blasting of profile steel,ship board,steel board,steel material.
Shot blasting of cast steel shot:Shot blasting of steel board, profile steel, steel structure.
Pre treatment of cast steel shot:Pre treatment of surface, steel board, profile steel, steel structure, before painting.
Application Devices:
Steel shot mainly used for the following equipment including rotary barrel shot blasting machine, chain type shot blasting machine,pedrail type shot blasting machine,pass through shot blasting machine,table type shot blasting machine, Pendent chain & Pile type Shot Blasting Machine, trolley type shot blasting machine,abrator, abrator equipment,shot peening machine,shot peening equipment,sandblasting machine,sandblasting equipments,steel material pretreatment production line,steel plate pretreatment production line, steel structure pretreatment production line.
FAQ
1.What is the minimum order quantity?
We are direct manufacturer , you can buy goods according to your demand , our minimum packaging is 25Kg/ bag.
2.What is the time of delivery?
We can confirm all of our goods are available , they can be shipped within 3-7 days after confirming the order.
3.What's the packaging form?
25Kgs per bag ,40 bags in one pallet or 40 bags in one Jumbo bag or according to customer's requirement.
Cast Steel Shot Grain the degree distribute |
The eyes count | mm | sizes |
2.5 | 2.0 | 1.7 | 1.4 | 1.2 | 1.0 | 0.8 | 0.6 | 0.5 | 0.3 | 0.2 |
7 | 2.80 | all pass |
|
|
|
|
|
|
|
|
|
|
8 | 2.36 | | all pass |
| |
|
| |
|
| |
|
10 | 2.00 | 85% min |
| all pass | all pass |
|
|
|
|
|
|
|
12 | 1.70 | 97% min | 85% min |
| 5% max | all pass |
|
|
|
|
|
|
14 | 1.40 | | 97% min | 85% min | | 5% max | all pass | |
|
| |
|
16 | 1.18 | |
| 97% min | 85% min |
| 5% max | all pass |
|
| |
|
18 | 1.00 | |
|
| 96% min | 85% min | | 5% max | all pass |
| |
|
20 | 0.850 | |
|
|
| 96% min | 85% min | | 10% max | all pass | |
|
25 | 0.710 | |
|
|
|
| 96% min | 85% min | | 10% max | |
|
30 | 0.600 | |
|
|
|
|
| 96% min | 85% min | | all pass | |
35 | 0.500 | |
|
|
|
|
|
| 97% min | 85% min | 10% max | |
40 | 0.425 | |
|
|
|
|
|
|
| 97% min | | all pass |
45 | 0.355 | |
|
|
|
|
|
|
|
| 80% min | 10% max |
50 | 0.300 | |
|
|
|
|
|
|
|
| 90% min | |
80 | 0.180 | |
|
|
|
|
|
|
|
|
| 80% min |
120 | 0.125 | |
|
|
|
| |
|
|
|
| 90% min |
200 | 0.075 | |
|
| |
|
| |
|
| |
|
325 | 0.045 | |
|
| |
|
| |
|
| |
|
SAE Standard | S-780 | S-660 | S-550 | S-460 | S-390 | S-330 | S-280 | S-230 | S-170 | S-110 | S-70 |
Hebei Reaguan international Co, Ltd is a unique extroverted abrasives company, the production all the products sell to the international market. For example: Japan, Korea, Spain, France, USA, Malaysia ect. Our factory mainly producess: Steel shot, steel grit, stainless steel shot, Iron shot, Iron grit, cooper ball, Aluminium ball and zinc ball this five series. Hebei reaguan supplying perfect quality and first class service, cooperate with the customers, develope and create resplendence together.
