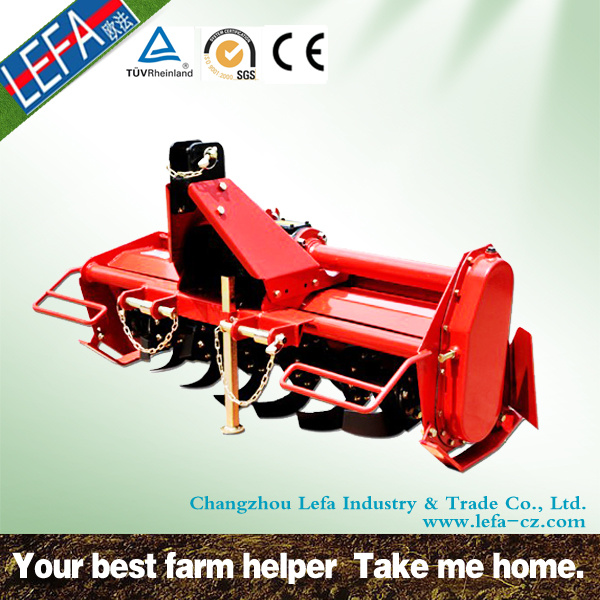

Farm Tractor Tilling Machine Mini Rotary Cultivator

Prod Model:	RT105
Markets:	North America,South America,Eastern Europe,Oceania,Western Europe
Company Type:	Manufacture
Protection:	Front Bar
Gearbox:	Nodular Cast Iron
Transmission:	Chain Driven
Structure:	Firm,Stamped Chain Cover
Rear Deflector:	Hinge Connection
Colour:	Red or Customer Request
Main Market:	Europe,North and South American
Type:	Rotary Tiller
Application Field:	Agriculture
Farming Policy:	Dry Cultivating Machinery
Power Source:	Tractor
Operation:	Continuous Running Operation
Traction Type:	Tractor

Product Description

PRODUCT ATTRIBUTE
1. Transmission: chain driven.
2. Gearbox is made of graphite casting iron.  Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out
6. The tilling height can be adjustable.
7. The structure is firm and stable.

LEFA machines in YOUTOBE web for your reference:

https://www.youtube.com/watch?v=O_tVXodWdN8       EFG FLAIL MOWERS
https://www.youtube.com/watch?v=ZuWSCmiPows     EFGL HYDRAULIC FLAIL MOWERS
https://www.youtube.com/watch?v=iH6uQiqEyuQ         FM FINISHING MOWERS
https://www.youtube.com/watch?v=VLUEyam_5DY     TM TOPPER MOWERS
https://www.youtube.com/watch?v=Bh73zRIYBpc        EFDL HYDRAULIC FLAIL MOWERS
https://www.youtube.com/watch?v=jphaylxaKUg          RT ROTARY TILLERS
Specifications

<1>professional cheap agriculture light rotary tiller
<2>Style: RT-85 -95 -105 -115 -125 -135
<3>Change color upon request
<4>Well-known in Europ

Funtions:

Rotary Tiller is driven by the tractor's out-put shaft. During operation, the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft. It also can be used as shallow tilling and covering on the Stalinized soil to prevent the salt in the soil. The machine will fulfill the working of cleaning stubbles and weeds, turning and covering green fertilizer and preparing vegetable fields, etc.


After tillage, the land surface is leveling and smooth, the cover burden is closely, working efficiency is high and oil consumption is lower




Welcome to visit our factory!
Welcome to send inquiry to us!




Model	RT-85	RT-95	RT-105	RT-115	RT-125	RT-135
Dimension(mm)	950*550*560	1050*550*560	1150*550*560	1250*550*560	1350*550*560	1450*550*560
Weight(Kg)	110KG	115 KG	125KG	135KG	145KG	155KG
Working width	850mm	950mm	1050mm	1150mm	1250mm	1350mm
PTO Input Speed	540 r/min	540 r/min	540 r/min	540 r/min	540 r/min	540 r/min
Number of blades	16	16	20	24	28	32
Power Required	15-25HP	15-25HP	15-25HP	20-30 HP	20-30 HP	20-30 HP
Packing size(mm)	1060*650*660	1160*650*660	1260*650*660	1360*650*660	1460*650*660	1560*650*660
