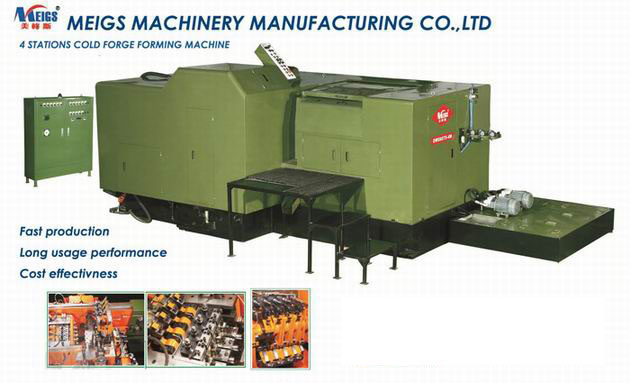

Product Description
The main body of machine is made by high quality host casts to ensure that whole machine can keep good and last longer. All the moving parts are made by the best material to ensure the machine life.
The key parts are made by numerical control machine and CNC.
We use famous hydraulic components and pneumatic components to ensure the stability of machine and the force lubrication systems make every moving part always running under a good lubrication environment.
The major motor controlled by frequency converters and the driven system adopted pneumatic clutch device and pneumatic brake device.
The electric control system adopted PLCS which can ensure the whole machine always work in a normal way and auto deal with different kinds of failure.
The whole machine adopted seal completely design which can improve thesafety and make the work environment more cleanly.
|
SPECIFICATION/MODEL |
DW06050-3M |
DW08075-4M |
|
Die number |
3 |
4 |
|
Max Cut-Off Dia. (mm) |
8mm |
10mm |
|
Max Cut-Off Length(mm) |
70mm |
105mm |
|
Max Product Length (mm) |
50mm |
75mm |
|
Min Product Length (mm) |
12mm |
16mm |
|
Max Knockout Dis. (mm) |
60mm |
90mm |
|
P. K. O |
13mm |
20mm |
|
RAM Stroke |
120mm |
170mm |
|
Cut-Off Die Dia. (Dia x Len) |
28x46mm |
35x56mm |
|
Main Die Dia. (mm) |
50x65mm |
60x105mm |
|
MainDie CenterDis. (mm) |
60mm |
87mm |
|
Punch Die (Dia x Len) |
40x80mm |
45x110mm |
|
Forging Load |
40tons |
60tons |
|
Max Output (pcs/min) |
300 (pcs/min) |
240 (pcs/min) |
|
Major Motor (HP) |
15hp |
25hp |
|
Lubricate Motor (HP) |
2/3hp |
1hp |
|
Cooling Motor (HP) |
2/3hp |
1hp |
|
Net Weight (kg) |
6000kg |
12000kg |
