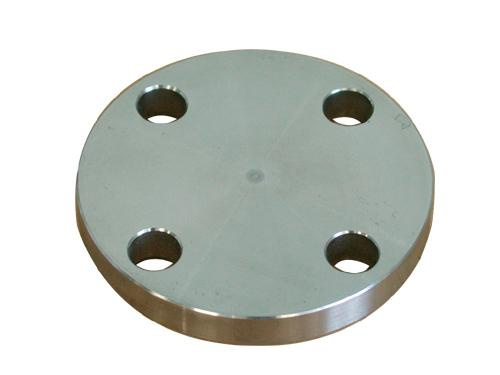

Figure 8 Blind Flange, Stainless Steel Spectacle Blind Flange

Figure 8 Blind Flange, Stainless Steel Spectacle Blind Flange
Price: US $ 0.9-1000/Piece
Trade Terms: FOB,CIF,DDP
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weld Neck Flange,Wnrf Flange,Welding Nec: Weld Neck Flange,Wnrf Flange,Welding Neck Raise Fa
Material: Stainless Steel
Type: Welding Flange
Standard: Ks,API
Manufacturing Way: Forging

Product Description


Spectacle Flange  figure 8 blind flange

A spectacle blind - also known as a figure-8 blind - is generally a piece of metal that is cut to fit between two pipe flanges and usually sandwiched between two gaskets. A spectacle blind is often made from two metal discs that are attached to each other by a small section of steel. The shape is similar to a pair of glasses or "spectacles" - hence the name spectacle blind. One end of the blind will have an opening to allow flow through the pipe during operation and the other end is solid to block flow during maintenance. They are generally installed as a permanent device to separate process piping systems."

Size

Spectacle flange:1"-24"
DN25-DN600

Pressure

America Series:Class 150 ,Class 300, Class 600, Class 900A ,Class 1500,Class 2500.
Europe Series:PN2.5,PN6,PN10,PN16,PN25,PN40,PN63,PN100,PN160,PN250,PN320,PN400.

Flange Facing Types

America Series:Flat face(FF),Raised face(RF),Tongue(T),Groove(G),Female(F),Male(M),Ring type joints face(RJ/RTJ)
Europe Series:Type A(Flat Face),Type B(Raised Face),Type C(Tongue),Type D(Groove),Type E(Spigot),Type F(Recess),Type G(O-Ring Spigot),Type H(O-Ring Groove)


Material

Carbon steel: ASTM A105,ASTM A105N,GB 20,C22.8.
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70

Standards

ASME ANSI B16.5,ASME ANSI B16.47.
API 605,API 6L.
MSS SP 44
CSA Z245.12
EN1092-1,EN1759-1.
DIN2573,DIN2576.
BS1560,BS 4504,BS 10.
AFNOR NF E29-200-1
ISO7005-1
AS2129
JIS B2220
UNI 2276. UNI 2277.UNI 2278 .UNI 6089 .UNI 6090

Industrial Processes

Die forging,Machining

C&N is a  professional manufacturer of steel forged flange in China,

Spectacle Blind flange,Figure 8 Flange,Stainless Steel Spectacle Blind flange,


Our production scope:
ASTM/ASME/ANSIB16.5, B16.47, ASME/ANSIB16.48 flange
Weld neck flange,WNRF Flange,Welding neck raise face flange,

Size 1/2"-120" (DN15-DN3000)
Pressure: Class150-Class2500

Facing RF/FF / RTJ


Standard: ASTM/ASME/ANSIB16.5, ASME/ANSI B16.3and B16.47, ASME/ANSIB16.42, JIS/KS (5K, 10K, 16K, 20K), DIN2633, DIN2634, DIN2635,EN1092,BS4504,AWWA C206,API 6A ,Customized drawings welcomed

stainless steel :A 182 F 304/304L/316/316L/321/347, Duplex F51/F53/F44/F55/F60/F61
Alloy steel :STM A694/ A694M F42/F46/F52/F56/F60/F70,A182  F5,F9,F11,F22
Carbon steel:ASTM A 105, ST37.2   A 350 LF1, LF2, LF3,API 6A AISI 4130

Inspection: In house and third party


Document: MTC Comply with EN10204 3.1 can be provided prior to shipment



Material
stainless steel :A 182 F 304/304L/316/316L/321/347, Duplex F51/F53/F44/F55/F60/F61
Alloy steel :STM A694/ A694M F42/F46/F52/F56/F60/F70,A182  F5,F9,F11
Carbon steel:ASTM A 105, ST37.2    A 350 LF1, LF2, LF3,API 6A AISI 4130
StandardASTM/ASME/ANSIB16.5, B16.47, ASME/ANSIB16.48, JIS/KS (5K, 10K, 16K, 20K), DIN2633, DIN2634, DIN2635,EN1092,BS4504,AWWA C206,API 6A ,Customized drawings welcomed
Size1/2" - 120 " (DN15-DN3000)
PressureClass150-Class2500 JIS 5k-30k DIN 6bar-40bar
Type slip on flange, Weld Neck Flange Threaded Flange Blind Flange,  Orifice Flange socket weld flange, Spacer Ring, Paddle, Spectacle Blind Flange
Surface Treatment Surface galvanized, antirust coating, Epoxy & FBE Coating,protected with plastic caps
PackingPallet/Wooden case(Fumigation free)
CertificateISO9001,EN10204 3.1 MTC
Quality control In house and third party

C&N Industrial group limited is a leading manufacturer of steel pipef itting, flange products in China With 10 years in pipeline fields both manufacturing and trading. We have been supplying high quality piping material to our customer all over the world.

Our production scope:

Butt weld Fittings:

Standard: ASME B16.9 16.28/MSS SP-43/DIN 2605/JIS B2311/ 2312

Elbows(45Deg, 90Deg, 180Deg), Tee(Equal&Reducing), Cross, Reducer, Cap, olet, etc

Forged fittings: THREADED/SOCKET WELD

ASME B16.11, BS3799, JIS B2316, MSS-SP-79, MSS-SP-83

ELBOW, TEE, CROSS, UNION, COUPLING, CAP, BOSS, BUSHING, OUTLET, INSERT

Flanges: ASME/ANSI/API JIS, DIN, EN/BS

Welding Neck, Slip on, Threaded, Socket Welding, Blind, Orifice,

We are also offering our customer a total soluation for the whole piping material packages

Which includes, stainless steel pipes, carbon steel pipes, valve, gasket, bolts etc.

For further information about our company and products, please visit our website, and please do not hesitste to drop us a mail for any inquiry.
