Five Axis Horizontal Boring and Milling CNC Machine Tool
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal |
| Prod Model: |
HBM-130T3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Wight: |
26000kg |
| Rotary Table Dimensions: |
1440*1600 |
| Nc System: |
Fanuc |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Processing Precision: |
0.01mm |
Product Description

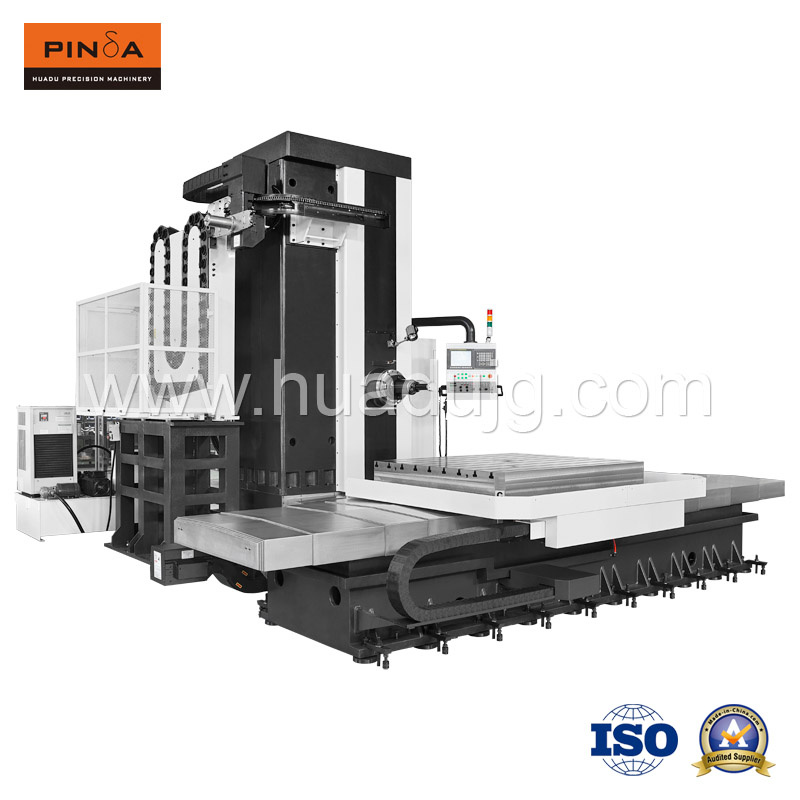

Five Axis Horizontal Boring and Milling Machine CenterHigh Torque,High Precision,High RigidityHigh Torque·Spindle motor 37(continuous)/45(30min) KW super power.
·Maximum torque output 2500Nm (260kgf-m),the highest specifications for this class.
·The nose type spindle head can be close to the workpiece,which is suitable for heavy cutting.
·Rotary table can carry 10000-25000kg.
·Z axis can be continuously subjected to the axial load of 2000kgf,to ensure high torque and high speed to provide high speed to provide high cutting force.

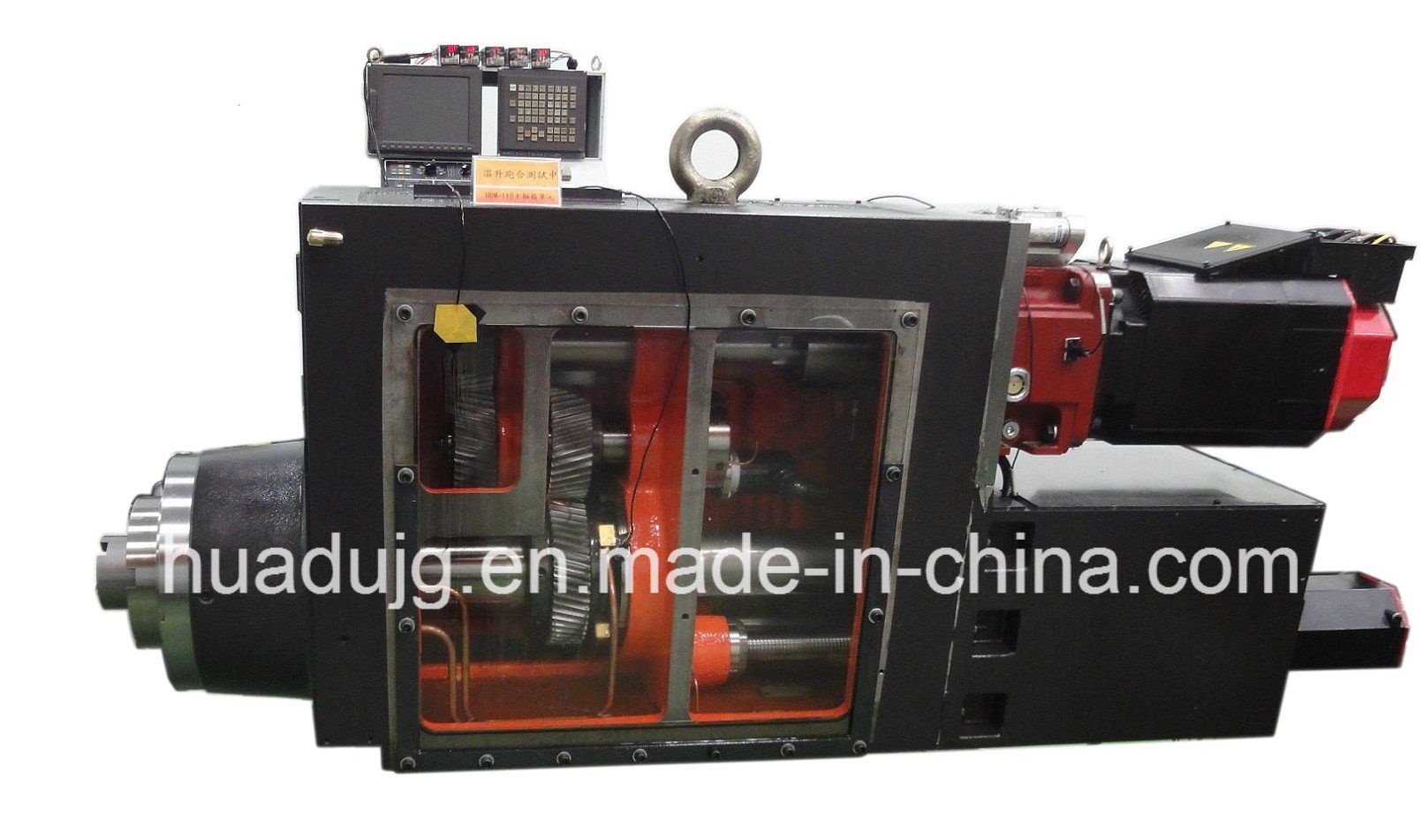

High torque gear headstockHigh Precision·Spindle bearing with oil mist lubrication ,surrouding and with the tubing jacket cooling design avoids thermal displacement problems.
·The flange portion of the spindle motor jacket cooling using tubing.
·Spindle with a special nitriding treatment ,used for many years and no wear.
·X/Y-axis rail screw and motor using Derect-drive without backlash mechanism.
·No overhanging phenomenon when the table moves.High Rigidity·Casting structure composed of stability,strong vibration resistance and strong senior cast iron with crch-type structure of high rigidity.
·Column resistance to bending ,torsional rigidity enhance 1.7 times,in the uppermost end Y-axis travel can also be stable machining.
·The combination of the nitride,cryogenic(-190ºC) spindle and the high precision,high rigidity spindle bearings ,can play the best long-term performance.

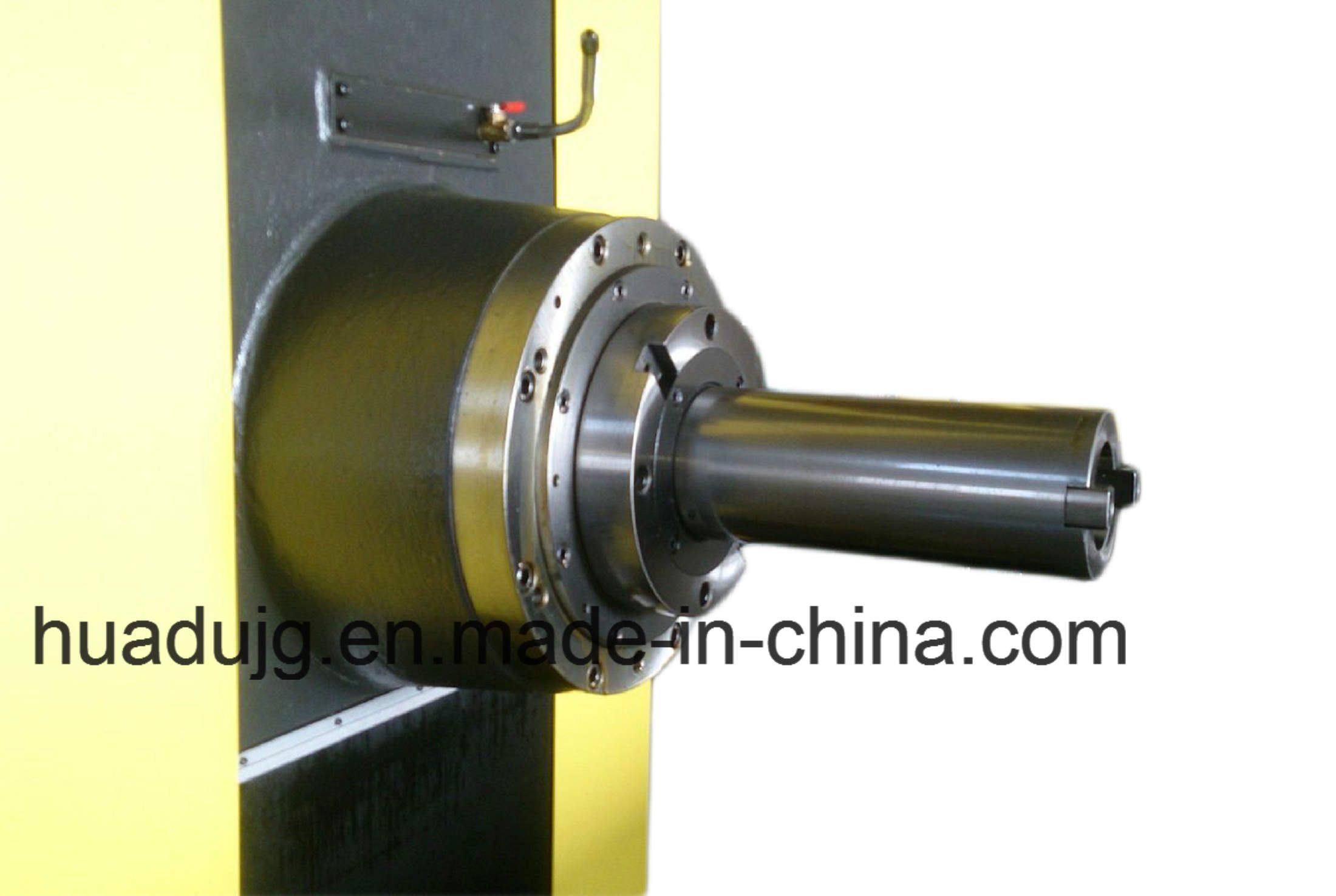

Precision rotary table(double worm)HEADBoring axis adopts Germany imported materialSACM-645,after nitrogen treatment hardness up (HS100°±10°), and increase the wear resistance by streching cryogenic (-190ºC)aging treatment; spindle can be extended to 500-700mm long,suitable for deep processing.COLUMN(Patented Structure)High quality Meehanite cast iron ,the structure of high stength arch bridge is used in the internalstructure of the column.To increase the rigidity of the column to 27%,two electric furnace failure and vibration failure,to ensure that the seismic and long-term no deformation.

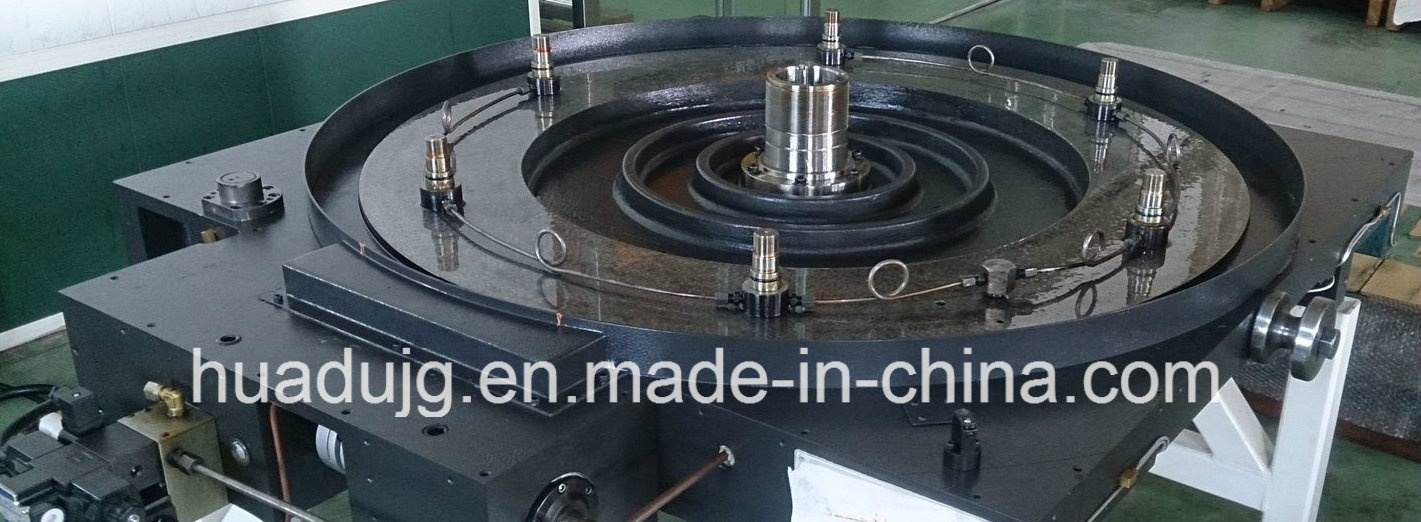

ROTARY TABLE(Patent)All-area support of hydraulic fracturing design,unique twin-turbo without backlash drive,six columns tightening force at any angle up to 13500kg/cm²,cylinder lock with 90-degree pin alignment.Specification
| HBM-110T2 | HBM-110T3 | HBM-130T3 |
| Travel |
| X/Y/Z Axis Travel | 2800/1800/1500mm | 3000/2100/1500mm | 3000/2100/1500mm |
| W-axis diameter/peojecting | 110/500mm | 110/500mm | 120/700mm |
| Spindle center to table | 0-1800mm | 0-2100mm | 0-2100mm |
| Line Guideway |
|
|
|
| Table |
| Worktable size | 1440mm*1600mm | 1440mm1600mm | 1440mm*1600mm |
| Max.loading of worktable | 8000kg | 8000kg | 8000kg |
| Degree Minimum division | 0.001° | 0.001° | 0.001° |
| Spindle |
| Spindle taper/Rivet | BT50-45° | BT50-45° | BT50-45° |
| Power of spindle motor | 22/26 | 22/26 | 22/26 |
| The number of revolution and gear | Full gear 2500 continuous Variable Speed |
| Fast Process |
| X/Y/Z Axis Rapid Feed Rate | 10000mm/min | 10000mm/min | 10000mm/min |
| B Axis rotation speed | 1r/min | 1r/min | 1r/min |
| W Axia Rapid Feed Rate | 4000mm/min | 4000mm/min | 4000mm/min |
| Min.set unit & moving unit | 0.001mm | 0.001mm | 0.001mm |
| Procesion |
| Positioning accuracy(JIS) | ±0.003/300 | ±0.003/300 | ±0.003/300 |
| Repeatability accuracy(JIS) | ±0.003 | ±0.003 | ±0.003 |
| Tool Magazine |
| Tool magazine | 60 | 60 | 60 |
| Electric |
| Standard Control System | FANUC 0IMD | FANUC 0IMD | FANUC 0IMD |
| Feed Motor | 7,7,7,4,4KW | 7,7,7,4,4KW | 7,7,7,4,4KW |
| Power capacity | 70KVA | 70KVA | 70KVA |
| Size |
| Machine Height | 3800mm | 4100mm | 4100mm |
| Area Covered | 7500mm*7800mm | 8500mm*7800mm | 8500mm*7800mm |
| Machine Weight | 26000kg | 26000kg | 32000kg |
