| Prod Model: |
flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| API: |
5000psi, 10000psi, 15000psi |
| Material: |
Alloy Steel |
| Type: |
Threaded Connection Flange |
| Standard: |
API 6A |
| Manufacturing Way: |
Forging |

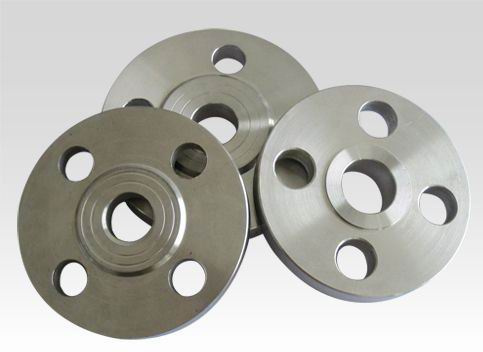

Product Description
Type
Weld Neck, Slip-On, Blind, Socket Weld, Lap Joint, Threaded, Orifice Flange, Swivel Flange, Spectacle Blind, etc.Size
1/2"-72"
Class
150#, 300#, 400#, 600#, 900#, 1500#, 2500#
Specification
Carbon Steel ASTM A105/A694 F42/46/52/60/A350 LF2
Stainless Steel ASTM A182 F304/304L/316/316L
Alloy Steel ASTM A182 F1/F5/F9/F11/F22/F91/etc.
Duplex stainless steel ASTM A182 F51/F53/F55/F60
Nicke alloys Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni 90/10, 70/30
Forged Steel Flanges:
* ASME/ANSI B16.5: WELDING NECK FLANGE, SLIP-ON FLANGE, BLIND FLANGE, HIGH HUB BLIND FLANGE, SOCKET WELD FLANGE. LAPJOINT FLANGE, THREADED FLANGE. RING TYPE JOINT FLANGE.
Pressure Class: 150, 300, 400, 600, 900, 1500, 2500
* ASME/ANSI B16.47(SERIES A & B): WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class: 75, 150, 300, 400, 600, 900
* ASME/ANSI B16.36: (ORIFICE FLANGES) WELDING NECK FLANGE, SLIPON FLANGE, THREADED FLANGE.
Pressure Class: 300, 400, 600, 900, 1500, 2500
* ASTM/ANSI B16.48: ( Figure-8 blanks)
Pressure Class: 150, 300, 400, 600, 900, 1500, 2500
* MSS SP44: WELDING NECK FLANGE, BLIND FLANGE.
Pressure Class: 300, 400, 600, 900
* API 6A: WELDING NECK FLANGE, THREAD FLANGE, BLIND FLANGE.
Pressure: 2000Psi, 3000Psi, 5000Psi, 10000Psi, 15000Psi, 20000Psi, 25000Psi
* Materials Includes:
> Carbon Steel: ASME SA105N
> Low Temperature Carbon Steel: ASME SA350 LF2
> High Strength Steel: ASME SA694 F42/46/52/56/60/65
> Stainless Steel: ASME 304/304L, 316/316L
> Duplex Stainless Steel: ASME SA182 F51
> Nickel alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
CHANCE DOOR INTERNATIONAL specializes in the supply of equipment and service solutions to the international oil and gas industry. We guarantee quality goods, competitive price, and timely delivery.
Our range of equipment and service solutions include;
Rig Equipment and tools, Service and spares
Wellhead: Annular & RAM type BOP, Chrimstmas Tree, Manifold, Valves & parts under API Standard
Oilfield associated services
Chemicals
Laboratory supplies
Safety products
CHANCE DOOR International has the personnel and experience to ensure that our Rig and equipment packages are manufactured to international standards, and can start up and operate with maximum uptime in the field. With a long history of operating and maintaining onshore and offshore rigs our personnel are well equipped to assist our customers optimize their rig packages to save operational time during drilling and moving activities.
Manufacturing
Through experience, CHANCE DOOR International has established a list of approved vendors that have all the relevant API & ISO certification required as well as proven commitment to quality. During manufacturing of equipment packages CHANCE DOOR International are on site, contributing to the quality of the end product, and its ability to perform in the field. In addition CHANCE DOOR International has developed its own acceptance testing standards that exceed conventional Factory Acceptance Testing.
All of our efforts during manufacturing are aimed at provided the Customer with the peace of mind that when the equipment arrives on location, it is ready to go to work, and it will perform reliably.
CHANCE DOOR International provides comprehensive after sales service, including equipment installation and rig up support, operational training, warranty interface, and supply of technical service and spare parts.
