Flatbed Die Cutting and Creasing Machine
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
ML Series 750,930,1140,1200,1500,1800,2500,3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Voltage: |
Custom Made |
| Machine Color: |
Grey or as Per Rewuest |
| Machine Size: |
as Per Request |
| Heating Plate: |
Optional |
| Automatic Grade: |
Semi-Automatic |
| Placing Form Of Template: |
Vertical |
| Imprinting Type: |
Rotary Platen |
| Application: |
Stickers Products |
| Die Cutting Tool: |
Steel Blade |
Product Description

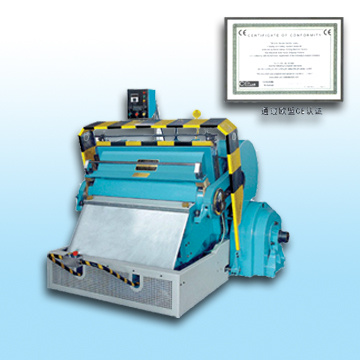

ML serial flatbed die cutting and creasing machine or die-cutter
It is also known as platen presses, are special equipments for die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic sheet and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries. ML series machinery have been accepted by the customers from home and abroad due to their reliable performance, high quality, low price and our good service.
We have ML-720(ML-750), ML-930(PYQ203C), ML-1040, ML-1100, ML-1200, ML-1300, ML-1400, ML-1500, ML-1600, ML-1800 ,ML-2000 ,ML-2500 and ML-3000 model.
Features:
1. Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing.
2. Flywheel is with big moment of force and large pressure.
3. High strength due to whole casting by using high quality material for machine body.
4. Single plate electromagnetic clutch is sensitive and reliable.
5. With functions of single, continuous and opening delay operation, delay range is adjustable.
6. Operating position is reasonably designed, moving-bed can be open to its optimum.
7. Central lubrication system guarantees fine lubrication and reduce friction.
8. Safety system is reliable.
9. With die plate clamp system suitable for different size plate, it is very easy and quick to load anf unload the plate.
10. Easy to opeartion and maintenance
11. With or without CE mark available suitable for different countries.
| Model | Inner chase size | Working speed | Max.rule length | Net weight | Power | Overall dimension(L*W*H) |
| ML750 | 750*520 | 25 | 15M | 2000kg | 2.2kw | 1260*1350*1280mm |
| ML930 | 930*660 | 23 | 25M | 3200kg | 4kw | 1850*1650*1950mm |
| ML1040 | 1040*720 | 23 | 30M | 4000kg | 4kw | 1800*1680*1660mm |
| ML1100 | 1100*800 | 23 | 32M | 4500kg | 4kw | 2100*1970*2100mm |
| ML1200 | 1200*830 | 20 | 32M | 4500kg | 5.5kw | 2100*2000*2100mm |
| ML1300 | 1300*920 | 20 | 40M | 5600kg | 5.5kw | 2020*2420*2150mm |
| ML1400 | 1400*1000 | 18 | 45M | 6200kg | 7.5kw | 2010*2400*1930mm |
| ML1500 | 1500*1050 | 18 | 48M | 7500kg | 7.5kw | 2050*2620*2200mm |
| ML1600 | 1600*1250 | 16 | 50M | 12000kg | 11kw | 2720*2340*2130mm |
| ML1700 | 1700*1400 | 16 | 50M | 14500kg | 11kw | 2200*2800*2130mm |
| ML1800 | 1800*1400 | 16 | 52M | 15500kg | 11kw | 2240*2800*2130mm |
| ML2000 | 2000*1400 | 16 | 58M | 16500kg | 15kw | 2270*3100*2150mm |
We have the pleasure of introducing ourselves to you as a professional manufacturer and exporter specializing in various printing and packaging machinery & materials, and machine parts in China for more than 16 years,
We have our own production bases to produce printing and packaging machinery, and materials etc. We supply industrial machine from single machine to turn key projects, from existing products to producing machine according to buyer's drawing and requirements. Particularly it is worth mentioning that we have a professional team who has been in printing and packaging industry for many years, this makes us in such an advantage that we can easily supply extensive machines for printing and packaging industry at very attractive prices. As it maybe not easy to contact and communicate with different factories, furthermore, you are difficult to know the reputation and credit of such factories, most of them are not authorized for export directly. Even for those who have approved to a direct export, we can do better in prices and services. All our products are under quality warranty and our professional staff will provide best service for you. Through our unremitting efforts in developing overseas market, we have won good reputation among customers worldwide. Therefore lots of manufacturers appointed us to be their sole export representative, we can get best price and prompt service to our customers.
We feel confident you will agree after first cooperation, that our products are both good in quality and competitive in price.
Our printing and packaging machines including:
1. Series semi or fully automatic die cutting and creasing machines
2. Automatic hard cover making machines or automatic case makers, rigid gift box machines
3. Series slitter rewinders, paper sheet cutting machine
4. Complete lines for making plastic bag: Rotogravure printing machine, dry laminating machine, various bag making machine, film blowing machine, flexographic press.
5. Multi-function coating machine for making various adhesive tapes and special materials.
6. Label making machinery such as flexo printing machine, label die cutting machine etc.
7. Automatic filling, capping, labelling machines.
8. Screen printing machines, hydraulic laminating machine, UV coating machine
9. Strapping machine, vacuum packaging machine, Auto-carton sealer, heat shrink packing machine, desktop vacuum packaging machine, pad printing machine, hand film sealer, pallet stretch film shrink wrapper.
10. Paper core or tube making machines
11. Paper cup, paper bowl forming machines, cheese box forming machine.
12. Machine parts such as rubber roller, rotogravure printing cylinder, tension controller, colour register system, still picturing video system, air shaft, EPC, LPC, magnetic powder clutch and brake, meter counter, electric shock device, viscosity controller etc.
13. Plastic thermoforing machine
14. Paper cutter, automatic folder gluer, embossing machine, automatic flute laminating machine etc. And other postpress equipment.
15. Printing&packaging materials.
16. Office Equipments: Paper shredder, paper cutter, laminator, binding machine, puncher, stapler and stationery.
17. Corrugated carton making machines.
18. Window & door assembling machines(AL, PVC).
Please don't have any hesitation to contact us for more information.
We are looking forward to cooperating with friends from all around the world!
