Flexible Metal Hose Forming Machine

Flexible Metal Hose Forming Machine
Price: US $ 20000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: DN50-300
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size Range: 2" Till 12" Metal Hose
Material: Stainless Steel 304,321,316L
Forming Speed: One Convolution Per 8-12 Seconds
Forming Method: Water
Pressure: 10MPa
Machine Outder Dimensions: 12m*1.6m*1.7m
Weight Of The Machine: 3000kgs
Forging Forming Method: Hydraulic System Forming

Product Description

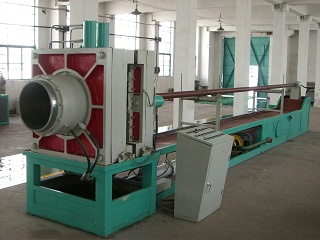

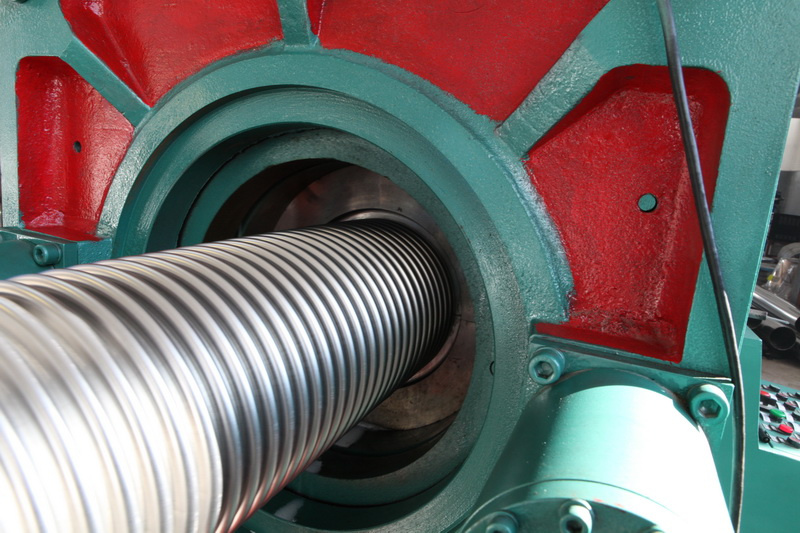

Flexible Metal Hose Forming Machine
Diameter: DN50-300mm

No. of layers: single or double layers
Type of the bellows: annular bellows

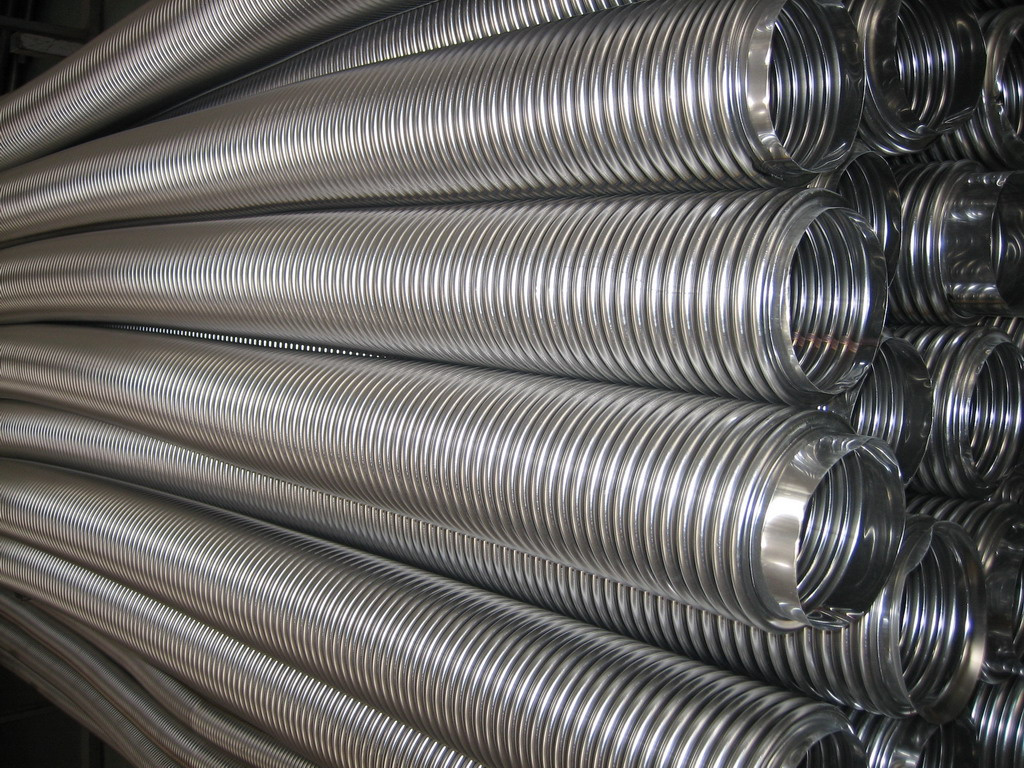

Applications: for auto exhaust bellows, flexible metal hoses, and expansion joints
Control: PLC control
Length: ≤7500mm
Expanding medium: emulsified liquid
Forming speed:5-10seconds per convolution


DNActual Outer diameterThicknessPitch distance
(mm)
Max.height of convolution
Single layerdouble layer
 DN50Dia.60.30.50.30×299
 DN65
Dia.76.1

0.60.35×21212
 DN80Dia.89.00.70.40×21515
 DN100Dia.114.30.80.50×21817
 DN125Dia.140.010.60×21921
 DN150Dia.168.31.20.70×22023
 DN200Dia.219.11.30.80×22225
 DN250Dia.273.11.51.10×22530

Wuxi Longterm Machinery is a professional supplier of all type of industrial equipment, flexible products, etc...With many years of history, the main items are as follows:

I. Production Line of LPG Gas Cylinder

Including circumferential seam welding machine

Longtitudinal seam welding machine

Hydraulic leakage test

Automatic trimming machine

Valve seat welding machine

Foot ring welding machine

Protection enclosure welding machine

End dish shaping machine

Annealing furnace

Shot blasting machine

Sandblast machine

2. Production line for Solar Water Tank

Including pressurized and non-pressurized solar water tank manufacturing line

The main equipment are as follows:

Circumferential seam welding machine

Longitudinal seam welding machine

Pipe fitting welding machine

Hole punching machine

Grooving machine

3. Production line for Steel Drum Manufacturing Line

Sheet rolling machine

Spot welding machine

Longitudinal seam welding machine

Grooving machine

Leakage testing machine

Flanging machine

Sealing machine

4. Flexible metal hose/ Expansion joints manufacturing machineries & products

-expansion joint

- flexible metal hoses

--vacuum bellows & hoses

- hose & pipe fitting

-welding seamer

-bellow forming machine

Mechanical bellow forming machine,

Mechanical hose forming machine

Hydro bellow forming machine

-flexible metal hose making machine

-hydraulic metal hose making machine

-EGR tubes

-EGR tube making equipment

-Braiding Machine

-camlock coupling

The above products have been exported to Ukraine, USA, Japan, Turkey, India and Egypt, etc...

In China. We are capable total in-house design, manufacturing & testing capabilities.
