| Prod Model: |
8mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Flexible Shaft Inner Core |
| Dia Of Shaft: |
5mm/6mm/7mm/8mm/10mm |
| Direction Of Twist: |
Levorotation and Dextrorotation |
| Use For: |
Concrete Vibrator Shaft |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Soft Wire Shaft |
| Shaft Shape: |
Real Axis |

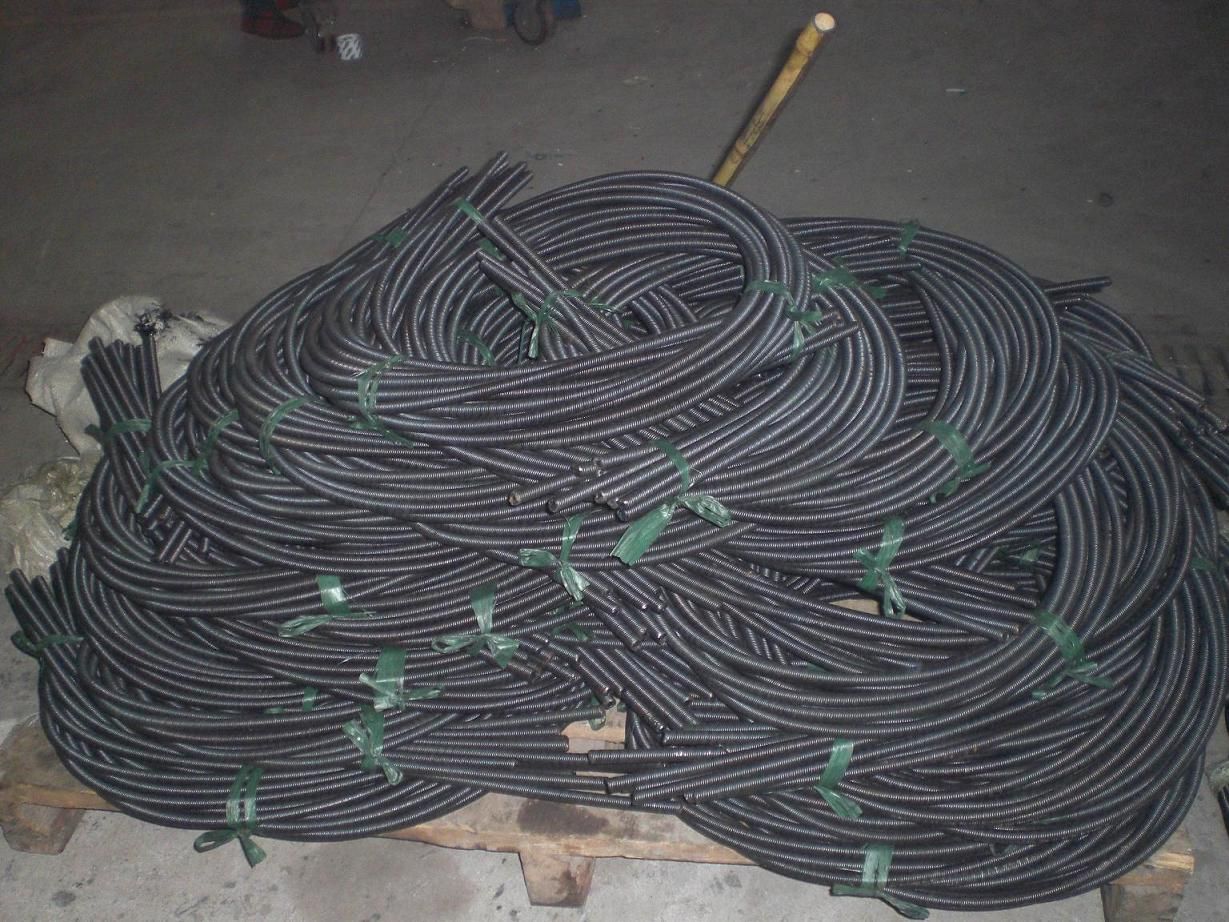

Product Description
Flexible Drive Shaft 8mm/9mm/10mm/12mm/13mm/14mmDescription:Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function:Smooth, flexible, highly-elastic, and wear resistant
Technical Parameters:| Diameter (mm) | Tolerance (mm) | Number of Layers | Loading Moment (N · m) (Sample 500mm Long) | Weight (kg/ 100m) |
| 2.0 | +0.02 -0.02 | 3/5 | 0.8 | 1.8 |
| 2.5 | 3/5 | 1.0 | 2.8 |
| 3.2 | 3/5 | 1.3 | 4.6 |
| 3.8 | 3/5 | 1.5 | 6.5 |
| 5.0 | +0.00 -0.05 | 3/4/5 | 1.8 | 11.3 |
| 6.0 | 3/4/5 | 2.4 | 16.2 |
| 6.5 | 4/5/7 | 2.9 | 18.7 |
| 8.0 |
| 5/7 | 7.5 | 28.8 |
| 10 | 4/5/6 | 22.5 | 45.5 |
| 12 | 5/7 | 39.0 | 66.5 |
| 13 | 5/7 | 50.5 | 77.5 |
| 16 | 5/7 | 115.0 | 114 |
| 18 | 5/7 | 160 | 145 |
| The flexible shafts not listed in the chart can be customized |
Ningbo Kezhuwang Machinery Co., Ltd. is located in Yinzhou District, Ningbo City, Zhejiang Province. Enjoying the geographic advantages, it is easily accessible. The factory is specialized in producing series of vibrating spears and components, concrete vibrators, motors and shapes cutters in all types.
In the recent years, when continued in introducing elitists, the factory has also taken in advanced production equipment and gradually improved its comprehensive developing force. With product varieties continuously enlarging the coverage in construction machinery industry, the factory is now producing complete series of products in different kinds including more than 10 specifications. AS the result of adoption of advanced streamline technology, the products are made in reasonable design, attractive appearance and good stability. The products, certified acceptable by Zhejiang Provincial Bureau of Technology Inspection through sampling inspection, sell well throughout the country at most competitive price with best quality and meanwhile are exported in large quantity, enjoying high popularity and opinion among numerous customers.
Our commitment is to recommend better products at reasonable price with prompt delivery and followed by considerate service just as we have done in the past to further meet the demand of market.
