| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Machine Size: |
16*1.8*1.6m |
| Machine Weight: |
15tons |
| Controlling System: |
Mitsubishi PLC & Converter |
| Operation Language: |
English or as Per Client`S Required |
| Rollers Material: |
No.45 Forged Steel with Hard Chrome |
| Cutter Material: |
Cr12 Mould Steel with Quench Treatment |
| Cutting Style: |
Automatic Hydraulic Cut to Length |
| Shafts For Rollers: |
Grand Twice, ID82mm Solid Steel |
| Machine Tpye: |
Floor Deck Roll Forming Machine |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

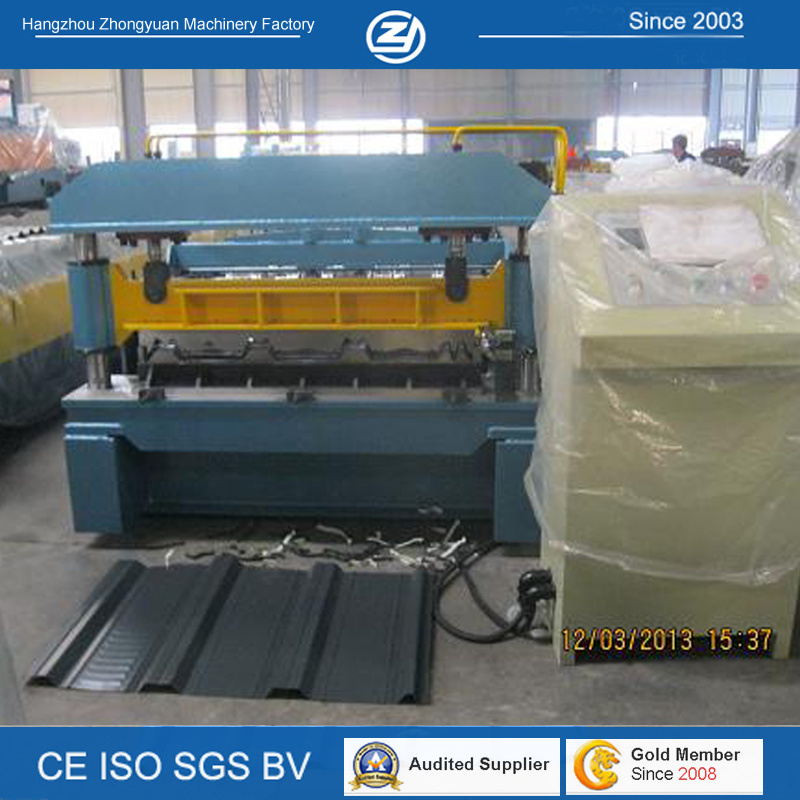

Steel Decking Roll Forming MachineryWhy choose this steel decking roll forming machine.
1. Designed by 15 years experienced R&D members with lifetime seivices
2. Introduced Mitsubishi PLC with touch screen.
3. Need only one worker (minimum) to operate
4. Roller cover with 0.05mm chrome, ensure lifetime>10years
5. Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.
6. Product cut-to-length.
Spec. of steel decking roll forming machine
1. Size: about 16*1.8*1.6m (L*W*H)
2. Weight: About 15 tons
3. Forming Speed: 10-15m/min.
4. Power : 380V/3Phase/ 50Hz
6. Main motor power: 11*2Kw(Depend on final design)
Hydraulic station power: About 5.5Kw (Depend on final design)7. Decoiler Max. Capacity: 5000kgs
8. Control system: Mitsubishi PLC with touch screen
9. Cutting length: Cut-to-length
Parameters of steel decking roll forming machine
steel decking roll forming machine |
| Item | Specification |
Raw Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness(mm) | 0.8-1.2 |
| Yield strength(mpa) | 235-345 |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 82mm,processed with cylindrical grinder |
| Forming speed(m/min) | 10-15 |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 11x2KW |
| Total power(kw) | 27.5KW |
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
|

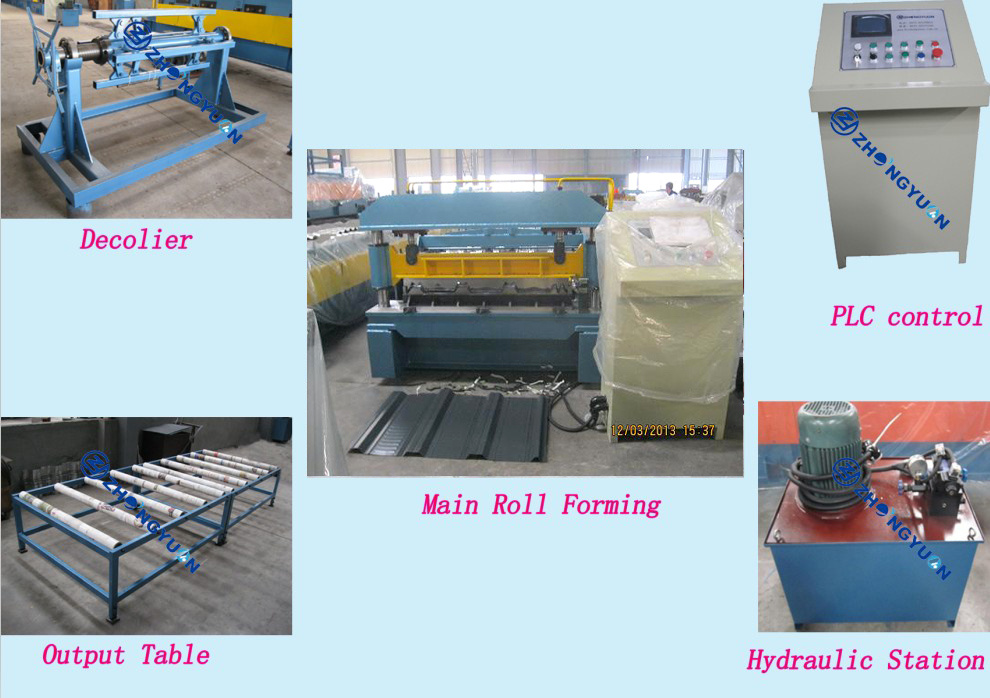

Components of machine
|
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1set
|

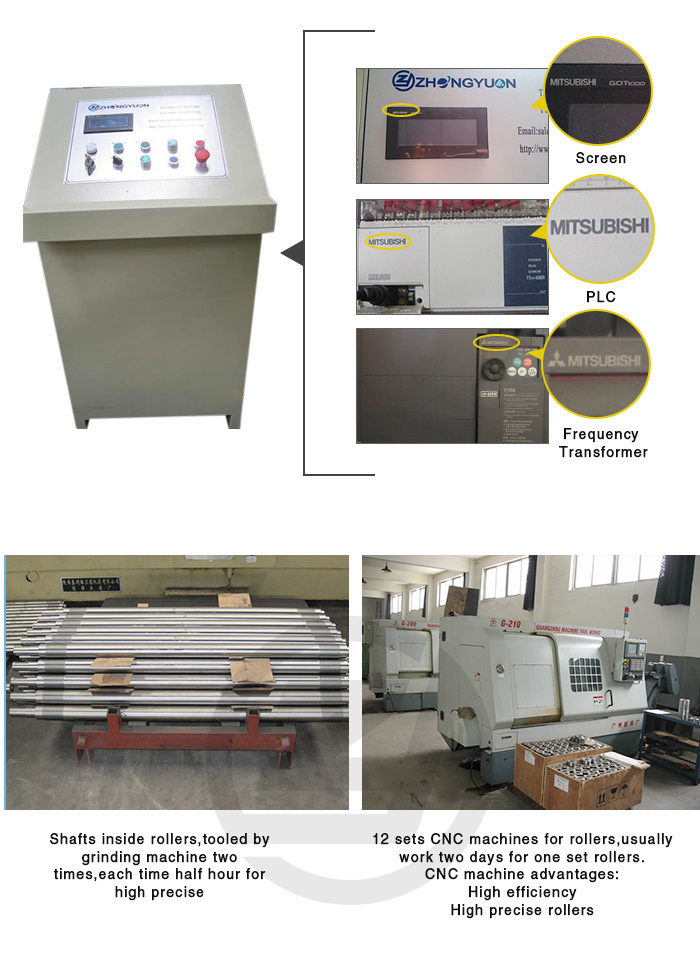

PLC Controller
We customize your machines!
To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
Why us?1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers

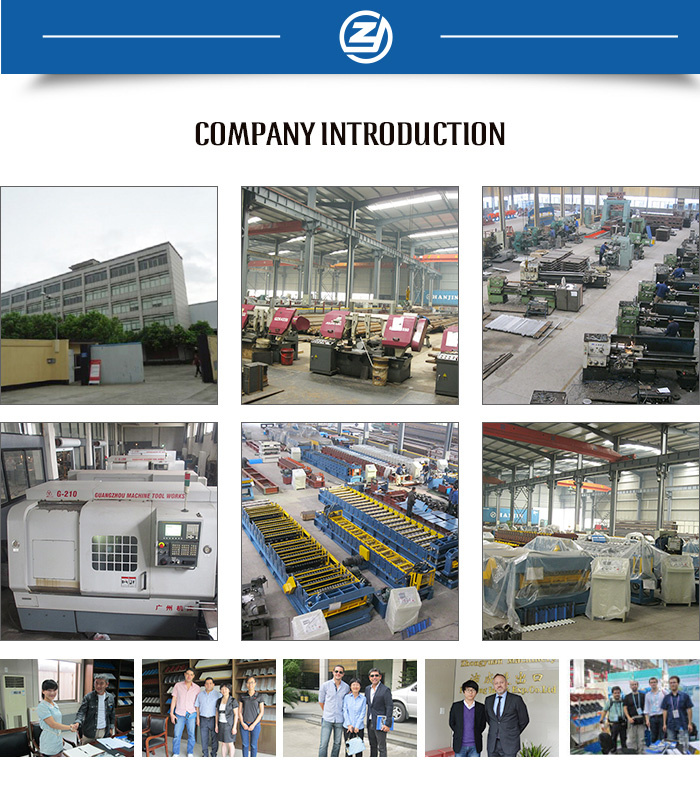

Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
