| Prod Model: |
BNWSB-XX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impeller Number: |
Multistage Pump |
| Working Pressure: |
Middle Pressure Pump |
| Influent Type Of Impeller: |
Double-Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description
Product Description

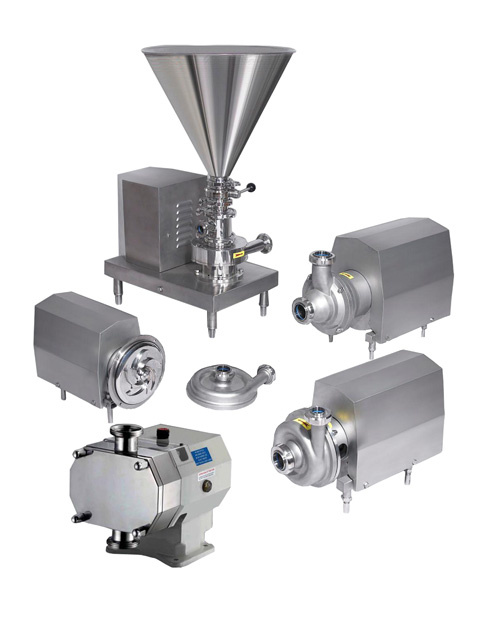

Sanitary Centrifugal Pump
Material:SS304,SS316L
ISO9001:2008
Reliable quality,beatiful surface
Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard:DIN,SMS,JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
Model | Flow(Ton/Hour) | Lift(M) | Power(KW) | Inlet | Outlet |
| FLT03-15 | 3 | 15 | 0.75 | 38 | 32 |
| FLT03-20 | 3 | 20 | 1.1 | 38 | 32 |
| FLT05-24 | 5 | 24 | 1.5 | 51 | 38 |
| FLT05-32 | 5 | 32 | 2.2 | 51 | 38 |
| FLT10-24 | 10 | 24 | 2.2 | 51 | 38 |
| FLT10-32 | 10 | 32 | 3 | 51 | 38 |
| FLT15-24 | 15 | 24 | 3 | 51 | 51 |
| FLT20-24 | 20 | 24 | 4 | 51 | 51 |
| FLT20-35 | 20 | 35 | 5.5 | 63.5 | 51 |
| FLT30-24 | 30 | 24 | 5.5 | 63.5 | 51 |
| FLT30-35 | 30 | 35 | 7.5 | 63.5 | 51 |
| FLT40-24 | 40 | 24 | 7.5 | 76 | 63.5 |
| FLT50-24 | 50 | 24 | 7.5 | 76 | 63.5 |
| FLT50-35 | 50 | 35 | 11 | 76 | 63.5 |
| FLT80-30 | 80 | 30 | 15 | 89 | 76 |
| FLT80-40 | 80 | 40 | 18.5 | 102 | 89 |
Beinuo company established the production foundation in Wenzhou Zhejiang around 30 years ago -is a professional manufacturer in whole-set production equipment of dairy, brewery, water treatment, beverage, ingredient, pharmacy, and also stainless steel tanks and pumps. The product is designed and made meeting with ISO9001 standard and the GMP and FDA standard.
Beinuo possess over 150 employees and 15000 square meter factory building. We engage in developing domestic businesses, as well as actively participating in competitions of the same trades. We serve the local customers with our widest and rapid mode, send you our functional plan and provide our technological pattern and equipment and keep the product quality be up to the international standard.
The union, enterprise and high talent is the base of our success. Our advanced craft in evaporate, extraction and concentration of China traditional drug and reclamation of alcohol and high efficient and energy-saving equipment and the high practice and attractive appearance can improve the production efficiency greatly; The complete equipment for large transfusion and water injection features pleasant appearance and special structure; The injection and material allocation system and extraction & concentration system for China traditional drug and the CIP system can realize the automatic management for production and control.
Since its establishment, Beinuo company has got great achievements, used high science and technology, high quality as its target, adopted the most advanced technological and engineeting levels, uninterruptedly resolved any challenge in production.
Beinuo people are always ready to keep close cooperative relations with customers, let the producers believe our technique and appoint Beinuo as their first selective supplier.
Beinuo people warmheartedly thank you great support and will make great efforts for food sanitary and human health.
