| Price: | US $ 500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Paypal |
| Prod Model: | 4340 steel gear shaft |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 5'' to 500'' |
| Name: | Forged 4340 Steel Step Gear Shaft |
| Certificates: | ISO, Gl and ABS |
| Cncturning: | According to Drawings |
| Load: | Drive Shaft |
| Stiffness & Flexibility: | Stiffness / Rigid Axle |
| Axis Shape: | Straight Shaft |
| Shaft Shape: | Real Axis |
Features:
(2) Shaft: 20# Cold drawn steel, or as request.
(3) Bearing: Single&Double Row Deep Groove Ball Bearing.
(4) Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.
(5) Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
(6) Welding: Mixed gas shielded arc welding end
(7) Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting.
Specitifactions:
Diameter: 50-219mm.
| Product Name | Specification(mm) | Material |
| Forged Round Bar | OD:Φ200-Φ1000 Weight≤18T Length≤12000mm | 18CrNiMo7-6, 42CrMo,34CrNi3Mo, 35CrMo,4330V |
| Forged Hollow Bar | OD:Φ200-Φ1000 Weight≤18T Length≤9500mm | 18CrNiMo7-6, 42CrMo,34CrNi3Mo, 35CrMo,4330V |
| Forged Module | Width≤1000mm | H13, 5CrNiMo, 5CrMnMo,etc |
| Forged Shaft | DiameterΦ80-Φ1000 Length≤12000mm Weight≤18T | 40Cr,45#, 42CrMo, 40CrNiMo,etc |
| Forged Roller | Diameter≤Φ1000mm | 86CrMoV7, 9Cr2Mo, MC3,MC5,etc |
| Forged Ring&Disc | OD≤Φ1500mm Thickness≤500mm | 20CrNi2Mo, 40Cr,42CrMo, 21CrNiMoV47,etc |
Application:
Coal industry, power industry, cement industry, harbor, metallurgy.
Quality warranty
Running resistance factors: Less than 0.02
Radial circular run-out: Less than 0.6mm
Rotating resistance: Less than 1.9N
Axial load: More than 20000N
Axial displacement: Less than 0.25mm
Service life: More than 30000 hours

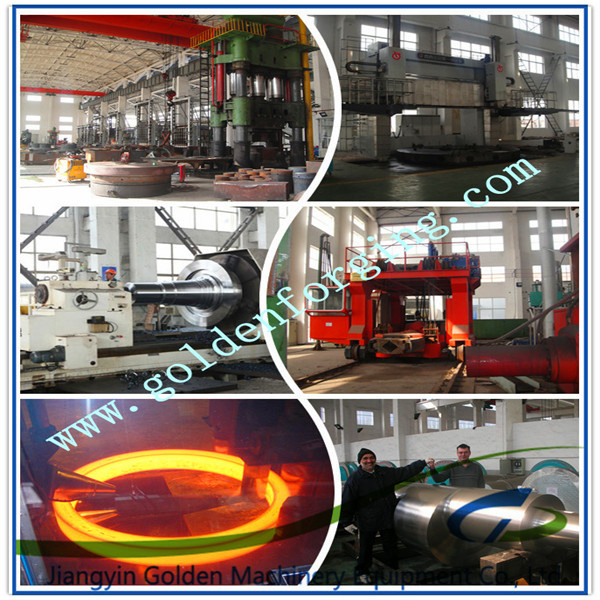

Workshop
