| Prod Model: |
tube sheet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description

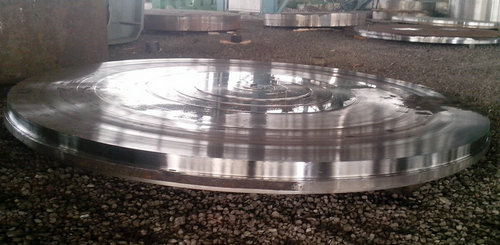

Forged Circle / Blanks / Discs, Tube Sheet Thickness 1500mm, Alloy Steel Forgings 20MnMo
20MnMo, 16Mn, 20MnMoNb Alloy steel Forging
Description:
Disc forging-tube sheet is widely used for pressure vessel, power station and other industries.
The disc forging conforms to the standard of EN, ASTM DIN and JB4730 etc.
The manufacturing equipment is 16~185MN hydraulic press, the forging ratio >4.5, the technical condition is in accordance with the standard of EN, ASTM DIN and JB4730 etc.
The disc forging can be provided as per your drawing or specified requirements.
Smelting Process:EF+LF + VDThe process as follow :Ingot →heat → forging → Heat treatment (Normalizing+ tempering) → Inspection →rough machining→UT→2nd Heat treatment →finishing machining →Inspection
Applications: Disc forging-tube sheet is widely used for pressure vessel, power station and other industries.
Specifications:
Description |
Disc forging |
material |
Alloy steel (20MnMo, 16Mn, 20MnMoNb etc.) |
Material standard |
ASTM or GB/T3077-1999 |
Dimension |
Max.OD: 5000mm
Max. thickness: 1500mm |
Weight |
Max. 150 ton |
Smelting Process: |
EF+LF + VD |
Process |
Ingot→heat → forging → Heat treatment (Normalizing+ tempering) →
Inspection →rough machining→UT →2nd Heat treatment →
finishing machining →Inspection |
UT standard |
EN, ASTM DIN and JB4730 |
Competitive Advantage:
Quality control and management to the whole produce process, including ingot smelting, forging, heat treatment, machining and strictly final inspection prior to delivery.
Excellent product quality and service, competitive price, "in-time" delivery
Tongyu leading products are pipe mould, wind turbine main shaft, heavy forging & casting, ESR ingot, rotor shaft for steam turbine generator, double super critical power plant pipe, ship shafting, NC elevator track planner, and other universal and nonstandard machinery spare parts.
March 8th, 2011, Tongyu was listed in Growth Enterprises Market on Shenzhen Stock Exchange. (Stock Code: 300185) Tongyu Heavy Industry Co., Ltd is a national major innovative and high technology enterprise with many honors such as: China Top 500 Famous Brand Enterprise, the Leading Enterprise of Chinese Industry, the Outstanding Enterprise of Chinese Machinery Industry, the Shandong Star Enterprise of China Patent, the Environment Friendly Enterprise of Shandong, and the Advanced Enterprise of Energy Saving, etc. The TONGYU trademark has been assessed as China Well-known Trademark. Besides many overseas offices in India, Europe, North America, etc, Tongyu Heavy Industry Co., Ltd, By the end of 2013, the company's total assets is 6.8 billion RMB and net assets is 3.5 billion RMB. The company owns 10 subsidiary companies: Yucheng Tongyu New Energy Mechanical Casting Ltd., Yucheng Tongyu Renewable Resources Ltd., Tongyu Mining Investment Ltd., Shandong Xinshang Materials Ltd., Yucheng Baoli casting Ltd, Qingdao Baojian Technology Engineering Ltd., Guizhou Baofeng New Energy Development Ltd., Qingdao Bortome Import & Export Ltd., Changzhou Jinan Metallurgical Equipment Ltd., Jinan Metallurgical science research institute Co., Ltd and Xinyuan Termal Power Co., Ltd; etc. Moreover, Tongyu have opened office in Asia, Europe, North America, etc. The company has built up a national top-ranking complete industrial chain of steel casting and forging production base, a domestically advanced Changzhou complete set of equipment manufacturing base, and another coastal port-vicinity production base in construction. These three production bases indicate that an entire production strategic layout of Tongyu is now taking shape. Adhere to the philosophy of Circular Economy, Environment Friendly, Independent Innovation, and Seek Win-win, the company strives for building itself to be a manufacturing and R&D base, which could provide major products for economic development and national defense, and large high-tech equipment.
