| Prod Model: |
CG1800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
350kg |
| Length: |
1150mm |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Stiffness / Rigid Axle |
| Axis Shape: |
Crankshaft |
| Shaft Shape: |
Stepped Shaft |
Product Description

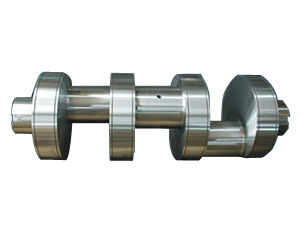

High pressure pump crankshaft
Raw Material
Forged heat treatment steel EN 10083 DIN 42CrMo4 W 1.7225
Manufacturing process & ITP
| Item | Control process | Checking items | Checking ratio/checking way | Inspection standard | documentation |
| 2 | forging | forged bar dimensions | callipers | per raw bar drawings |
|
| 3 | chemical composition analysis | material spec listed in the drawings | once time/furnace | material spec in drawing | chemical composition analysis report |
| 4 | rough cutting | dimensions | self-checking & random checking | per process card dimensions |
|
| 5 | altrasonic detection | forged bar inner defects | 100% checking | per customer tech requirements | altrasonic detection report |
| 6 | heat treatment | hardness | 100% checking | per drawing requirement | hardness report |
| 7 | Mechanical property | The tensile, yield, elongation, impact power, metallurgical low times | once time/furnace | per drawing requirement | Mechanical property report |
| 8 | semi-fine machining | dimensions | self-checking & random checking | per process card dimensions |
|
| 9 | drilling & milling | dimensions | self-checking & random checking | per process card dimensions |
|
| 10 | grinding | imensions | self-checking & random checking | per process card dimensions |
|
| 11 | magnetic detection | appearance defects | 100% checking | per customer tech requirements | magnetic detection report |
| 12 | final inspection | dimensions | 100% checking | per drawing requirement | final inspection report |
| 13 | cleaning & packaging | no damage with the packagings | visual inspection |
|
|
Packaging reference

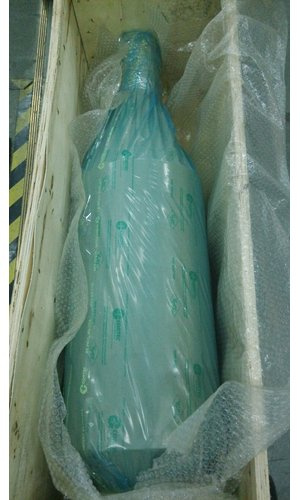

VCI paper & films used for inner packing
